Позиция на иллюстрации
Заводской номер детали
Название детали
500-00147A
500-00147A

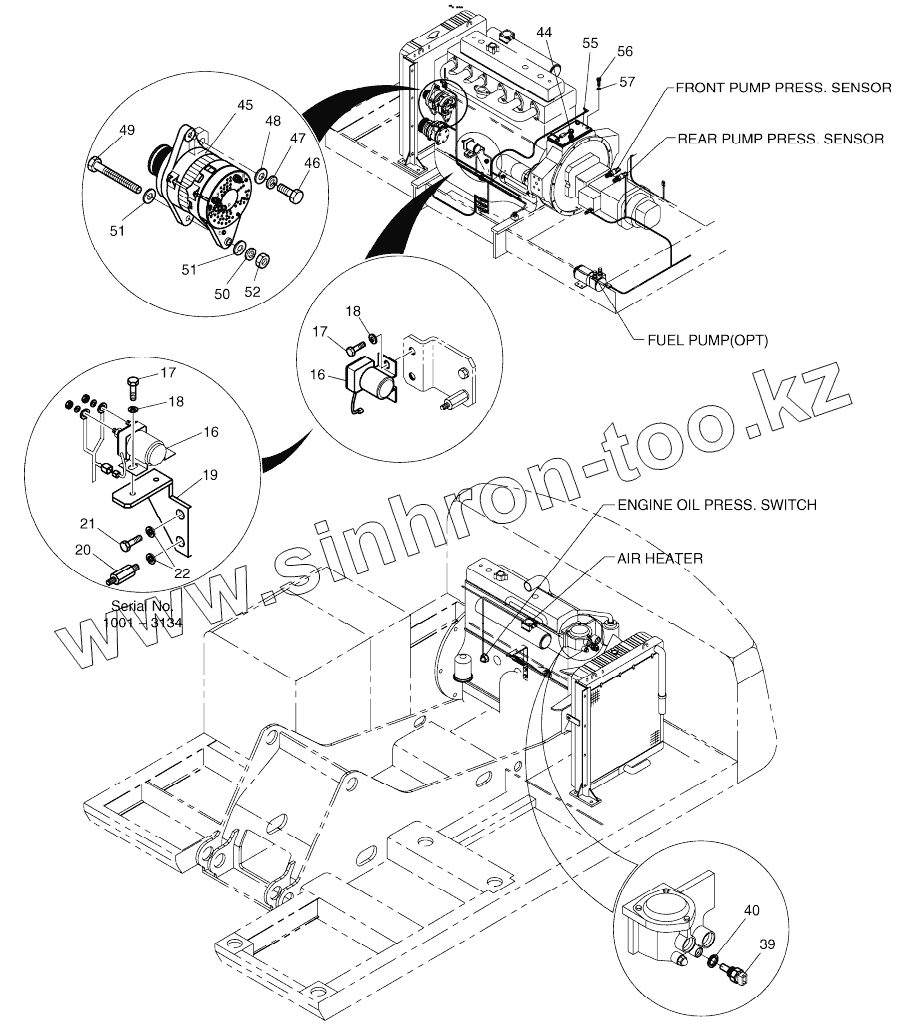

ELECTRIC PARTS(6)-ENGINE
16
544-00007
RELAY;PREHEAT
17
S0504453
BOLT M6X1.0X12
18
S5102303
WASHER;SPRING M6
19
195-01967
Bracket, relay
20
2120-2235
BOLT;STUD M10X1.25X15/M8
21
S0711653
Bolt
22
S5102603
WASHER;SPRING M10
39
2547-9038B
SENSOR;WATER TEMP
40
S8180251
PACKING M16/D22
44
2547-1015
SENSOR;ENGINE SPEED
45
2502-9007B
ALTERNATOR 24V 60A
46
S0760853
BOLT M12X1.25X55
47
S5102703
WASHER;SPRING M10
48
2114-1058D54
WASHER
49
S0562653
BOLT M12X1.75X160
50
S5102703
WASHER;SPRING M10
51
S5010713
WASHER;PLAIN
52
S4012733
NUT M12
55
2197-1793
BRACKET;SPEED SENSOR
56
S0512053
BOLT M10X1.5X25
57
S5102603
WASHER;SPRING M10
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
