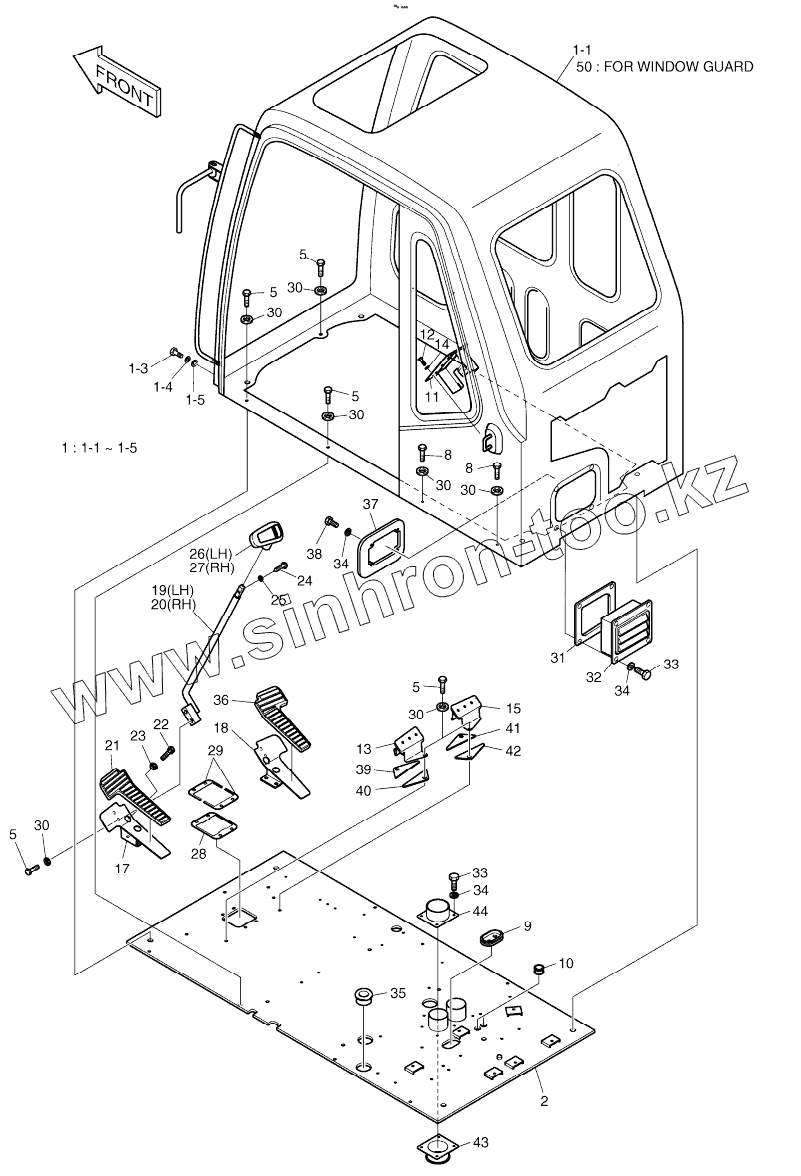

Каталог запасных частей к технике: Doosan S225LC-V. CABIN ASSY
622-00197H
622-00197L
622-00197M
622-00197N
622-00197P
622-00197R
1
1
1
1
1
1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-1
1-3
1-4
1-5
1-5
2
5
5
5
5
5
8
8
9
10
11
11
12
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
30
30
30
30
31
32
33
33
34
34
34
35
36
37
38
39
40
41
42
43
44
50
50
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 622-00197H | 622-00197H | Cabin assy | |
| 622-00197L | 622-00197L | CABIN ASS'Y | |
| 622-00197M | 622-00197M | CABIN ASS'Y | |
| 622-00197N | 622-00197N | CABIN ASS'Y | |
| 622-00197P | 622-00197P | CABIN ASS'Y | |
| 622-00197R | 622-00197R | CABIN ASS'Y | |
| 1 | 622-00297 | CABIN ASS'Y | |
| 1 | 622-00297A | CABIN ASS'Y | |
| 1 | 622-00297B | CABIN ASS'Y | |
| 1 | 622-00297C | CABIN ASS'Y | |
| 1 | 622-00297E | CABIN ASS'Y | |
| 1 | 622-00297H | CABIN ASS'Y | |
| 1-1 | 622-00177J | CABIN ASS'Y | |
| 1-1 | 622-00177K | CABIN ASS'Y | |
| 1-1 | 622-00177L | CABIN ASS'Y | |
| 1-1 | 622-00177M | CABIN ASS'Y | |
| 1-1 | 622-00177N | CABIN ASS'Y | |
| 1-1 | 622-00177Q | CABIN ASS'Y | |
| 1-3 | 2120-2166D4 | BOLT M10X1.5X20 | |
| 1-4 | 2114-2031D5 | WASHER;SPRING M10 | |
| 1-5 | 2114-1898D1 | WASHER | |
| 2 | 621-01920B | PLATE;FLOOR | |
| 5 | 2120-2166D2 | BOLT M10X1.5X25 | |
| 8 | 2120-2166D3 | BOLT M10X1.5X65 | |
| 9 | 2160-1308 | BUSHING;RUBBER | |
| 10 | 2160-1004D48 | BUSHING;RUBBER | |
| 11 | 195-01784B | BRACKET;AUDIO CASSETTE | |
| 11 | 195-01784C | BRACKET;AUDIO CASSETTE | |
| 12 | S0508853 | BOLT M8X1.25X20 | |
| 13 | 2197-1704A | BRACKET;FOOT REST(L.H) | |
| 14 | S5010513 | WASHER;PLAIN M8 | |
| 15 | 2197-1744A | BRACKET;FOOT REST(R.H) | |
| 17 | 195-01684A | BRACKET;PEDAL(L.H) | |
| 18 | 195-01683A | BRACKET;PEDAL(R.H) | |
| 19 | 133-00155A | LEVER(L.H) | |
| 20 | 133-00156A | LEVER(R.H) | |
| 21 | 161-00382 | RUBBER;PEDAL(L.H) | |
| 22 | S2211866 | BOLT;SOCKET | |
| 23 | S5110601 | WASHER;SPRING | |
| 24 | S2201766 | BOLT;SOCKET M4X0.7X14 | |
| 25 | S5000113 | WASHER;PLAIN M4 | |
| 26 | 2132-1133B | GRIP;LEVER(L.H) | |
| 27 | 2132-1134B | GRIP;LEVER(R.H) | |
| 28 | 161-00077 | PLATE;RUBBER | |
| 29 | 621-00564 | SHIM | |
| 30 | 2114-1898D1 | WASHER | |
| 31 | 2161-2317 | RUBBER;PLATE | |
| 32 | 621-01159 | PLATE;COVER | |
| 33 | 2120-2166D6 | BOLT M6X1.0X16 | |
| 34 | 2114-1898D3 | WASHER | |
| 35 | 160-00035 | BUSHING;RUBBER | |
| 36 | 161-00381 | RUBBER;PEDAL(R.H) | |
| 37 | 621-01160 | COVER;FRESH AIR DUCT | |
| 38 | 2120-2166D19 | BOLT M6X1.0X12 | |
| 39 | 161-00329 | RUBBER;DAMPER(L.H) | |
| 40 | 161-00330 | RUBBER;DAMPER(L.H) | |
| 41 | 161-00331 | RUBBER;DAMPER(R.H) | |
| 42 | 161-00335 | RUBBER;DAMPER(R.H) | |
| 43 | 160-00030 | BOOT | |
| 44 | 195-01765B | BRACKET | |
| 50 | 622-00309 | CABIN ASS'Y-OPT. | |
| 50 | 622-00309C | CABIN ASS'Y-OPT. | |
| 50 | 622-00309E | CABIN ASS'Y-OPT. | |
| 50 | 622-00309G | CABIN ASS'Y-OPT. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
