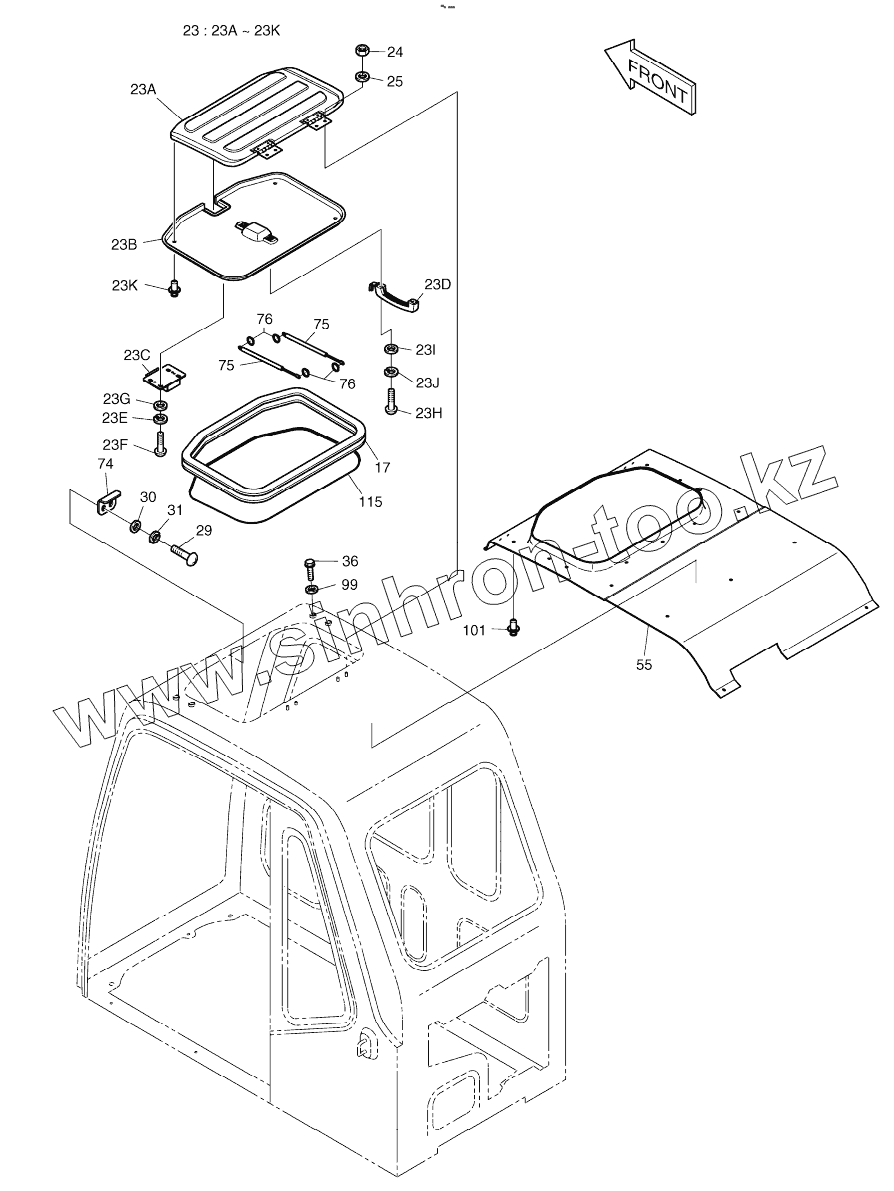

Позиция на иллюстрации
Заводской номер детали
Название детали
622-00177J
622-00177J
CABIN ASS'Y
622-00177K
622-00177K
CABIN ASS'Y
622-00177L
622-00177L
CABIN ASS'Y
622-00177M
622-00177M
CABIN ASS'Y
622-00177N
622-00177N
CABIN ASS'Y
622-00177Q
622-00177Q
CABIN ASS'Y
17
162-00026
STRIP;WEATHER 2000L
23
621-01667
ROOF COVER ASS'Y
23A
621-01668
COVER;ROOF
23B
161-00326
PAD;ROOF COVER
23C
2125-9057
CATCH;FOOF COVER
23D
2172-1112
HANDLE;PULL
23E
S5100203
WASHER;SPRING
23F
S3450833
SCREW M5X0.8X12
23G
S5000213
WASHER;PLAIN
23H
S3450993
SCREW M6X1.0X25
23I
S5010313
WASHER;PLAIN
23J
S5102303
WASHER;SPRING M6
23K
2120-2174
SCRIVET
24
S4012533
NUT M8X1.25
25
S5010513
WASHER;PLAIN M8
29
S3450973
SCREW M6X1.0X16
30
S5010313
WASHER;PLAIN
31
S5102303
WASHER;SPRING M6
36
2120-2166D4
BOLT M10X1.5X20
55
161-00323
PAD;ROOF
74
2142-1122A
STRIKER
75
2440-9251
SPRING;GAS
76
S6540600
RING;RETAINING
99
2114-1058D45
WASHER M10
101
2120-2174
SCRIVET
115
161-00486
FINISHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
