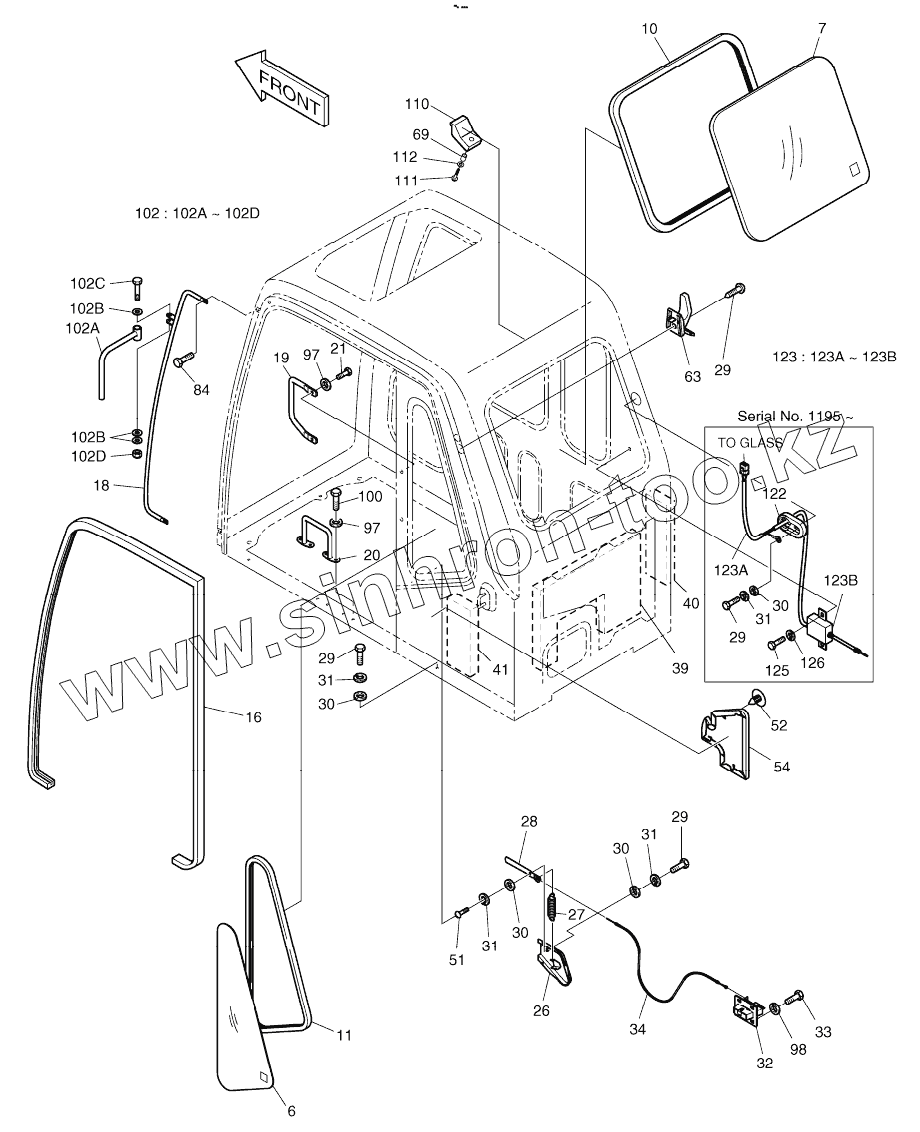

Каталог запасных частей к технике: Doosan S225LC-V. CABIN
6
7
7
10
11
16
18
19
20
21
26
27
28
29
29
29
29
29
29
29
29
29
29
30
30
30
30
30
30
30
30
30
30
31
31
31
31
31
31
31
31
31
31
32
33
34
39
40
41
51
52
54
63
69
84
97
97
98
100
102
102A
102A
102B
102B
102C
102D
102D
110
111
112
122
123
123A
123A
123B
123B
125
126
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 622-00177J | 622-00177J | CABIN ASS'Y | |
| 622-00177K | 622-00177K | CABIN ASS'Y | |
| 622-00177L | 622-00177L | CABIN ASS'Y | |
| 622-00177M | 622-00177M | CABIN ASS'Y | |
| 622-00177N | 622-00177N | CABIN ASS'Y | |
| 622-00177Q | 622-00177Q | CABIN ASS'Y | |
| 6 | 2903-1212 | GLASS(L.H) | |
| 7 | 2903-1213 | GLASS;REAR | |
| 7 | 903-00067 | GLASS;REAR | |
| 10 | 2198-1058 | H-RUBBER 2590L | |
| 11 | 2198-1055 | S-RUBBER;REAR(L.H) | |
| 16 | 2162-1064A | STRIP;WEATHER 3500L | |
| 18 | 172-00027A | HANDLE;FRONT(L.H) | |
| 19 | 172-00043 | HANDLE;CENTER(L.H) | |
| 20 | 2172-1109 | HANDLE;LOWER(L.H) | |
| 21 | 2120-2166D1 | BOLT M10X1.5X30 | |
| 26 | 2197-1639A | BRACKET;LEVER CASE | |
| 27 | 2129-1446 | SPRING | |
| 28 | 2133-2014 | LEVER;CATCH DOOR | |
| 29 | S3450973 | SCREW M6X1.0X16 | |
| 29 | S3450973 | SCREW M6X1.0X16 | |
| 30 | S5010313 | WASHER;PLAIN | |
| 30 | S5010313 | WASHER;PLAIN | |
| 31 | S5102303 | WASHER;SPRING M6 | |
| 31 | S5102303 | WASHER;SPRING M6 | |
| 32 | 2125-9055 | CATCH;DOOR ASM | |
| 33 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 34 | 2127-1002A | WIRE ASM;RELEASE | |
| 39 | 161-00317 | FOAM;POLYURETHANE | |
| 40 | 161-00318 | FOAM;POLYURETHANE | |
| 41 | 161-00319 | FOAM;POLYURETHANE | |
| 51 | S3450953 | SCREW M6X1.0X12 | |
| 52 | 2124-1607 | TRIM CLIP | |
| 54 | 161-00430A | PAD(L.H) | |
| 63 | 2150-1133 | HOOK;COAT | |
| 69 | 2140-1338 | PIPE;SPACER | |
| 84 | 2120-2150D1 | BOLT M10X1.5X25 | |
| 97 | 2114-1898D1 | WASHER | |
| 98 | 2114-1898D2 | WASHER M8 | |
| 100 | 2120-2166D2 | BOLT M10X1.5X25 | |
| 102 | 623-00023 | STAY;SIDE MIRROR | |
| 102A | 623-00024 | STAY | |
| 102B | 2114-1898D16 | WASHER | |
| 102C | 2120-2166D40 | BOLT M10X1.5X70 | |
| 102D | 2121-1311D5 | NUT;CAP M10X1.5 | |
| 110 | 161-00461A | STOPPER | |
| 111 | 2120-2166D14 | SCREW M5X0.8X25 | |
| 112 | 2114-1058D64 | WASHER | |
| 122 | 160-00084 | BUSHING;RUBBER | |
| 123 | 537-00074 | MODULE ASS'Y | |
| 123A | 563-00016 | MAIN FEEDER | |
| 123B | 537-00078 | SUB MODULE ASS'Y | |
| 125 | S0508853 | BOLT M8X1.25X20 | |
| 126 | S5102503 | WASHER;SPRING |
