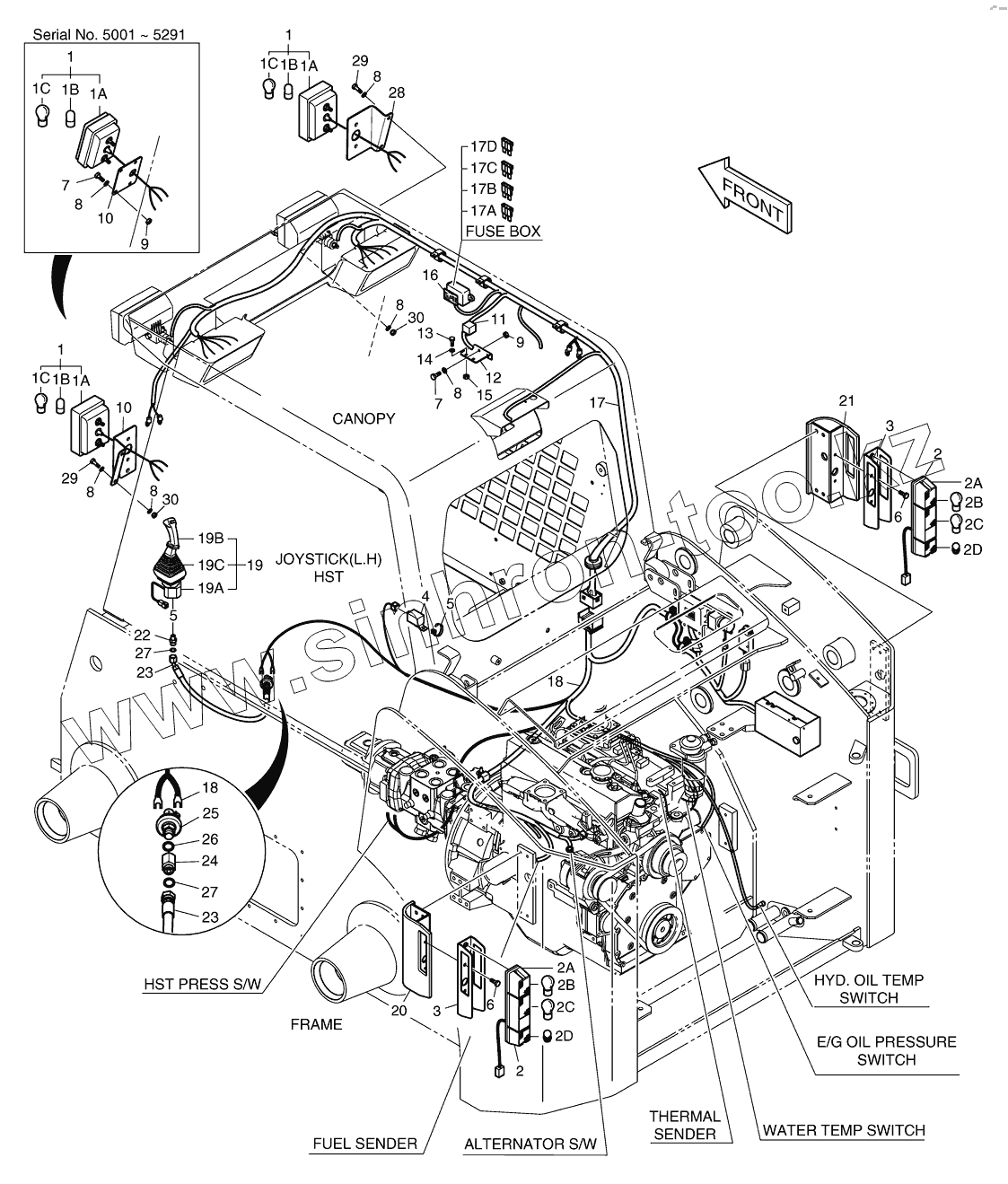

Каталог запасных частей к технике: Doosan Мини-погрузчик 460 Plus. 6610 Дополнительное освещение
1
1
1
10
10
10
10
11
12
13
14
15
16
17
17A
17B
17C
17D
18
18
19
19
19A
19B
19C
1A
1A
1A
1B
1B
1B
1C
1C
1C
2
2
20
21
22
23
23
24
25
26
27
27
28
29
29
2A
2A
2B
2B
2C
2C
2D
2D
3
3
30
30
4
4
5
5
6
6
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K1020957 | LAMP;HEAD | |
| 10 | K1020226 | PLATE | |
| 10 | K1021965A | BRACKET;LAMP(L.H) | |
| 11 | K1019698 | RELAY;SEALED | |
| 12 | K1020922 | BRACKET | |
| 13 | S3450853 | SCREW M5X0.8X16 | |
| 14 | S5000213 | WASHER;PLAIN | |
| 15 | S4016241 | NUT | |
| 16 | K1021885 | PLATE;NAME(FUSE DIAGRAM) | |
| 17 | K1022115 | HARNESS;CANOPY | |
| 17A | K1019105 | FUSE 5A | |
| 17B | K1019052 | FUSE 10A | |
| 17C | K1022925 | FUSE 15A | |
| 17D | K1022931 | FUSE 30A | |
| 18 | K1022118 | HARNESS;E/G | |
| 19 | K1022807 | VALVE;JOYSTICK | |
| 19 | K1022807A | VALVE;JOYSTICK | |
| 19A | K1024067A | HST BODY | |
| 19B | K1024065 | HANDLE | |
| 19C | K1024072 | BOOT | |
| 1A | K1024671 | LAMP;COMBI | |
| 1B | S863105H | BULB 12V 5W | |
| 1C | S864121H | BULB 12V 21W | |
| 2 | K1022950 | REAR LAMP ASS'Y | |
| 20 | K1020946 | BRACKET(L.H) | |
| 21 | K1020947 | BRACKET(R.H) | |
| 22 | K1023082 | ADAPTER | |
| 23 | DS2012325 | HOSE | |
| 24 | K1022203 | ADAPTER | |
| 25 | 549-00010 | SWITCH;PRESSURE | |
| 26 | S8040051 | O-RING | |
| 27 | S8030041 | O-RING | |
| 28 | K1021966A | BRACKET;LAMP(R.H) | |
| 29 | S0504863 | BOLT | |
| 2A | K1022952 | CASE;LAMP | |
| 2B | S864123H | BULB 12V 23W | |
| 2C | S866123H | BULB 12V 23/8W | |
| 2D | S863110H | BULB 12V 10W | |
| 3 | K1019693 | BRACKET | |
| 30 | K1023117 | NUT;LOCK | |
| 4 | 2525-1010 | UNIT;BLINKER | |
| 4 | 2525-1012 | UNIT;BLINKER | |
| 5 | K1022971 | CLIP;BAND | |
| 6 | K1023128 | SCREW | |
| 7 | S0504663 | BOLT | |
| 7 | S0504663 | BOLT | |
| 8 | DS0401171 | WASHER;HARDENED | |
| 8 | DS0401171 | WASHER;HARDENED | |
| 9 | S4016333 | NUT | |
| 9 | S4016333 | NUT | |
| K1023384B | K1023384B | LIGHTING SYSTEM |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
