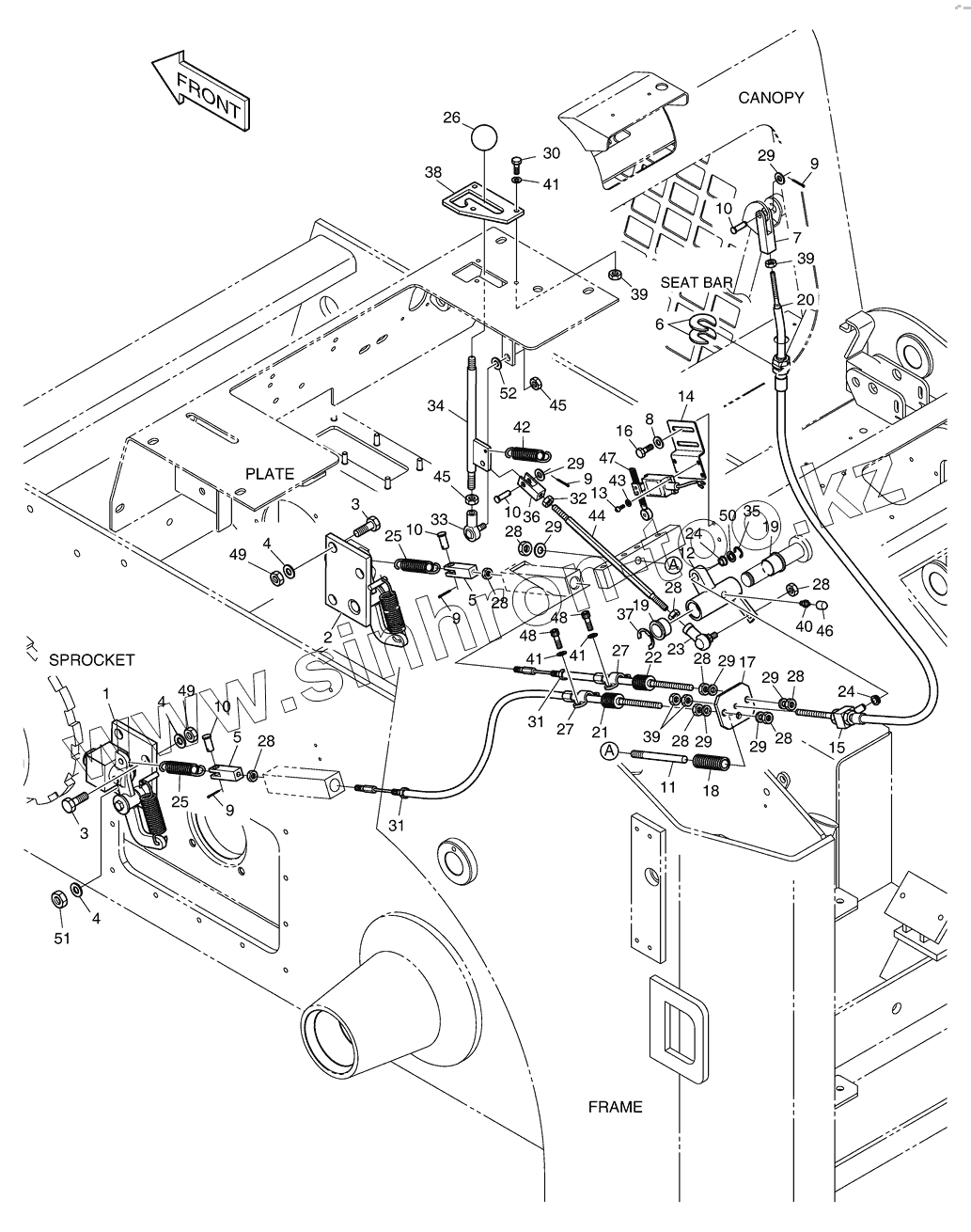

Каталог запасных частей к технике: Doosan Мини-погрузчик 460 Plus. 2211 Стояночный тормоз
1
10
10
10
10
11
12
13
14
15
16
17
18
19
19
2
20
21
22
23
24
24
25
25
26
27
27
28
28
28
28
28
28
28
28
28
29
29
29
29
29
29
29
3
3
30
31
31
32
33
34
35
36
37
38
39
39
39
4
4
4
40
41
41
41
42
43
44
45
45
46
47
48
48
49
49
5
5
50
51
52
6
7
8
9
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K1021711 | BRAKE(L.H) | |
| 10 | S5760212 | PIN;CLEVIS | |
| 11 | K1019983 | ROD | |
| 12 | K1021635 | LINK | |
| 13 | S3450823 | SCREW M5X0.8X10 | |
| 14 | K1021014 | BRACKET | |
| 15 | K1021054 | LINK | |
| 16 | S0504563 | BOLT | |
| 17 | K1021634 | BLOCK | |
| 18 | K1019984 | SPRING | |
| 19 | K1022262 | BUSHING | |
| 2 | K1021712 | BRAKE(R.H) | |
| 20 | K1020129 | CABLE | |
| 21 | K1020010 | CABLE | |
| 22 | K1020269 | CABLE | |
| 23 | K1019662 | JOINT;BALL | |
| 24 | K1023038 | BEARING | |
| 25 | K1020009 | SPRING | |
| 26 | K1023035 | KNOB | |
| 27 | K1019976 | CLAMP | |
| 28 | K1023121 | NUT | |
| 29 | K1023146 | WASHER;HARDENED | |
| 3 | S0521463 | BOLT;SOCKET | |
| 30 | S0504863 | BOLT | |
| 31 | S4032733 | NUT | |
| 32 | K1023124 | NUT | |
| 33 | 2138-9002B | JOINT;BALL | |
| 34 | K1020623 | ROD | |
| 35 | S6540800 | RING;RETAINING | |
| 36 | K1019661 | CLEVIS | |
| 37 | S6541500 | RING;RETAINER | |
| 38 | K1019973 | GUIDE | |
| 39 | S4016333 | NUT | |
| 4 | 2114-1816A | WASHER;HARD | |
| 40 | K1019735 | NIPPLE;GREASE | |
| 41 | DS0401171 | WASHER;HARDENED | |
| 42 | K1019975 | SPRING | |
| 43 | S5000213 | WASHER;PLAIN | |
| 44 | K1021633 | ROD | |
| 45 | S4032633 | NUT M10X1.25 | |
| 46 | K1019808 | CAP;GREASE NIPPLE | |
| 47 | K1020986 | SWITCH;PARKING BRAKE | |
| 48 | S2204461 | BOLT;SOCKET | |
| 49 | S4016933 | NUT | |
| 5 | K1020011 | YOKE | |
| 50 | K1023150 | WASHER;HARDENED | |
| 51 | K1023120 | NUT;LOCK | |
| 52 | K1023147 | WASHER;HARDENED | |
| 6 | K1020099 | SPACER | |
| 7 | K1019640 | YOKE | |
| 8 | K1023157 | WASHER;HARDENED | |
| 9 | S180333H | PIN | |
| 130104-00035 | 130104-00035 | BRAKE ASSY,PARKING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
