Каталог запасных частей к технике: Doosan Мини-погрузчик 450 Plus (Tier3). 6530 Трубопроводы управления
11
12
12
14
15
16
17
18
19
20
21
22
23
25
26
27
27A
28
29
30
32
33
33
34
35
37
37
38
38
39
39
40
40
42
43
44
44
45
46
47
48
50
51
51
51A
51B
51C
52
53
53
54
55
56
56
56
56
56
56
56
57
59
59
59
59
59
60
60
60
60
60
61
61
61
61
61
61
61
63
63
63
63
64
64
65
66
67
72
73
74
75
76
78
79
8
9

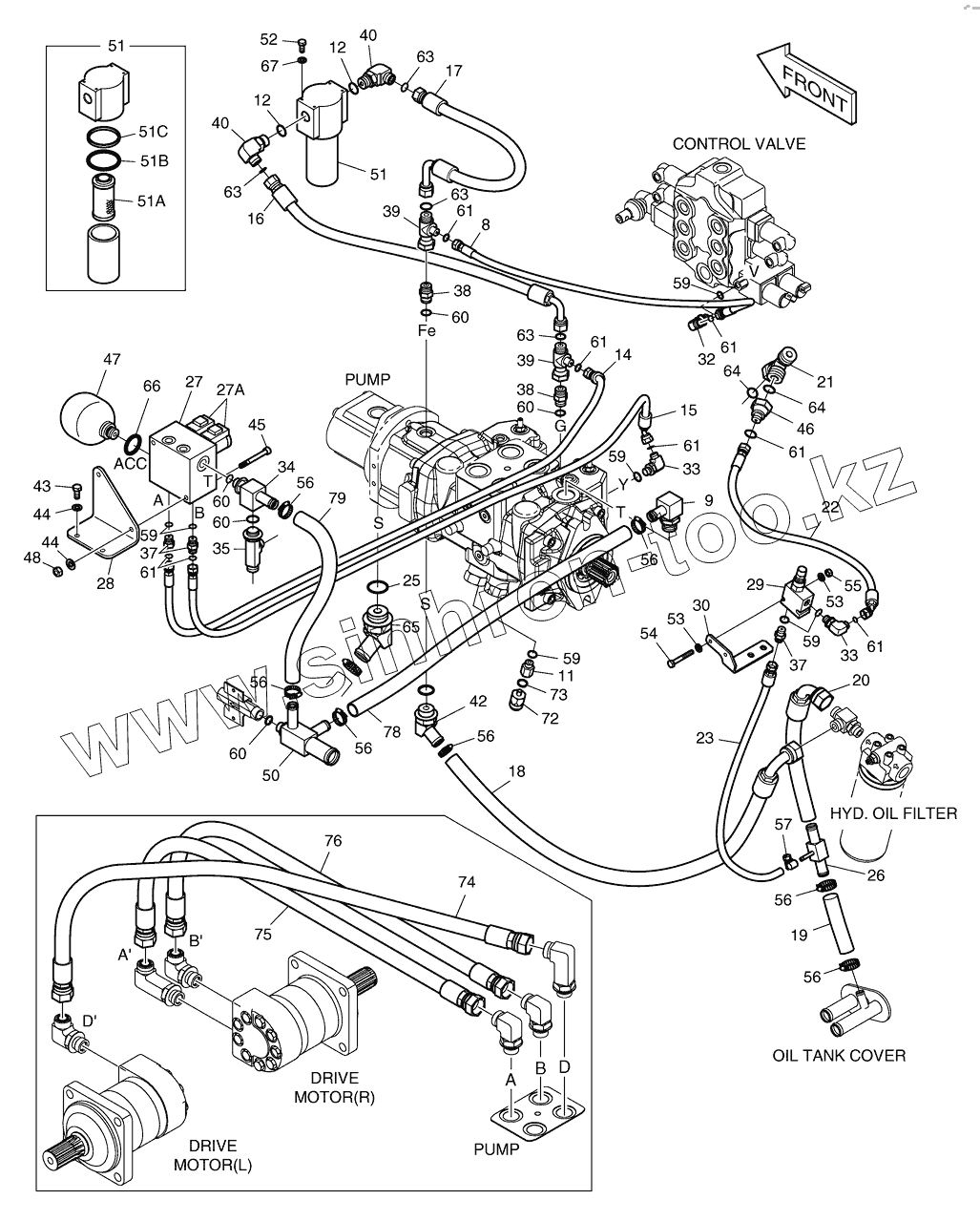

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 11 | 2181-2340 | ADAPTER | |
| 12 | S8040101 | O-RING | |
| 14 | DS2012330 | HOSE | |
| 15 | DS2012331 | HOSE | |
| 16 | DS2013709 | HOSE | |
| 17 | DS2013716 | HOSE | |
| 18 | DS2037009 | HOSE | |
| 19 | 2185-1002D63 | HOSE | |
| 20 | DS2028014 | HOSE | |
| 21 | K1023092 | TEE | |
| 22 | DS2012208 | HOSE | |
| 23 | DS2032010 | HOSE | |
| 25 | S8040201 | O-RING | |
| 26 | DS2377003 | TEE | |
| 27 | K1022649A | VALVE;SOLENOID | |
| 27A | K1022659 | SOLENOID | |
| 28 | K1021998 | BRACKET | |
| 29 | K1022652 | VALVE;SOLENOID | |
| 30 | K1036582A | BRACKET | |
| 32 | K1023059 | ELBOW | |
| 33 | K1023060 | ELBOW | |
| 34 | K1021997 | TEE | |
| 35 | K1022542 | TEE | |
| 37 | K1023081 | ADAPTER | |
| 38 | K1023080 | ADAPTER | |
| 39 | DS2356002 | TEE | |
| 40 | K1023067 | ELBOW | |
| 42 | K1019117 | ELBOW | |
| 43 | S0508863 | BOLT | |
| 44 | S5010513 | WASHER;PLAIN M8 | |
| 45 | S2210071 | BOLT;SOCKET | |
| 46 | DS2249006 | ADAPTER | |
| 47 | 2460-9054 | ACCUMULATOR | |
| 48 | S4012533 | NUT M8X1.25 | |
| 50 | K1022146 | TEE | |
| 51 | K1022651 | FILTER;PILOT | |
| 51A | K1022654 | ELEMENT;PILOT FILTER | |
| 51B | K1022655 | O-RING | |
| 51C | K1022656 | RING;BACK-UP | |
| 52 | S0502963 | BOLT | |
| 53 | S5010313 | WASHER;PLAIN | |
| 54 | S0505563 | BOLT M6X1.0X45L | |
| 55 | S4012333 | NUT M6X1.0 | |
| 56 | S8450023 | CLAMP | |
| 57 | S8450006 | CLAMP;HOSE | |
| 59 | S8030061 | O-RING | |
| 60 | S8030081 | O-RING | |
| 61 | S8030041 | O-RING | |
| 63 | S8040081 | O-RING | |
| 64 | S8030101 | O-RING | |
| 65 | DS2340005 | ELBOW | |
| 66 | S8000141 | O-RING | |
| 67 | S5000213 | WASHER;PLAIN | |
| 72 | 2549-1135D8 | SWITCH;PRESSURE | |
| 73 | S8180211 | SEAL RING | |
| 74 | DS2029028 | HOSE | |
| 75 | DS2029049 | HOSE | |
| 76 | DS2029047 | HOSE | |
| 78 | 2185-1002D115 | HOSE | |
| 79 | 2185-1002D72 | HOSE 500L | |
| 8 | DS2011542 | HOSE | |
| 9 | K1023061 | ELBOW | |
| K1036728B | K1036728B | PILOT PIPING |
