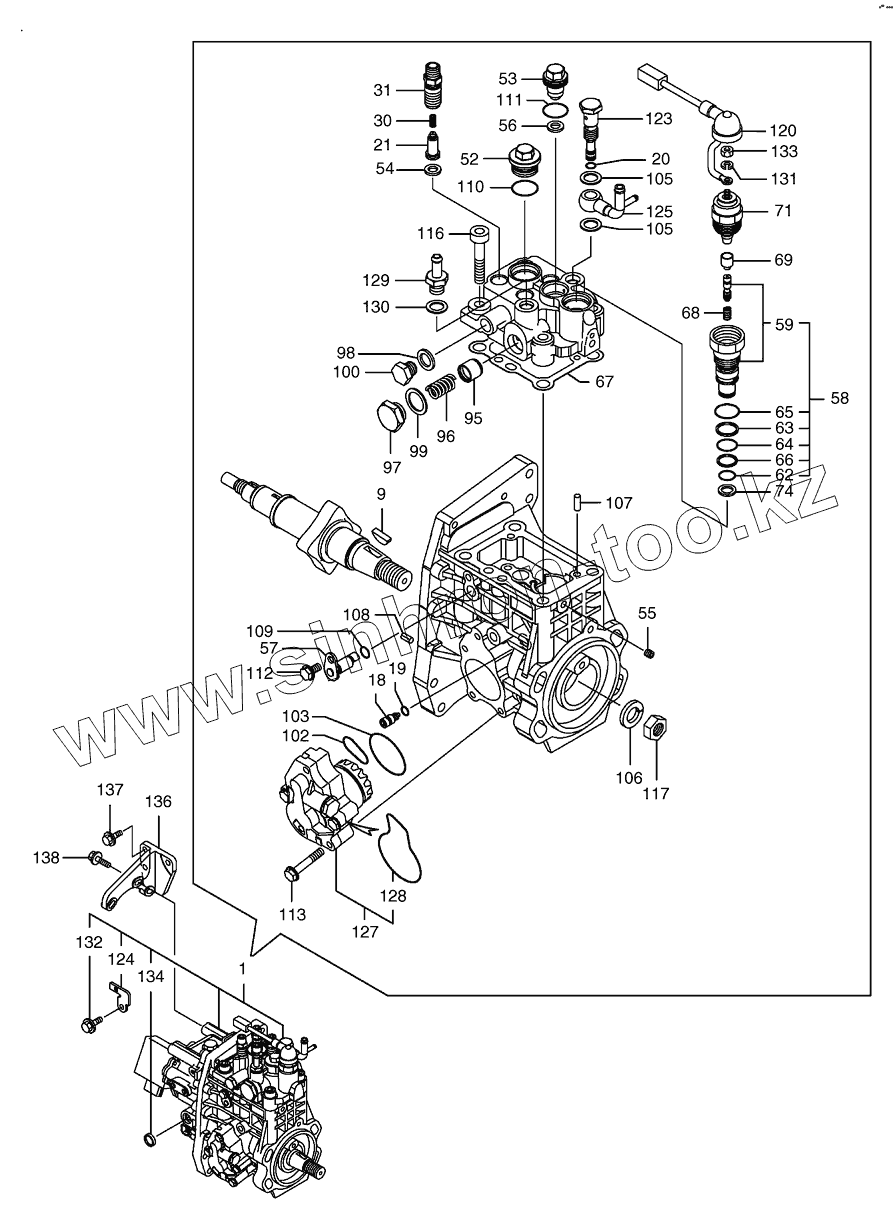

Каталог запасных частей к технике: Doosan Мини-погрузчик 450 Plus (Tier3). 021 Топливный насос высокого давления
1
100
102
103
105
105
106
107
108
109
110
111
112
113
116
117
120
123
124
125
127
128
129
130
131
132
133
134
136
137
138
18
19
20
21
30
31
52
53
54
55
56
57
58
59
62
63
64
65
66
67
68
69
71
74
9
95
96
97
98
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K9006471 | INJECTON PUMP ASS'Y | |
| 100 | K9004850 | PLUG | |
| 102 | K9004811 | O-RING | |
| 103 | K9004812 | O-RING | |
| 105 | 2.114-01090 | SEAL;WASHER | |
| 106 | K9002126 | WASHER;SPRING | |
| 107 | K9004845 | PIN;PARALLEL | |
| 108 | K9004846 | PIN;SPRING | |
| 109 | S8000070 | O-RING | |
| 110 | K9004852 | PACKING | |
| 111 | K9006164 | O-RING | |
| 112 | 2.120-00039 | BOLT M6X10 | |
| 113 | K9006165 | BOLT M 6X 35 PLATED | |
| 116 | K9006171 | BOLT;SOCKET M10X45 | |
| 117 | K9005948 | NUT;LOCK M18 | |
| 120 | K9006104 | HARNESS | |
| 123 | K9004834 | JOINT | |
| 124 | K9006105 | BRACKET | |
| 125 | K9004808 | JOINT | |
| 127 | K9004810 | PUMP;FUEL FEED | |
| 128 | K9004813 | O-RING | |
| 129 | K9006070 | JOINT;PIPE | |
| 130 | 2.114-01090 | SEAL;WASHER | |
| 131 | K9006155 | WASHER;SPRING | |
| 132 | 2.120-00028 | BOLT M6X12 | |
| 133 | K9006172 | NUT | |
| 134 | K9006173 | PLUG | |
| 136 | K9006101 | RETAINER | |
| 137 | 2.120-00137 | BOLT M8X20 | |
| 138 | 2.120-00138 | BOLT M8X30 | |
| 18 | K9004830 | STOPPER | |
| 19 | K9004828 | O-RING | |
| 20 | K9004828 | O-RING | |
| 21 | K9006102 | VALVE ASS'Y;DELIVERY | |
| 30 | K9004829 | SPRING | |
| 31 | K9006103 | HOLDER;DELIVERY | |
| 52 | K9004833 | PLUG | |
| 53 | K9006078 | PLUG | |
| 54 | K9004805 | WASHER | |
| 55 | K9004826 | PLUG | |
| 56 | K9006077 | PACKING, PLUG | |
| 57 | K9004806 | LIFTER | |
| 58 | K9006076 | TIMER SET | |
| 59 | BUCKET;WELD | ||
| 62 | K9004821 | O-RING | |
| 63 | K9004659 | RING;BACKUP | |
| 64 | K9004660 | O-RING | |
| 65 | K9004852 | PACKING | |
| 66 | K9004853 | RING;BACKUP | |
| 67 | K9006153 | PACKING;HEAD | |
| 68 | K9006057 | SPRING;TIMER | |
| 69 | K9006068 | CAP;TIMER | |
| 71 | K9006069 | VALVE;SOLENOID | |
| 74 | K9004822 | PACKING;TIMER | |
| 9 | K9006144 | KEY 5X19 | |
| 95 | K9004831 | PISTON | |
| 96 | K9006145 | SPRING | |
| 97 | K9004835 | PLUG | |
| 98 | 2.114-01090 | SEAL;WASHER | |
| 99 | K9004841 | SEAL;WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
