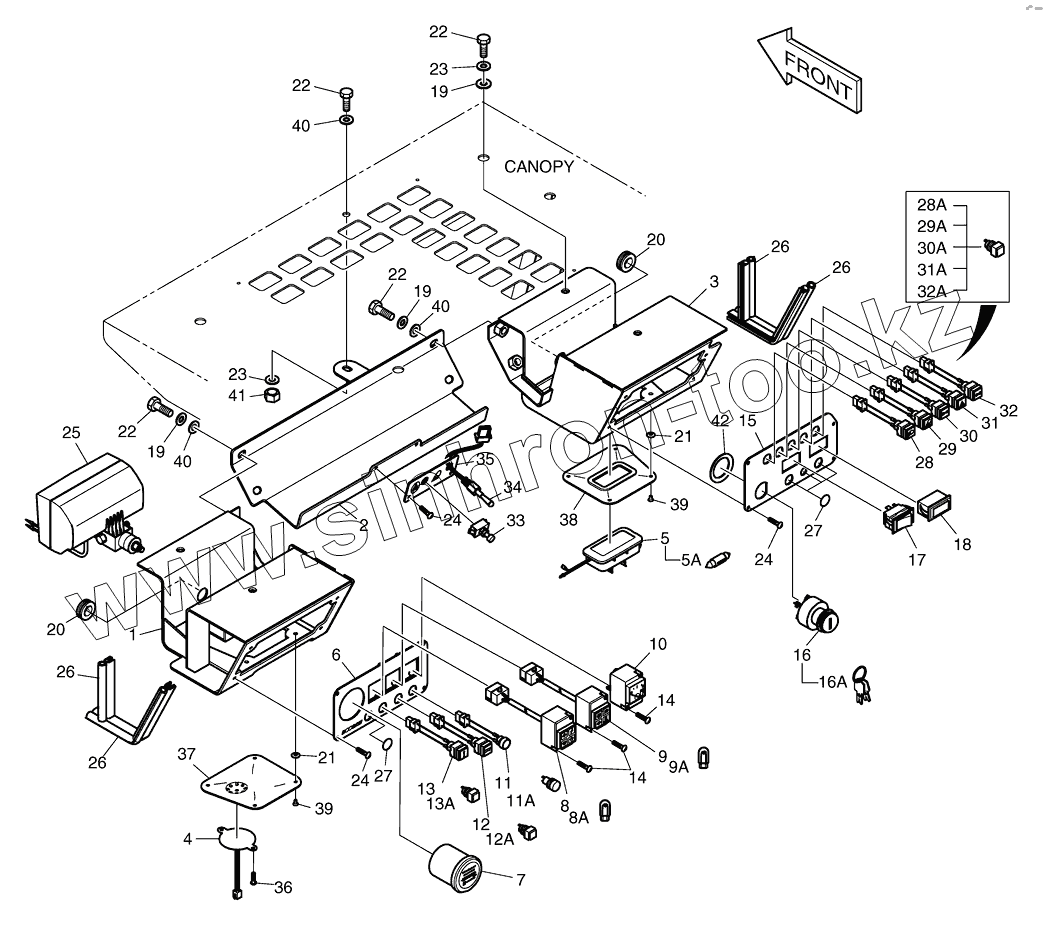

Каталог запасных частей к технике: Doosan Мини-погрузчик 430 Plus. 6680 Приборы
1
10
11
11A
12
12A
13
13A
14
14
15
16
16A
17
18
19
19
19
2
20
20
21
21
22
22
22
22
23
23
24
24
24
25
26
26
26
26
27
27
28
28A
29
29A
3
30
30A
31
31A
32
32A
33
34
35
36
37
38
39
39
4
40
40
40
41
42
5
5A
6
7
8
8A
9
9A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K1021181 | COVER(L.H) | |
| 10 | K1023040 | GAUGE;FUEL | |
| 11 | K1020783 | LAMP;PILOT(PARKING) | |
| 11A | K1022897 | LAMP;PILOT(PARKING) | |
| 12 | K1022999 | LAMP;PILOT(STOP) | |
| 12A | K1022899 | LAMP;PILOT(STOP) | |
| 13 | K1023000 | LAMP;PILOT | |
| 13A | K1022900 | LAMP;PILOT | |
| 14 | S3450403 | SCREW | |
| 15 | K1021168 | PANEL | |
| 16 | K1019659 | SWITCH;STARTER | |
| 16A | K1019104 | KEY;STARTER | |
| 17 | K1019048 | SWITCH | |
| 18 | K1019047 | PLUG | |
| 19 | S5102503 | WASHER;SPRING | |
| 2 | K1021212 | COVER | |
| 20 | S994010H | GROMMET | |
| 21 | K1023034 | WASHER | |
| 22 | S0508863 | BOLT | |
| 23 | K1023149 | WASHER;HARDENED | |
| 24 | S3450633 | SCREW | |
| 25 | K1020956 | LAMP;HEAD | |
| 26 | K1019087 | STRIP;BULK | |
| 27 | K1029438 | FILM | |
| 28 | K1020778 | LAMP;PILOT(LOW BEAM) | |
| 28A | K1022901 | LAMP;PILOT | |
| 29 | K1020779 | LAMP;PILOT(HIGH BEAM) | |
| 29A | K1022902 | LAMP;PILOT | |
| 3 | K1021182 | COVER(R.H) | |
| 30 | K1020780 | LAMP;PILOT(POSITION) | |
| 30A | K1022901 | LAMP;PILOT | |
| 31 | K1020781 | LAMP;PILOT(EMERGENCY) | |
| 31A | K1022899 | LAMP;PILOT(STOP) | |
| 32 | K1020782 | LAMP;PILOT(DIRECTION) | |
| 32A | K1022901 | LAMP;PILOT | |
| 33 | K1019053 | SWITCH;HAZARD | |
| 34 | K1019067 | SWITCH;TOGGLE | |
| 35 | K1020777 | PLATE | |
| 36 | K1019757 | RIVET | |
| 37 | K1020647 | COVER(L.H) | |
| 38 | K1020648 | COVER(R.H) | |
| 39 | S3452853 | SCREW M5X0.8X16 | |
| 4 | K1022920 | BUZZER;PILOT | |
| 40 | K1023146 | WASHER;HARDENED | |
| 41 | S4016543 | NUT | |
| 42 | K1029120 | SHIM | |
| 5 | K1023001 | LAMP;ROOM | |
| 5A | 2515-1021D6 | BULB | |
| 6 | K1020568 | PANEL | |
| 7 | K1019658 | METER;HOUR | |
| 8 | K1019110 | LAMP;WARNING | |
| 8A | K1019111 | BULB | |
| 9 | K1022998 | LAMP;WARNING | |
| 9A | K1019111 | BULB | |
| K1021863A | K1021863A | INSTRUMENT ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
