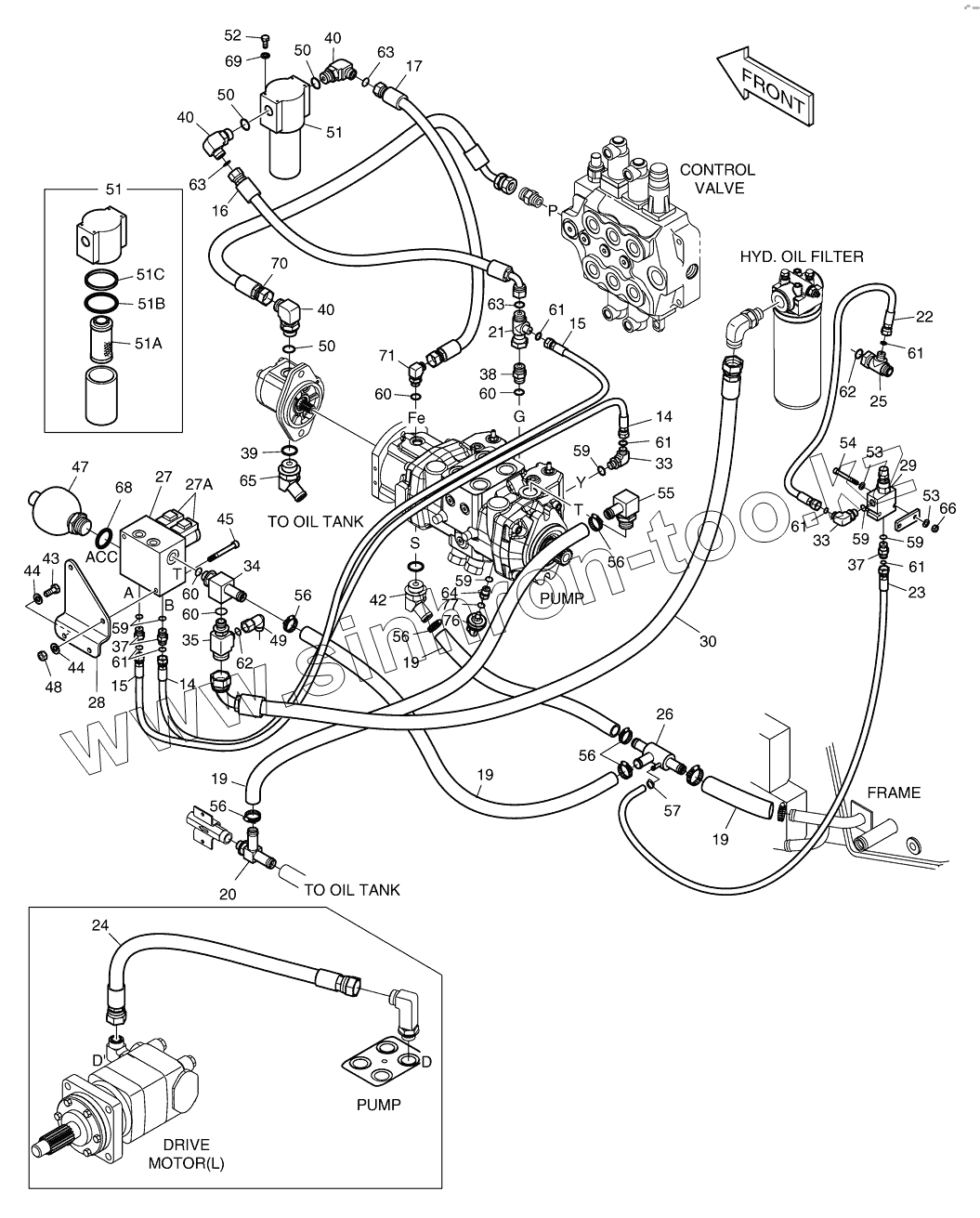

Каталог запасных частей к технике: Doosan Мини-погрузчик 430 Plus. 6550 Трубопроводы управления
14
14
15
15
16
17
19
19
19
19
20
21
22
23
24
25
26
27
27
27A
28
29
30
33
33
34
35
37
37
38
39
40
40
40
42
43
44
44
45
47
47
48
49
50
50
50
51
51
51A
51B
51C
52
53
53
54
55
56
56
56
56
56
57
59
59
59
59
59
60
60
60
60
61
61
61
61
61
61
62
62
63
63
63
64
64
65
66
68
69
70
71
76
76
77
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 14 | DS2012330 | HOSE | |
| 15 | DS2012331 | HOSE | |
| 16 | DS2013701 | HOSE | |
| 17 | DS2011527 | HOSE | |
| 19 | K1022543 | HOSE;BULK (L=100CM) | |
| 20 | K1023090 | TEE | |
| 21 | DS2356002 | TEE | |
| 22 | DS2011434 | HOSE | |
| 23 | DS2032009 | HOSE | |
| 24 | DS2011547 | HOSE | |
| 25 | K1019115 | TEE | |
| 26 | DS2448002 | TEE | |
| 27 | K1022649 | VALVE;SOLENOID | |
| 27 | K1022649A | VALVE;SOLENOID | |
| 27A | K1022659 | SOLENOID | |
| 28 | K1022068 | BRACKET | |
| 29 | K1022652 | VALVE;SOLENOID | |
| 30 | DS2013418 | HOSE | |
| 33 | K1023060 | ELBOW | |
| 34 | K1021997 | TEE | |
| 35 | DS2376023 | TEE | |
| 37 | K1023081 | ADAPTER | |
| 38 | K1023080 | ADAPTER | |
| 39 | S8040161 | O-RING | |
| 40 | K1023067 | ELBOW | |
| 42 | K1019117 | ELBOW | |
| 43 | S0508863 | BOLT | |
| 44 | S5010513 | WASHER;PLAIN M8 | |
| 45 | S2210071 | BOLT;SOCKET | |
| 47 | 2460-9054 | ACCUMULATOR | |
| 47 | K1022806 | ACCUMULATOR | |
| 48 | S4012533 | NUT M8X1.25 | |
| 49 | K1023069 | ELBOW | |
| 50 | S8040101 | O-RING | |
| 51 | K1022651 | FILTER;PILOT | |
| 51A | K1022654 | ELEMENT;PILOT FILTER | |
| 51B | K1022655 | O-RING | |
| 51C | K1022656 | RING;BACK-UP | |
| 52 | S0502963 | BOLT | |
| 53 | S5010313 | WASHER;PLAIN | |
| 54 | S0505563 | BOLT M6X1.0X45L | |
| 55 | K1023061 | ELBOW | |
| 56 | S8450023 | CLAMP | |
| 57 | S8450006 | CLAMP;HOSE | |
| 59 | S8040061 | O-RING | |
| 60 | S8040081 | O-RING | |
| 61 | S8030041 | O-RING | |
| 62 | S8030061 | O-RING | |
| 63 | S8030081 | O-RING | |
| 64 | 2181-2340 | ADAPTER | |
| 64 | DS2245024 | ADAPTER | |
| 65 | DS2340004 | ELBOW | |
| 66 | S4012333 | NUT M6X1.0 | |
| 68 | S8000141 | O-RING | |
| 69 | S5000213 | WASHER;PLAIN | |
| 70 | DS2012148 | HOSE | |
| 71 | K1023066 | ELBOW | |
| 76 | 2549-1135D8 | SWITCH;PRESSURE | |
| 76 | 549-00010 | SWITCH;PRESSURE | |
| 77 | S8180211 | SEAL RING | |
| K1022183E | K1022183E | PILOT PIPING-JOYSTICK |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
