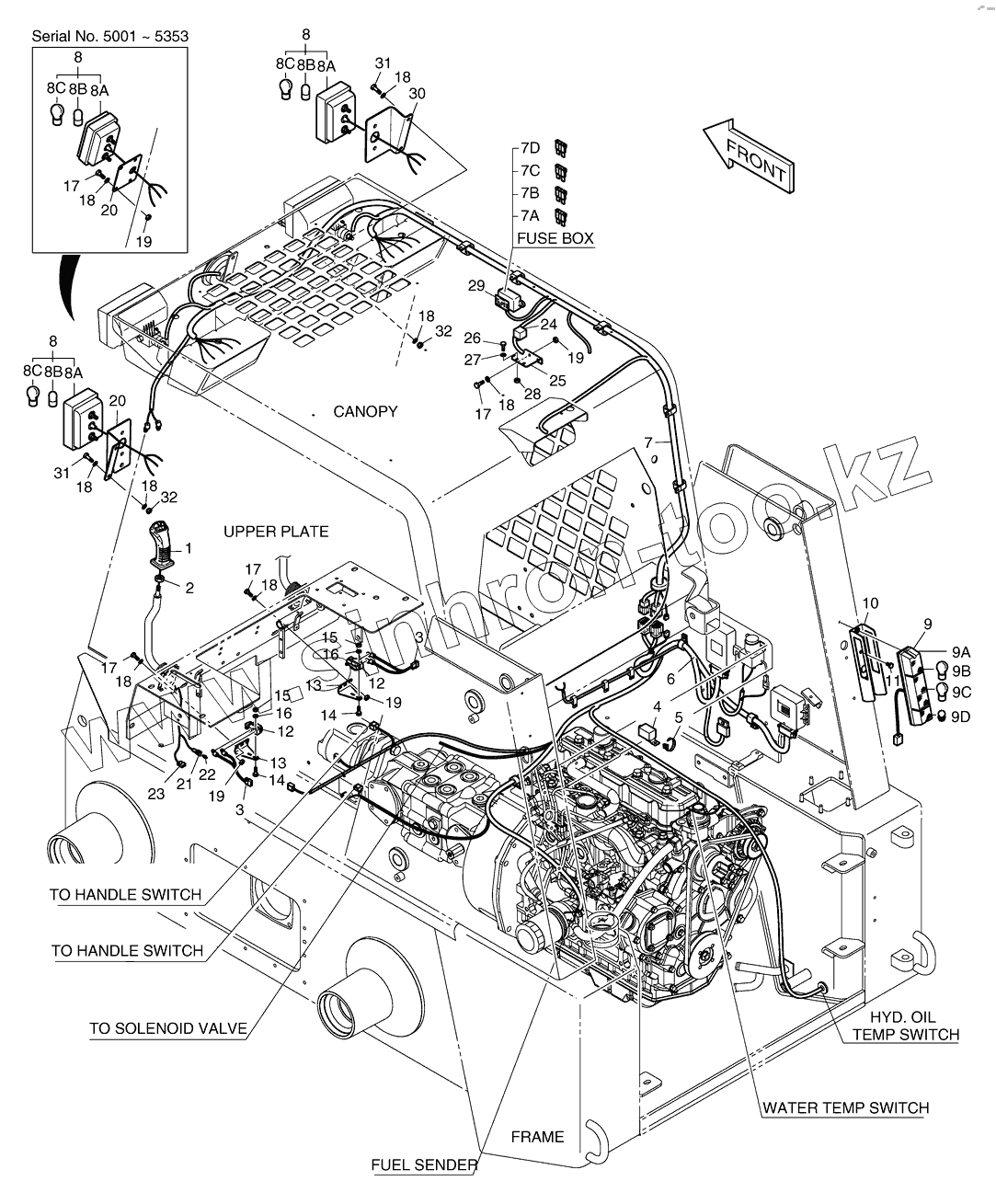

Каталог запасных частей к технике: Doosan Мини-погрузчик 430 Plus. 6220 Дополнительное освещение
1
10
11
12
12
13
13
14
14
15
15
16
16
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
19
19
19
19
19
19
19
2
20
20
20
20
21
22
23
24
25
26
27
28
29
3
3
30
31
31
32
32
4
4
5
6
7
7A
7B
7C
7D
8
8
8
8A
8A
8A
8B
8B
8B
8C
8C
8C
9
9A
9B
9C
9D
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K1021941 | HANDLE | |
| 10 | K1019693 | BRACKET | |
| 11 | K1023128 | SCREW | |
| 12 | K1023015 | SWITCH;LIMIT | |
| 13 | K1019897 | BRACKET | |
| 14 | S3450403 | SCREW | |
| 15 | S4012003 | NUT | |
| 16 | S5000003 | WASHER;PLAIN M3 | |
| 17 | S0504663 | BOLT | |
| 17 | S0504663 | BOLT | |
| 18 | DS0401171 | WASHER;HARDENED | |
| 18 | DS0401171 | WASHER;HARDENED | |
| 19 | S4016333 | NUT | |
| 19 | S4016333 | NUT | |
| 2 | S4030833 | NUT | |
| 20 | K1020226 | PLATE | |
| 20 | K1021965A | BRACKET;LAMP(L.H) | |
| 21 | K1022934 | HOUSING;RECEPTACLE | |
| 22 | K1020088 | PIN;WEDGE LOCK | |
| 23 | K1022963 | HOUSING;PIN | |
| 24 | K1019698 | RELAY;SEALED | |
| 25 | K1020922 | BRACKET | |
| 26 | S3450853 | SCREW M5X0.8X16 | |
| 27 | S5000213 | WASHER;PLAIN | |
| 28 | S4016241 | NUT | |
| 29 | K1021884 | FILM;FUSE DIAGRAM | |
| 3 | K1019700 | HARNESS;PARK | |
| 30 | K1021966A | BRACKET;LAMP(R.H) | |
| 31 | S0504863 | BOLT | |
| 32 | K1023117 | NUT;LOCK | |
| 4 | 2525-1010 | UNIT;BLINKER | |
| 4 | 2525-1012 | UNIT;BLINKER | |
| 5 | K1022971 | CLIP;BAND | |
| 6 | K1021859 | HARNESS;ENGINE | |
| 7 | K1021860 | HARNESS;CANOPY | |
| 7A | K1019105 | FUSE 5A | |
| 7B | K1019052 | FUSE 10A | |
| 7C | K1022925 | FUSE 15A | |
| 7D | K1022931 | FUSE 30A | |
| 8 | K1020957 | LAMP;HEAD | |
| 8A | K1024671 | LAMP;COMBI | |
| 8B | S863105H | BULB 12V 5W | |
| 8C | S864121H | BULB 12V 21W | |
| 9 | K1022950 | REAR LAMP ASS'Y | |
| 9A | K1022952 | CASE;LAMP | |
| 9B | S864123H | BULB 12V 23W | |
| 9C | S866123H | BULB 12V 23/8W | |
| 9D | S863110H | BULB 12V 10W | |
| K1023377 | K1023377 | LIGHTING SYSTEM |
