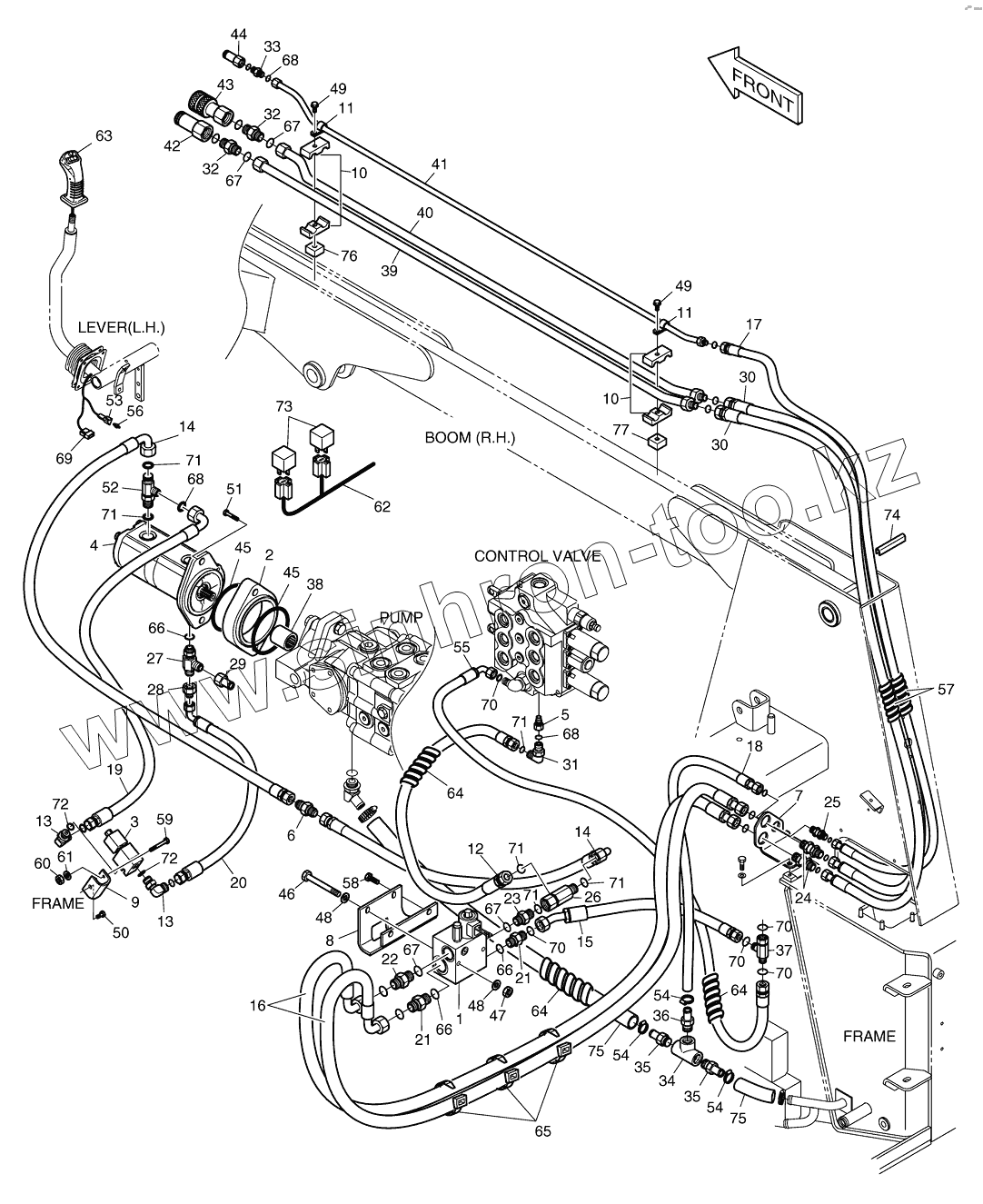

Каталог запасных частей к технике: Doosan Мини-погрузчик 430 Plus. 6200 Гидросистема
1
10
10
11
11
12
13
13
14
14
15
16
17
18
19
2
20
21
21
22
23
24
25
26
27
28
29
3
30
30
31
32
32
33
34
35
35
36
37
38
38
39
4
40
41
42
43
44
45
45
46
47
48
48
49
49
5
50
51
52
53
54
54
54
55
56
57
58
59
6
60
61
62
63
64
64
64
65
66
66
66
67
67
67
67
68
68
68
69
7
70
70
70
70
70
71
71
71
71
71
71
72
72
73
74
75
75
76
77
8
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K1019925 | VALVE;SOLENOID | |
| 10 | K1019926 | CLAMP;TUBE | |
| 11 | K1020101 | CLIP | |
| 12 | DS2011332 | HOSE | |
| 13 | K1023066 | ELBOW | |
| 14 | DS2013819 | HOSE | |
| 15 | DS2012049 | HOSE | |
| 16 | DS2013294 | HOSE | |
| 17 | K1020457 | HOSE | |
| 18 | DS2019004 | HOSE | |
| 19 | DS2013296 | HOSE | |
| 2 | K1020963 | SPACER | |
| 20 | DS2013297 | HOSE | |
| 21 | K1020080 | ADAPTER | |
| 22 | K1020081 | ADAPTER | |
| 23 | K1020082 | ADAPTER | |
| 24 | K1020217 | ADAPTER | |
| 25 | K1020458 | ADAPTER | |
| 26 | K1020083 | TEE | |
| 27 | K1020459 | TEE | |
| 28 | K1020460 | REDUCER | |
| 29 | K1020461 | ADAPTER | |
| 3 | K1019924 | VALVE;SOLENOID | |
| 30 | K1020467 | HOSE | |
| 31 | K1020077 | ELBOW | |
| 32 | K1020462 | ADAPTER | |
| 33 | K1020463 | ADAPTER | |
| 34 | K1020084 | TEE | |
| 35 | K1020103 | ADAPTER | |
| 36 | K1020102 | ADAPTER | |
| 37 | K1020085 | TEE | |
| 38 | K1019965 | COUPLING | |
| 38 | K1022685 | COUPLING | |
| 39 | K1020464 | TUBE | |
| 4 | K1022721 | PUMP;GEAR | |
| 40 | K1020465 | TUBE | |
| 41 | K1020466 | TUBE | |
| 42 | K1020074 | COUPLER | |
| 43 | K1020075 | COUPLER | |
| 44 | K1020073 | COUPLER | |
| 45 | K1022499 | O-RING | |
| 46 | S0559463 | BOLT;HEX. | |
| 47 | S4016633 | NUT | |
| 48 | K1023147 | WASHER;HARDENED | |
| 49 | S0556663 | BOLT | |
| 5 | K1020093 | SLEEVE | |
| 50 | S0508863 | BOLT | |
| 51 | K1019077 | BOLT | |
| 52 | K1020076 | TEE | |
| 53 | K1022934 | HOUSING;RECEPTACLE | |
| 54 | S8450023 | CLAMP | |
| 55 | DS2013292 | HOSE | |
| 56 | K1020088 | PIN;WEDGE LOCK | |
| 57 | K1019878 | PROTECTOR;HOSE | |
| 58 | S0562563 | BOLT | |
| 59 | S0553663 | BOLT | |
| 6 | K1019934 | VALVE;CHECK | |
| 60 | S4012343 | NUT | |
| 61 | K1023148 | WASHER;HARDENED | |
| 62 | K1020532 | HARNESS;HIGH FLOW | |
| 63 | K1021941 | HANDLE | |
| 64 | K1022550 | PROTECTOR;HOSE (L=110CM) | |
| 65 | K1022971 | CLIP;BAND | |
| 66 | S8040161 | O-RING | |
| 67 | S8040121 | O-RING | |
| 68 | S8040101 | O-RING | |
| 69 | K1022963 | HOUSING;PIN | |
| 7 | K1020604 | BRACKET | |
| 70 | S8030121 | O-RING | |
| 71 | S8030101 | O-RING | |
| 72 | S8030081 | O-RING | |
| 73 | K1019698 | RELAY;SEALED | |
| 74 | K1019747 | STRIP;BULK | |
| 75 | K1022543 | HOSE;BULK (L=100CM) | |
| 76 | K1020209 | BLOCK | |
| 77 | K1020210 | BLOCK | |
| 8 | K1019920 | BRACKET | |
| 9 | K1019923 | BRACKET | |
| K1023365A | K1023365A | HIGH FLOW ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
