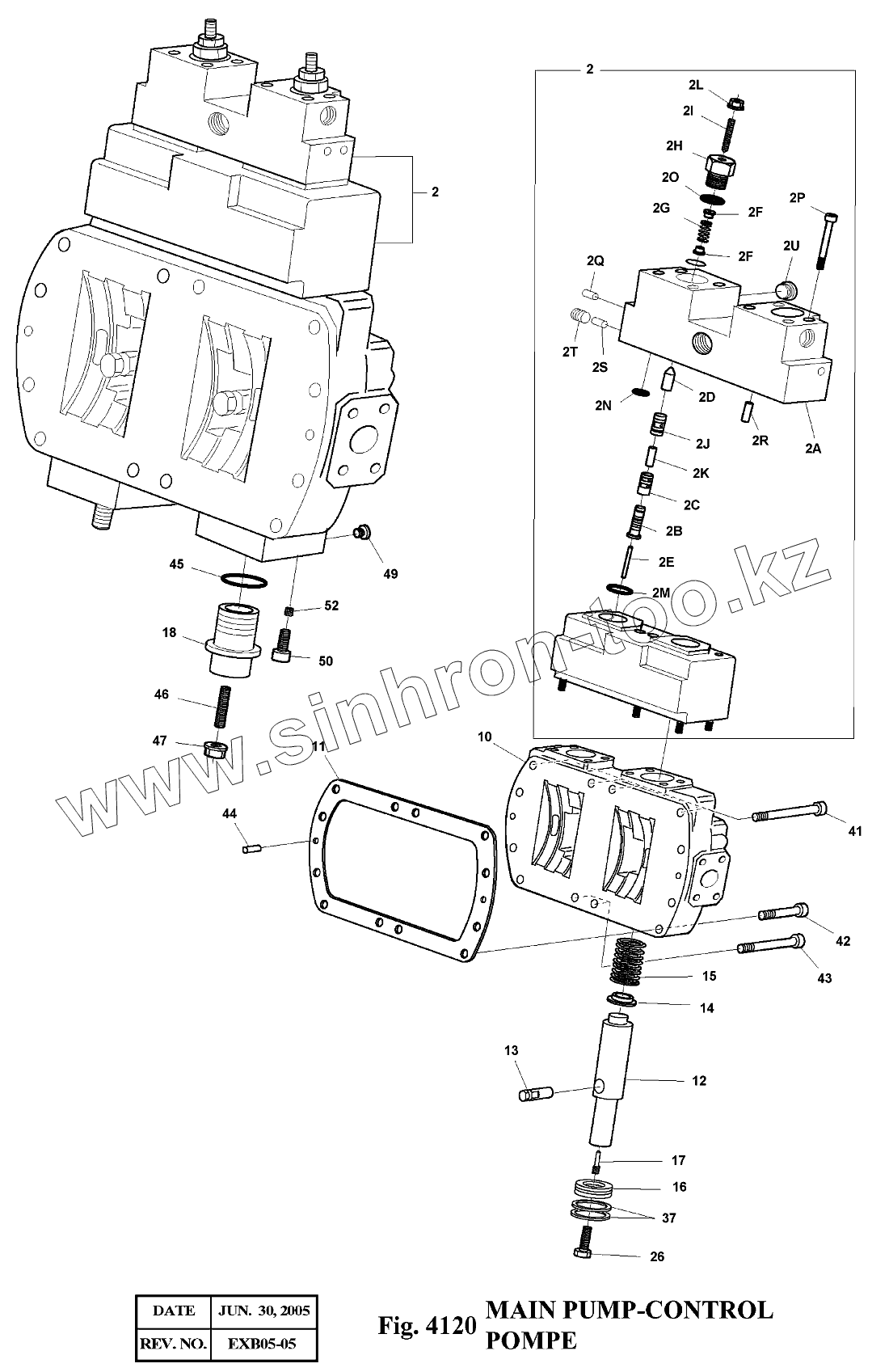

Каталог запасных частей к технике: Doosan Экскаватор SOLAR 175LC-V. 4120 Насос
2
2
10
11
12
13
14
15
16
17
18
26
37
41
42
43
44
45
46
46
46
46
46
46
46
46
46
47
49
50
52
201
202
203
204
205
206
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 02075238 | CONTROL MODULE | |
| 10 | 02057270 | HOUSING;CONTROL | |
| 11 | 09650390 | GASKET | |
| 12 | 09921928 | PISTON;POSITIONING | |
| 13 | 09430407 | TRUNNION;POSITIONING | |
| 14 | 02075207 | COLLAR;SPRING | |
| 15 | 09426151 | SPRING;PRESSURE | |
| 16 | 09921930 | PISTON | |
| 17 | 09445056 | PIN;THREADED | |
| 18 | 02060495 | SCREW;LOCKING | |
| 26 | 09086138 | SCREW;HEX | |
| 37 | 09156962 | RING;SQUARE | |
| 41 | 09083071 | SCREW;SOCKET M10X70 | |
| 42 | 09083065 | SCREW;SOCKET M10X45 | |
| 43 | 09083068 | SCREW;SOCKET M10X60 | |
| 44 | 09152600 | PIN;CYLINDER | |
| 45 | 09083764 | O-RING | |
| 46 | 09083522 | PIN;THREADED M10X30 | |
| 46 | 09086752 | PIN;THREADED M10X50 | |
| 46 | 09153779 | PIN;THREADED M10X70 | |
| 46 | 09154058 | PIN;THREADED M10X80 | |
| 46 | 09154690 | PIN;THREADED M10X60 | |
| 46 | 09156717 | PIN;THREADED M10X90 | |
| 46 | 09157215 | PIN;THREADED M10X100 | |
| 46 | 09447151 | PIN;THREADED | |
| 46 | 09831094 | PIN;THREADED M10X110 | |
| 47 | 09152426 | NUT;SEAL LOCK | |
| 49 | 09831318 | PIN;DOUBLE BREAK-OFF | |
| 50 | 09151692 | SCREW | |
| 52 | 09153371 | SCREW | |
| 201 | 02063904 | HOUSING;CONTROL | |
| 202 | 02054797 | PISTON;CONTROL | |
| 203 | 02054798 | BUSH;CONTROL | |
| 204 | 02009638 | PISTON;POSITIONING | |
| 205 | 02045222 | PIN | |
| 206 | 09430649 | COLLAR;SPRING | |
| 207 | 09650259 | SPRING;PRESSURE | |
| 208 | 09436380 | SCREW;LOCKING | |
| 209 | 09420991 | PIN;THREADED | |
| 210 | 02063693 | BUSH;CONTROL | |
| 211 | 02063694 | PISTON;CONTROL | |
| 212 | 09152425 | NUT;SEAL LOCK | |
| 213 | 09086730 | O-RING | |
| 214 | 02600655 | O-RING | |
| 215 | 09083757 | O-RING | |
| 216 | 09083027 | SCREW;SOCKET-HEAD | |
| 217 | 09831318 | PIN;DOUBLE BREAK-OFF | |
| 218 | 09084149 | PIN;CYLINDER | |
| 219 | 09831319 | PIN;DOUBLE BREAK-OFF | |
| 220 | 02600705 | PLUG | |
| 221 | 09151979 | SCREW;LOCKING | |
| 02075239 | 02075239 | CONTROL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
