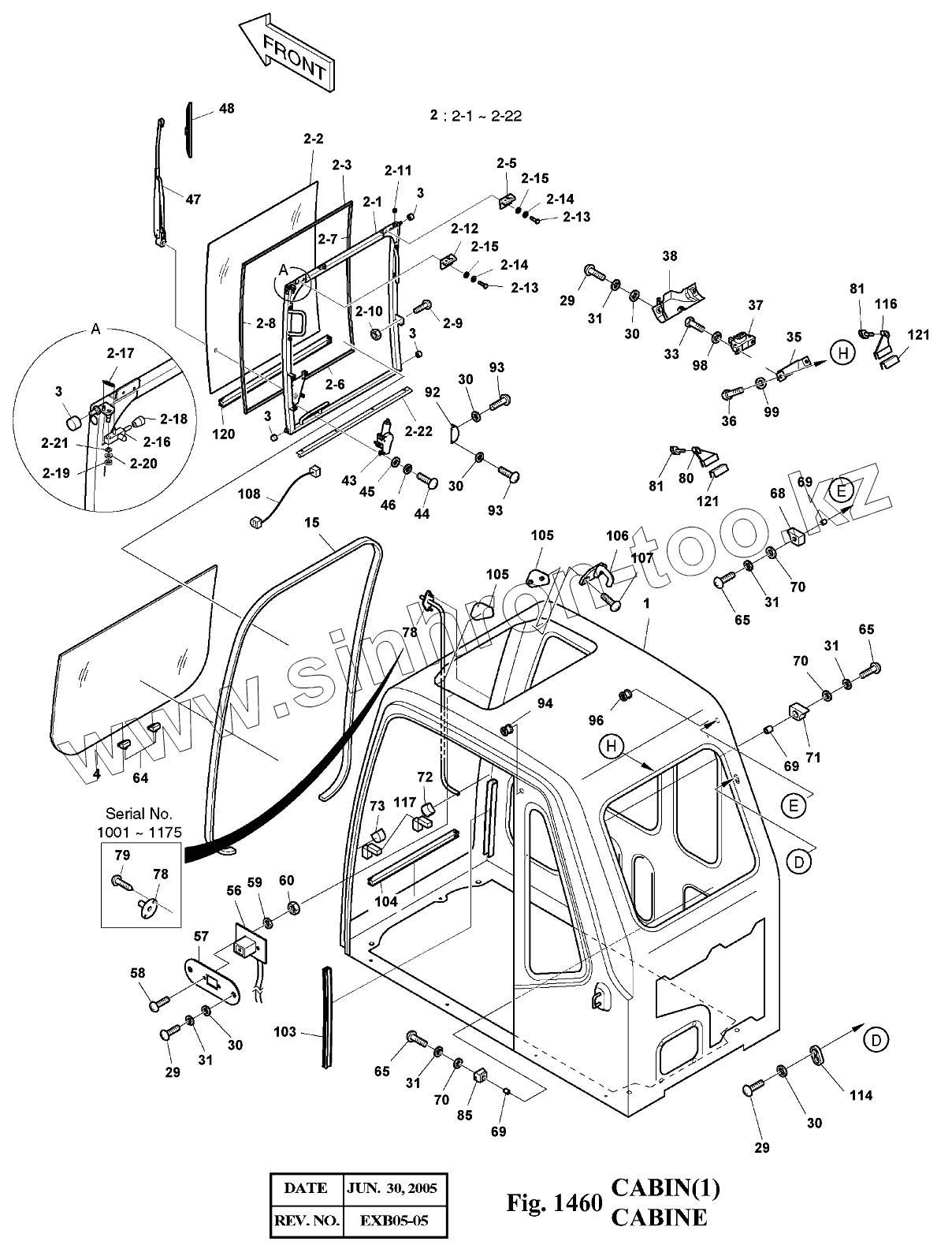

Каталог запасных частей к технике: Doosan Экскаватор SOLAR 175LC-V. 1460 Кабина
1
2
2
3
3
3
3
4
15
29
29
29
30
30
30
30
30
31
31
31
31
31
33
35
36
37
38
43
44
45
46
47
48
56
57
58
59
60
64
65
65
65
68
69
69
69
70
70
70
71
72
73
78
78
78
78
79
80
81
81
85
92
93
93
94
96
98
99
103
104
104
104
105
105
106
107
108
114
116
117
117
120
120
121
121
201
201
201
201
202
202
203
203
205
205
206
206
207
207
208
208
209
209
2010
2010
2011
2011
2012
2012
2013
2013
2013
2014
2014
2014
2015
2015
2015
2016
2016
2017
2017
2018
2018
2019
2019
2020
2020
2021
2021
2022
2022
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | BUCKET;WELD | ||
| 2 | 622-00191B | DOOR ASS'Y;FRONT | |
| 2 | 622-00191C | DOOR ASS'Y;FRONT | |
| 3 | 2154-1033 | ROLLER | |
| 4 | 903-00049 | GLASS;FRONT LOWER | |
| 15 | 162-00025A | STRIP;WEATHER 3800L | |
| 29 | S3450973 | SCREW M6X1.0X16 | |
| 30 | S5010313 | WASHER;PLAIN | |
| 31 | S5102303 | WASHER;SPRING M6 | |
| 33 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 35 | 2197-1711 | BRACKET;AUTO LOCK | |
| 36 | 2120-2166D4 | BOLT M10X1.5X20 | |
| 37 | 2125-9056 | CATCH;AUTO LOCK | |
| 38 | 621-01990 | COVER;AUTO LOCK | |
| 43 | 538-00009 | MOTOR;WIPER | |
| 44 | S3450833 | SCREW M5X0.8X12 | |
| 45 | S5010213 | WASHER PLAIN M5 | |
| 46 | S5102203 | WASHER SPRING M5 | |
| 47 | 2541-6020 | WIPER ARM ASS'Y | |
| 48 | 507-00005 | BLADE;WIPER | |
| 56 | 530-00212 | HARNESS;CABIN LAMP | |
| 57 | 2891-1323 | PLATE | |
| 58 | S3450343 | SCREW M3X0.5X10 | |
| 59 | S5020013 | WASHER;PLAIN M3 | |
| 60 | S4010003 | NUT M3X0.5 | |
| 64 | 2161-2211 | STOPPER;RUBBER | |
| 65 | S3450993 | SCREW M6X1.0X25 | |
| 68 | 2161-2208 | STOPPER;RUBBER RH | |
| 69 | 2140-1338 | PIPE;SPACER | |
| 70 | 2114-1058D52 | WASHER | |
| 71 | 2161-2207 | STOPPER;RUBBER LH | |
| 72 | 2161-2210 | STOPPER;RUBBER RH | |
| 73 | 2161-2209 | STOPPER;RUBBER LH | |
| 78 | 2114-1855 | WASHER ASS'Y | |
| 78 | K1002429 | NOZZLE ASS'Y | |
| 79 | S3643359 | SCREW;TAPPING | |
| 80 | 195-01549A | BRACKET | |
| 81 | 120-00226 | BOLT;KNOB M8X1.25X30 | |
| 85 | 2161-2212 | STOPPER;RUBBER | |
| 92 | 621-01991 | COVER;WIPER MOTOR | |
| 93 | S3450953 | SCREW M6X1.0X12 | |
| 94 | 110-00230 | BUSHING;RUBBER | |
| 96 | 2160-1310 | BUSHING;RUBBER | |
| 98 | 2114-1898D2 | WASHER M8 | |
| 99 | 2114-1058D45 | WASHER M10 | |
| 103 | 2160-1026 | TRIM | |
| 104 | 162-00027 | STRIP;WEATHER L=920 | |
| 104 | 162-00027 | STRIP;WEATHER L=920 | |
| 104 | 2160-1023 | RUBBER;CUSHION | |
| 105 | 160-00038 | RUBBER | |
| 106 | 142-00067 | STRIKER | |
| 107 | S3453118 | SCREW M8X1.25X20 | |
| 108 | 530-00251 | HARNESS;W/MOTOR JOINT | |
| 114 | 2514-1013 | HOLDER | |
| 116 | 195-02099 | BRACKET | |
| 117 | 2161-2289 | RUBBER;CUSHION | |
| 117 | 2161-2289A | RUBBER;CUSHION | |
| 120 | 162-00030 | STRIP;WEATHER | |
| 120 | 198-00036A | STRIP;WEATHER | |
| 121 | 162-00031 | TRIM;RUBBER | |
| 201 | 622-00194B | DOOR;FRONT | |
| 201 | 622-00194C | DOOR;FRONT | |
| 202 | 903-00055A | GLASS 6.76T | |
| 203 | 161-00395 | DAMPER | |
| 205 | 125-00031A | CATCH | |
| 206 | 161-00395 | DAMPER | |
| 207 | 161-00395 | DAMPER | |
| 208 | 161-00395 | DAMPER | |
| 209 | 2161-2069 | STOPPER | |
| 2010 | S4032633 | NUT M10X1.25 | |
| 2011 | 2110-1347 | BUSH 135L | |
| 2012 | 125-00043 | CATCH | |
| 2013 | 2120-2166D36 | BOLT M6X1.0X20 | |
| 2014 | 2114-2031D3 | WASHER;SPRING M6 | |
| 2015 | 2114-1898D3 | WASHER | |
| 2016 | 133-00168 | BAR | |
| 2017 | 129-00146A | SPRING | |
| 2018 | 2160-1307 | CAP;RUBBER | |
| 2019 | S4012533 | NUT M8X1.25 | |
| 2020 | 2114-1898D2 | WASHER M8 | |
| 2021 | S5102503 | WASHER;SPRING | |
| 2022 | K1000868 | RUBBER 920L | |
| 622-00177J | 622-00177J | CABIN ASS'Y | |
| 622-00177K | 622-00177K | CABIN ASS'Y | |
| 622-00177L | 622-00177L | CABIN ASS'Y | |
| 622-00177M | 622-00177M | CABIN ASS'Y | |
| 622-00177N | 622-00177N | CABIN ASS'Y | |
| 622-00177P | 622-00177P | CABIN ASS'Y | |
| 622-00177Q | 622-00177Q | CABIN ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
