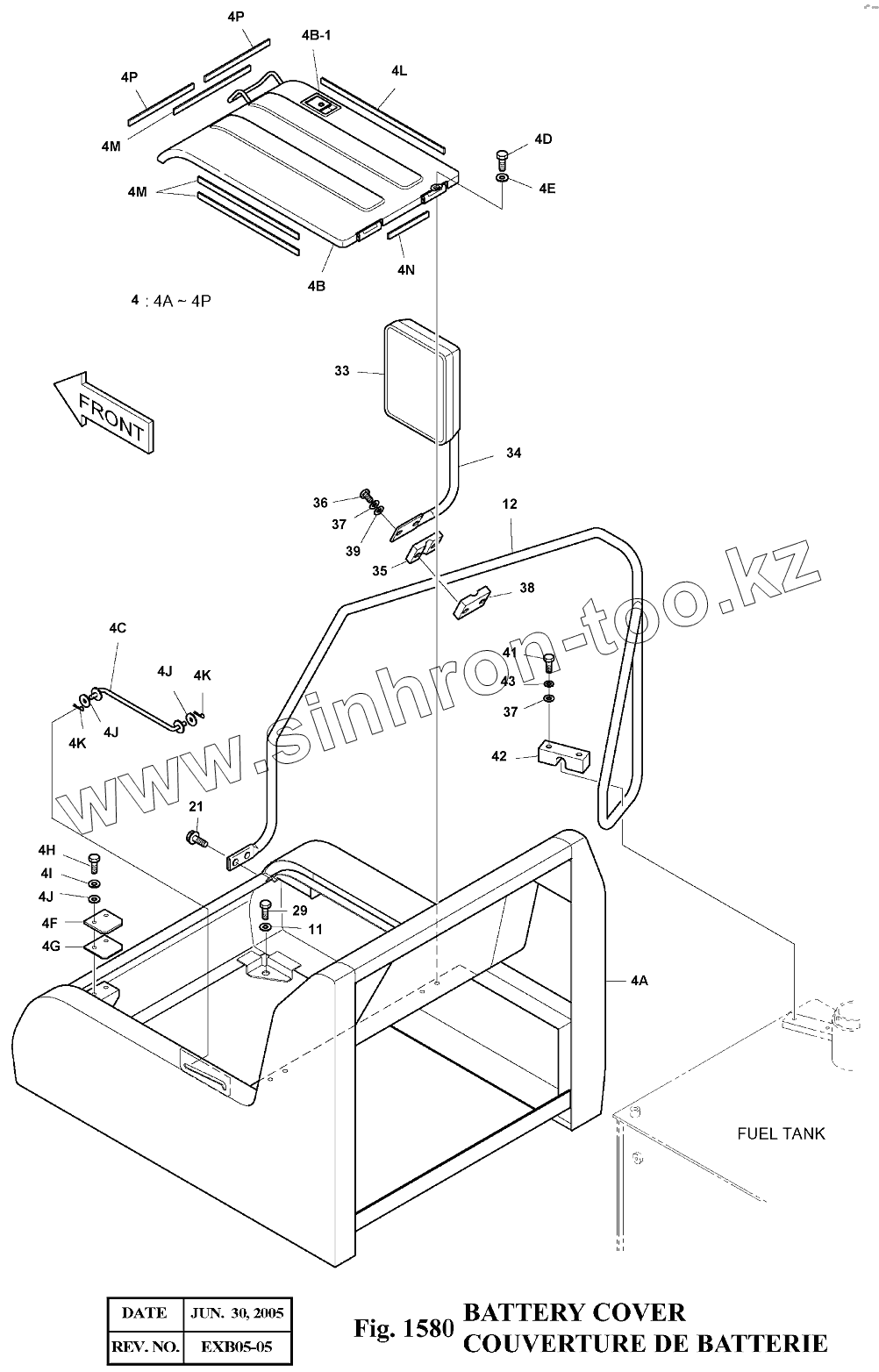

Каталог запасных частей к технике: Doosan Экскаватор SOLAR 140LC-V. 1580 Крышка аккумуляторной батареи
4
4
4
4
11
12
12
21
29
33
33
34
35
36
37
37
38
39
41
42
43
401
401
402
402
402
402
402
402
402
402
403
403
404
404
405
405
406
406
407
407
408
408
409
409
410
410
410
410
411
411
411
412
412
413
413
413
414
414
416
416
416
4021
4021
4021
4021
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4 | 621-03105A | BATTERY COVER ASS'Y | |
| 4 | 621-03105B | BATTERY COVER ASS'Y | |
| 4 | 621-03105C | BATTERY COVER ASS'Y | |
| 4 | 621-03105E | BATTERY COVER ASS'Y | |
| 11 | 2114-1058D30 | WASHER;PLAIN | |
| 12 | 145-00045B | STAY | |
| 12 | 145-00045C | STAY | |
| 21 | 2120-2196D11 | BOLT;SET | |
| 29 | S0515253 | BOLT M12X1.75X30 | |
| 33 | 2903-9012A | MIRROR;MAIN | |
| 33 | 903-00068 | MIRROR;MAIN | |
| 34 | 145-00052 | STAY | |
| 35 | 124-00216 | CLAMP | |
| 36 | S0561053 | BOLT M12X1.75X65 | |
| 37 | S5102703 | WASHER;SPRING M10 | |
| 38 | 124-00217 | CLAMP | |
| 39 | S5010713 | WASHER;PLAIN | |
| 41 | S0561053 | BOLT M12X1.75X65 | |
| 42 | 124-00246 | CLAMP | |
| 43 | 2114-1154 | WASHER | |
| 401 | 621-03104 | COVER;BATTERY | |
| 402 | 2627-1726C | COVER | |
| 402 | 621-01693C | COVER | |
| 402 | 621-01693E | COVER | |
| 402 | 621-01693G | COVER | |
| 403 | 2145-1243 | STAY | |
| 404 | S0512053 | BOLT M10X1.5X25 | |
| 405 | S5010613 | WASHER;PLAIN | |
| 406 | 2621-3003A | PLATE | |
| 407 | 2114-1727A | SHIM PL1.2 | |
| 408 | S0555753 | BOLT M8X1.25X25 | |
| 409 | S5010513 | WASHER;PLAIN M8 | |
| 410 | 2114-1058D29 | WASHER | |
| 411 | 2705-9002 | PIN;LOCK | |
| 412 | BUCKET;WELD | ||
| 413 | BUCKET;WELD | ||
| 414 | BUCKET;WELD | ||
| 416 | BUCKET;WELD | ||
| 4021 | 125-00082 | LOCK | |
| 4021 | 125-00082A | LOCK | |
| 4021 | 125-00085 | LOCK | |
| 4021 | K1006422 | LOCK | |
| 621-02753 | 621-02753 | COVER ASS'Y |
