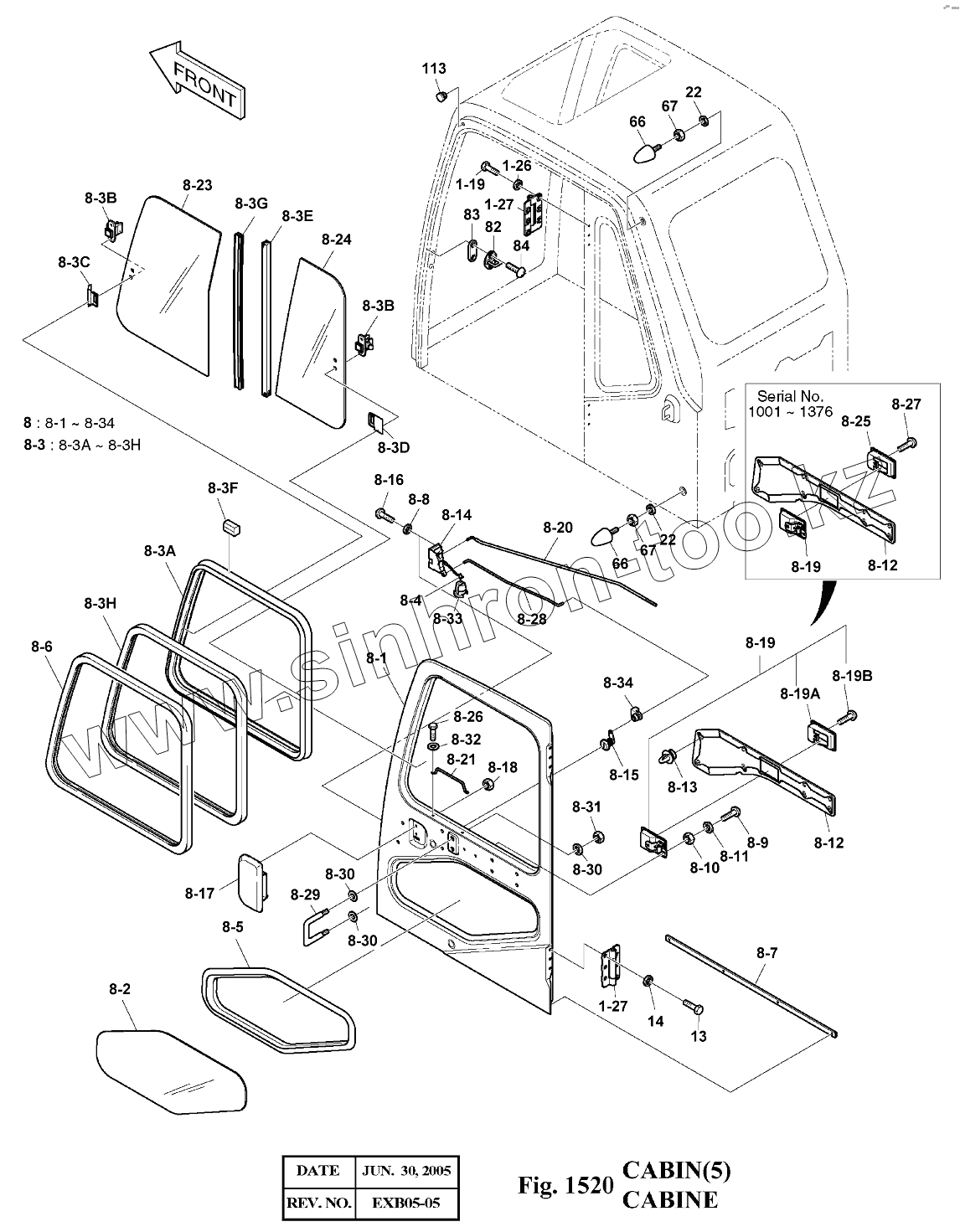

Каталог запасных частей к технике: Doosan Экскаватор SOLAR 140LC-V. 1520 Кабина
8
8
8
13
14
22
22
66
66
67
67
82
83
84
113
801
802
803
804
805
806
807
808
809
1019
1026
1027
1027
8010
8011
8012
8012
8013
8014
8015
8015
8016
8017
8018
8019
8019
8019
8019
8020
8021
8023
8024
8025
8026
8027
8028
8029
8030
8030
8030
8031
8031
8032
8032
8032
8033
8033
8034
8034
8035
8036
8037
8038
8191
8192
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 8 | 622-00219B | PANEL;DOOR ASS'Y | |
| 8 | 622-00219C | PANEL;DOOR ASS'Y | |
| 8 | 622-00219G | PANEL;DOOR ASS'Y | |
| 13 | S0512263 | BOLT M10X1.5X30 | |
| 14 | 2114-1058D45 | WASHER M10 | |
| 22 | S5010613 | WASHER;PLAIN | |
| 66 | 2161-2226 | STOPPER | |
| 67 | S4014633 | NUT M10 | |
| 82 | 2142-9005 | STRIKER;DOOR LOCK | |
| 83 | 2114-1856 | SHIM;STRIKER 1.0T | |
| 84 | 2120-2150D1 | BOLT M10X1.5X25 | |
| 113 | 2161-2227 | STOPPER;RUBBER | |
| 801 | 622-00242 | PANEL ASM;DOOR | |
| 802 | 2903-1214 | GLASS;DOOR t=5 | |
| 803 | BUCKET;WELD | ||
| 804 | 2123-2247 | PIN | |
| 805 | 2198-1054 | S-RUBBER;DOOR | |
| 806 | 2161-2229 | FINISHER;SASH DOOR | |
| 807 | 2180-1267 | SEAL;DOOR | |
| 808 | S5210303 | WASHER;TOOTHED LOCK | |
| 809 | S3450833 | SCREW M5X0.8X12 | |
| 1019 | S0512263 | BOLT M10X1.5X30 | |
| 1026 | 2114-1058D45 | WASHER M10 | |
| 1027 | 2171-1078 | HINGE | |
| 8010 | S5010213 | WASHER PLAIN M5 | |
| 8011 | S5102203 | WASHER SPRING M5 | |
| 8012 | 161-00428A | PAD;DOOR | |
| 8013 | 2124-1607 | TRIM CLIP | |
| 8014 | 2125-9036 | CATCH;DOOR LOCK | |
| 8015 | 172-00212 | CYLINDER;KEY | |
| 8015 | K1003900 | CYLINDER;KEY | |
| 8016 | 2120-2150D3 | BOLT M6X1.0X16 | |
| 8017 | 2172-9021 | HANDLE;OUTER | |
| 8018 | S4012303 | NUT M6X1.0 | |
| 8019 | 2172-9022 | HANDLE;INNER | |
| 8019 | K1004085 | HANDLE;INNER | |
| 8020 | 2136-1431 | ROD;HANDLE INNER DOOR | |
| 8021 | 2172-1110B | HANDLE;DOOR | |
| 8022 | 2161-2227 | STOPPER;RUBBER | |
| 8023 | 2903-1219A | GLASS 5T | |
| 8024 | 2903-1220 | GLASS 5T | |
| 8025 | 2621-9005 | COVER;HANDLE | |
| 8026 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 8027 | S3452823 | SCREW M5X0.8X10 | |
| 8028 | 2123-2239A | ROD;DOOR LOCK | |
| 8029 | 2150-1132A | HOOK;CATCH DOOR | |
| 8030 | 2891-1311 | PLATE;PLAIN | |
| 8031 | 2622-6014 | SASH | |
| 8031 | S4012533 | NUT M8X1.25 | |
| 8032 | 2114-1898D2 | WASHER M8 | |
| 8032 | 2123-6119 | DOOR LOCK | |
| 8033 | 2116-6006 | STOPPER;LOCK | |
| 8033 | 2124-1689A | ROD;SNAP | |
| 8034 | 124-00010 | CLIP;ROD | |
| 8034 | 2116-6007 | STOPPER;LOCK | |
| 8035 | 2731-6002 | BAR;SEAL | |
| 8036 | 2161-6063 | STOPPER;CLASS | |
| 8037 | 2731-6003 | BAR;CENTER | |
| 8038 | 2161-6060 | RUN CHANNEL | |
| 8191 | 2621-9005 | COVER;HANDLE | |
| 8192 | S3452823 | SCREW M5X0.8X10 | |
| 622-00177L | 622-00177L | CABIN ASS'Y | |
| 622-00177M | 622-00177M | CABIN ASS'Y | |
| 622-00177N | 622-00177N | CABIN ASS'Y | |
| 622-00177Q | 622-00177Q | CABIN ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
