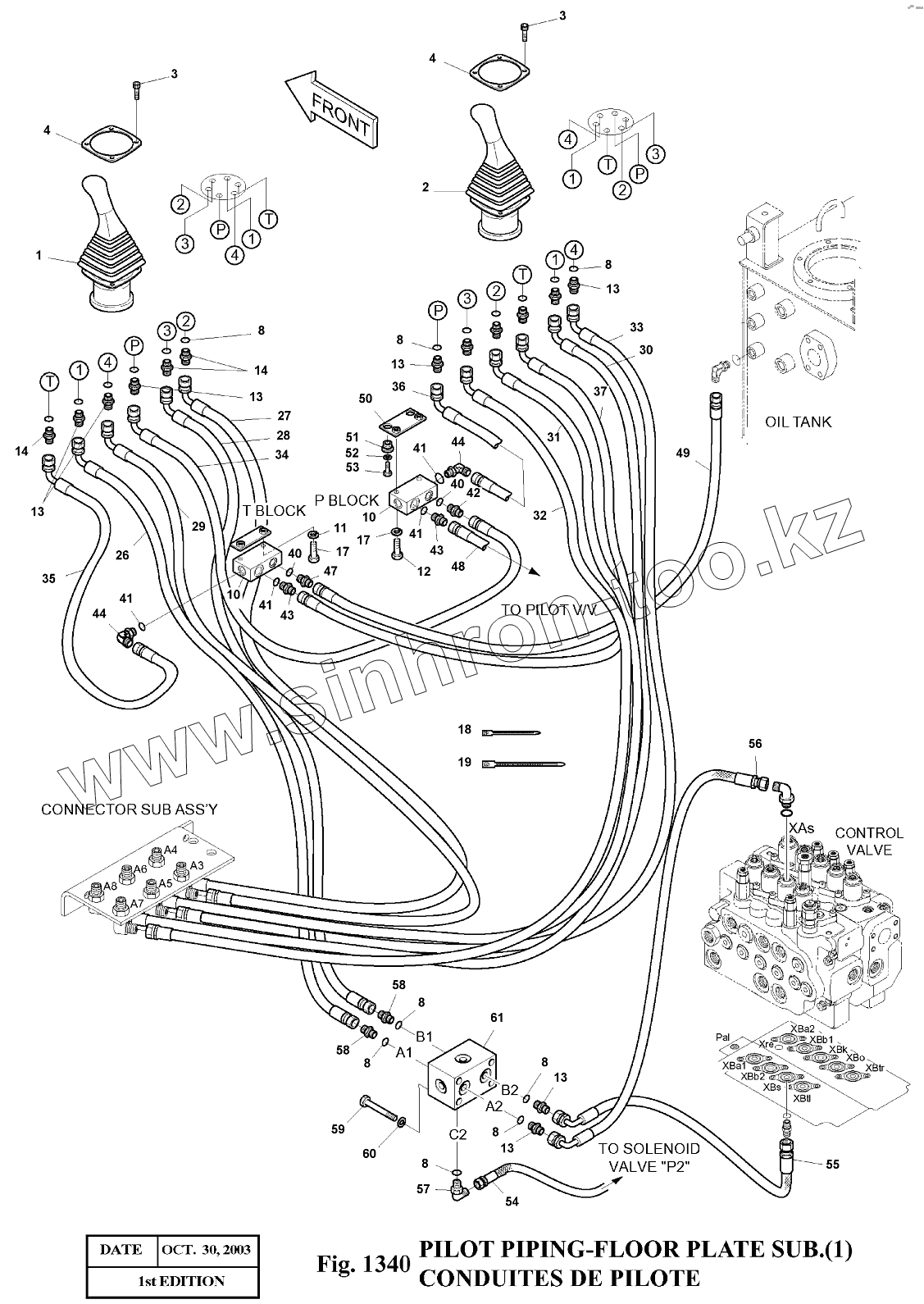

Каталог запасных частей к технике: Doosan Экскаватор SOLAR 140LC-V. 1340 Трубопроводы управления
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
8
8
8
8
8
8
8
8
10
10
11
12
13
13
13
13
13
13
14
14
17
17
18
19
26
27
28
29
30
31
32
33
34
35
36
37
40
40
41
41
41
41
42
43
43
44
44
47
48
49
50
51
52
53
54
55
56
57
58
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 420-00342A | REMOTE CONTROL VALVE(L.H) | |
| 2 | 420-00343A | REMOTE CONTROL VALVE(R.H) | |
| 3 | S2205066 | BOLT;SOCKET M6X1.0X25 | |
| 4 | 2621-2752 | PLATE | |
| 8 | S8000111 | O-RING | |
| 10 | 2423-1470 | BLOCK | |
| 11 | S0558653 | BOLT M10X1.5X55 | |
| 12 | S0558753 | BOLT M10X1.5X60 | |
| 13 | 2181-1126D89 | ADAPTER | |
| 14 | 2181-1126D120 | ADAPTER PFO1/4-PF3/8 | |
| 17 | S5102603 | WASHER;SPRING M10 | |
| 18 | 2124-1622D1 | CLIP;BAND (146L) | |
| 19 | 2124-1622D2 | CLIP;BAND (200L) | |
| 26 | 2184-1267D3 | HOSE PF3/8-1700L | |
| 27 | 2184-1267D14 | HOSE PF3/8-1600L | |
| 28 | 2184-1267D3 | HOSE PF3/8-1700L | |
| 29 | 2184-1267D14 | HOSE PF3/8-1600L | |
| 30 | 2184-1060D145 | HOSE PF3/8-1700L | |
| 31 | 2184-1060D145 | HOSE PF3/8-1700L | |
| 32 | 2184-1060D145 | HOSE PF3/8-1700L | |
| 33 | 2184-1060D145 | HOSE PF3/8-1700L | |
| 34 | 2184-1267D9 | HOSE PF3/8-1950L | |
| 35 | 2184-1267D10 | HOSE PF3/8-2050L | |
| 36 | 2184-1060D151 | HOSE PF3/8-1950L | |
| 37 | 2184-1060D151 | HOSE PF3/8-1950L | |
| 40 | S8000181 | O-RING | |
| 41 | S8000141 | O-RING | |
| 42 | 2471-1135 | FILTER;ADAPTER | |
| 43 | 2181-1126D7 | ADAPTER PFO3/8-PF3/8 | |
| 44 | 2181-1702D5 | ELBOW PF3/8-PF3/8 | |
| 47 | 2181-1126D6 | ADAPTER | |
| 48 | 2184-1026D392 | HOSE PF1/2-3300L | |
| 49 | 2184-1026D273 | HOSE PF1/2-3000L | |
| 50 | 621-02151 | PLATE | |
| 51 | 198-00016 | RUBBER | |
| 52 | 2114-1058D10 | WASHER | |
| 53 | S0512253 | BOLT M10X1.5X30 | |
| 54 | 2184-1045D100 | HOSE PF1/4-2300L | |
| 55 | 2184-1046D284 | HOSE PF3/8-1800L | |
| 56 | 2184-1046D116 | HOSE PF3/8-2000L | |
| 57 | 2181-1702D4 | ELBOW | |
| 58 | 2181-1126D89 | ADAPTER | |
| 59 | S0556453 | BOLT M8X1.25X55 | |
| 60 | S5102503 | WASHER;SPRING | |
| 61 | 2420-9158 | VALVE;SHUTTLE | |
| 400-01359 | 400-01359 | PILOT PIPING;FLOOR PLATE SUB. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
