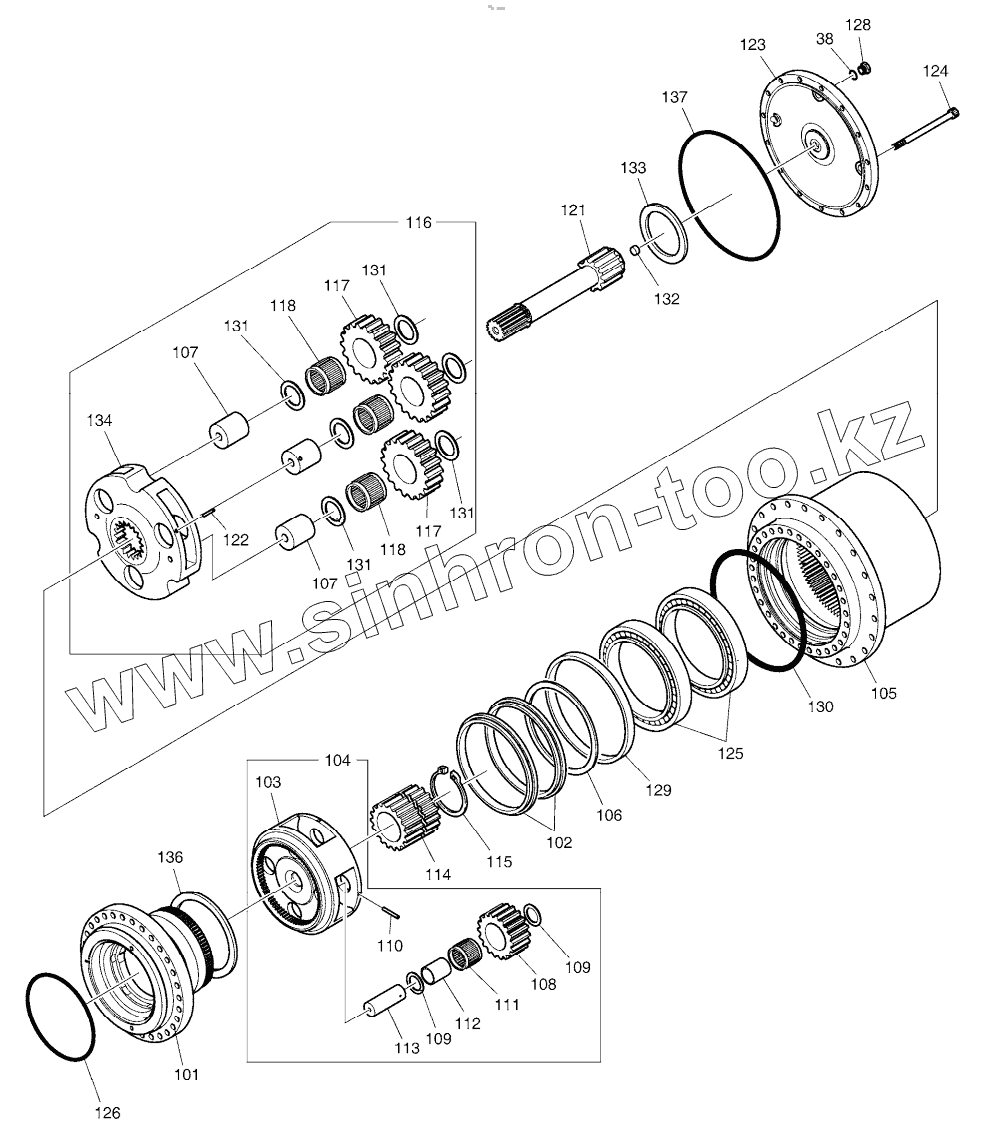

К9007395А
38
101
101
102
103
104
105
105
106
107
107
108
109
109
110
111
112
113
114
115
116
117
117
118
118
121
122
123
123
124
125
126
128
129
129
130
131
131
131
131
132
133
134
136
137
Позиция на иллюстрации
Заводской номер детали
Название детали
170402-00028
170402-00028
REDUCTION GEAR
К9007395А
К9007395А
SHIM
K9007404
K9007404
REDUCTION GEAR
38
S8000181
O-RING
101
K9007383
SPINDLE
101
K9007383A
SPINDLE
102
1180-00512
SEAL, FLOATING
103
CARRIER
Carrier, planet
104
K9007412
CARRIER NO 2 ASSY
105
K9007384
HUB
105
900122-00079
HUB
106
1540-00003
PIECE, DISTANCE
107
K9007388
BEARING, SHAFT
108
K9007393
GEAR, PLANETARY
109
K9007394
WASHER, THRUST
110
S5740960
Pin, spring
111
K9007402
BEARING, NEEDLE
112
K9007396
BUSH, FLOATING
113
K9007392
SHAFT
114
K9007391
GEAR, SUN
115
S6500750
RING, RETAINING
116
K9007411
CARRIER NO 1 ASSY
117
K9007387
GEAR, PLANETARY
118
1216-00017
CAGE, NEEDLE
121
K9007390
GEAR, DRIVE
122
S5740770
PIN, SPRING
123
K9007385
COVER
123
110508-09675
COVER
124
S2212266
BOLT;SOCKET M10X1.5X30
125
K9007403
BEARING, ANGULAR BALL
126
S8012300
O-ring
128
2181-1890D4
Plug
129
K9007386
RING, SEAL
129
K9007386A
RING, SEAL
130
1180-00144
O-RING
131
K9007389
WASHER, THRUST
132
K9004304
WASHER, THRUST
133
1412-00157
PLATE, THRUST
134
CARRIER
Carrier, planet
136
К9007395
PLATE, SHIM
137
401002-00739
RING,0
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
