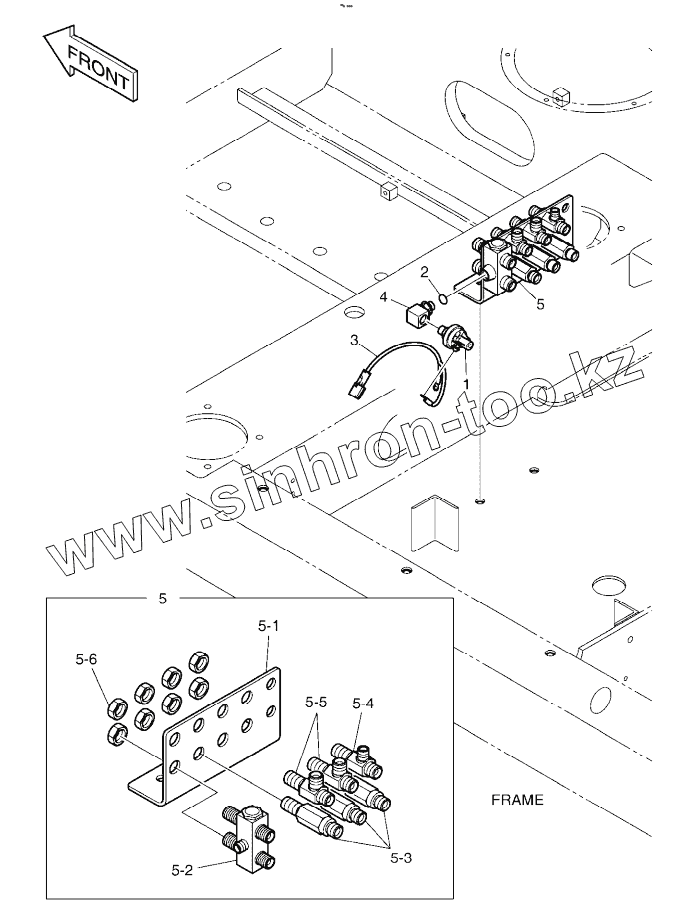

SWING ALARM
420212-00478
420212-00478
PIPING,PILOT, S/ALARM
1
549-00010
SWITCH;PRESSURE
2
S8000111
O-RING
3
530-00067
Harness
4
2181-2295D4
ELBOW PFO1/4-PF1/4
4
K1002778
ELBOW PF1/4-UNF1/2-20
5
K1044409
JOINT PLATE, SUB ASSY
5
430216-00005
JOINT PLATE SUB ASSY
5-1
K1000354
BRACKET, JOINT
5-2
420-00282
VALVE, SHUTTLE
5-3
DS2410009
ADAPTER
5-4
181-00086D1
TEE 2PF3/8-PF1/4
5-5
181-00086D2
TEE 3PF3/8
5-6
121-00010D1
NUT
