1
1
1
1
1
1
1
1
1А
2
3
4
5
6
7

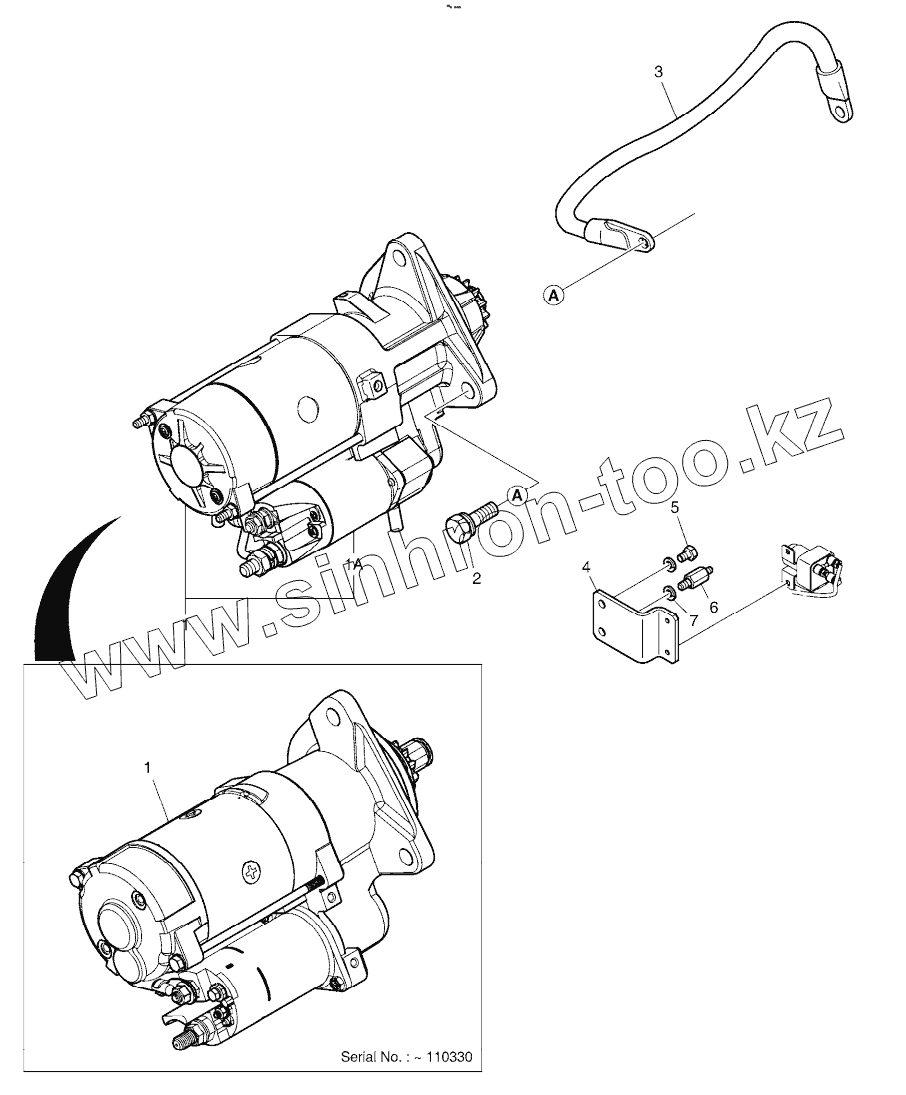

Позиция на иллюстрации
Заводской номер детали
Название детали
1
6526201-7076В
STARTER
1
6526201-7076С
STARTER
1
300516-00003
Starter
1
300516-00041
Starter assy
1А
6526212-0006
RELAY, MAGNETIC
2
0601943-3318
BOLT ASSY M12X15X35
3
6529101-5001
WIRE, ELECTRIC
4
6597480-0223
HOLDER
5
0601943-3213
BOLT ASSY M10X125X20
6
6590201-0168
BOLT, STUD
7
0616731-2108
WASHER, SPRING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
