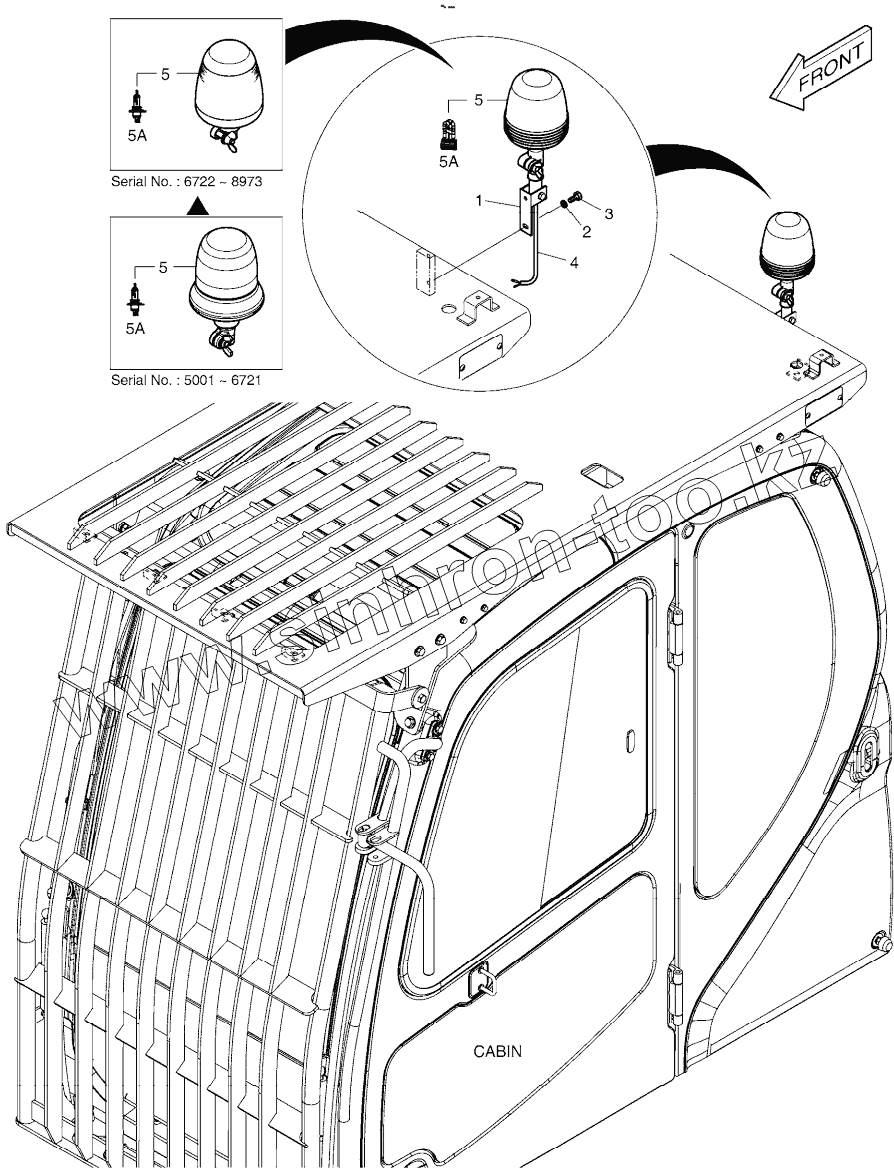

ROTATING BEACON-WITH FOGS
SIDE DOOR - L.H (TROPICAL)
TROPICAL PARTS
ACOUSTIC FOAM - NOISE KIT
PATTERN CHANGE PIPING (1)
PATTERN CHANGE PIPING (2)
COUNTER WEIGHT - 3.8TON (NOISE KIT - DX220A)
ALTERNATOR - 50A
ALTERNATOR
ELECTRIC PARTS - ENGINE (ALTERNATOR - 50A)
К1006803А
300705-00014А
300705-00014В
1
1
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5А
5А
5А
5А
5А
5А
5А
5А
5А
5А
5А
5А
5А
5А
5А
Позиция на иллюстрации
Заводской номер детали
Название детали
К1006803А
К1006803А
ROTATING BEACON
300705-00014А
300705-00014А
BEACON ASSY,ROTATING, 6 LAM
300705-00014В
300705-00014В
BEACON ASSY,ROTATING
1
160-00061
BUSH, MOUNTING
1
131002-00085
BUSHING ASSY
2
S5102503
WASHER;SPRING
3
S0508853
BOLT M8X1.25X20
4
530-00464
HARNESS
5
К1038193
BEACON, ROTATING
5
534-00062
LAMP;ROTATING BEACON
5
300705-00037
Lamp
5А
К9007240
BULB, HALOGEN 24V 70W
5А
515-00013
BULB;HALOGEN H1 24V 70W
5А
300710-00023
Bulb
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
