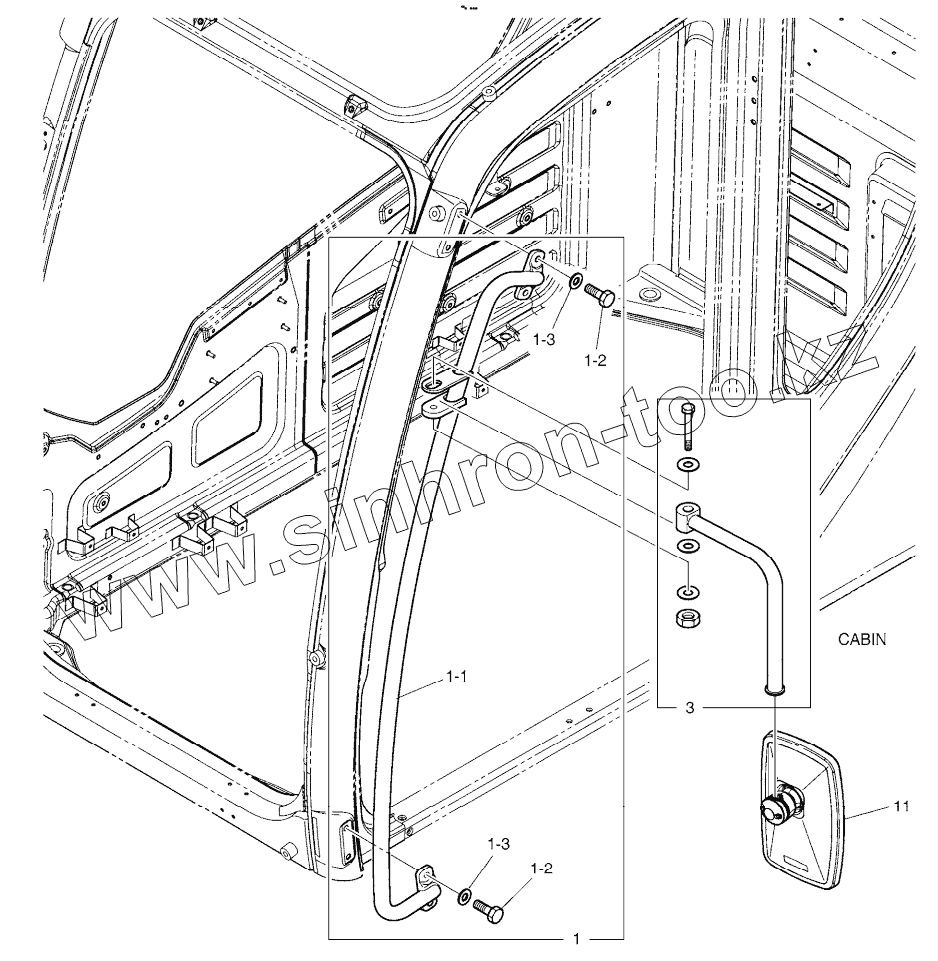

Каталог запасных частей к технике: Doosan DX225LCA. HANDLE ASSY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM BREATHER PIPE OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP & COOLING FAN INTAKE & EXHAUST MANIFOLD TURBO CHARGER & OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP OVER HAUL GASKET KIT-ALL MAIN FRAME COUNTER WEIGHT - 4.1TON (DX225LCA) COUNTER WEIGHT - 3.8TON (DX220A) ENGINE MOUNTING RADIATOR MOUNTING RADIATOR MUFFLER CAC PIPING AIR CLEANER PUMP MOUNTING SWING MOTOR FUEL TANK FUEL PIPING OIL TANK OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) ENGINE CONTROL MAIN PIPING (1) - PUMP Serial No. 5001 - 6004 MAIN PIPING (1) - PUMP Serial No. 6005 - MAIN PIPING (2) - BOOM MAIN PIPING (3) - ARM, BUCKET MAIN PIPING (4) - SWING MAIN PIPING (5) - CENTER JOINT PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) CONTROL STAND - L.H. CONTROL STAND - R.H. SEAT SLIDING PLATE SEAT PLATE SEAT MOUNTING SEAT DUCT COVER HEATER COVER CABIN MOUNTING CABIN (1) CABIN (2) CABIN (3) CABIN (4) HANDLE - CABIN FLOOR MAT FLOOR PLATE HANDLE ASSY ROOF COVER FOOT REST - L.H. FOOT REST - R.H. SUPPORT BAFFLE SIDE DOOR - L.H. SIDE DOOR - R.H BATTERY COVER COVER ENGINE COVER ACOUSTIC FOAM UNDER COVER LUBRICATION PIPING ELECTRIC BOX ASSY Serial No. 5001 - 7754 ELECTRIC BOX ASSY Serial No. 7755 - ELECTRIC PARTS - CABIN ELECTRIC PARTS - CONTROL STAND ELECTRIC PARTS - RELATED ELECTRIC PARTS - ENGINE Serial No. 5001 - 7754 ELECTRIC PARTS - ENGINE Serial No. 7755 - ALTERNATOR MOUNTING ELECTRIC PARTS - WORKING LAMP ELECTRIC WIRING HEATER PIPING (1) HEATER PIPING (2) AIRCON UNIT AIR CONDITIONER TRACK FRAME-LONG (DX225LCA) TRACK FRAME-STD (DX220A) TRAVEL DEVICE (DX225LCA) TRAVEL DEVICE (DX220A) IDLER (DX225LCA) IDLER (DX220A) TRACK SPRING UPPER ROLLER Serial No. 5001 - 6978 UPPER ROLLER Serial No. 6979 - LOWER ROLLER CENTER JOINT Serial No. 5001 - 12604 CENTER JOINT Serial No. 12605- TRACK SHOE ASSY - 600G (DX225LCA) TRACK SHOE ASSY - 600G (DX220A) TRAVEL PIPING - LONG CRAWLER (DX225LCA) TRAVEL PIPING - STD (DX220A) BOOM - 5.7m ARM - 2.9m BUCKET ASSY - 0.92m3 BOOM PIPING LUBRICATION PIPING - BOOM ARM PIPING LUBRICATION PIPING - ARM MAIN PUMP REGULATOR GEAR PUMP SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR TRAVEL REDUCTION GEAR CONTROL VALVE (1) CONTROL VALVE (2) CONTROL VALVE (3) REMOTE CONTROL VALVE PEDAL VALVE SOLENOID VALVE BOOM CYLINDER - L.H. BOOM CYLINDER - R.H. ARM CYLINDER BUCKET CYLINDER - ARM 2.9m PEDAL VALVE - TWO WAY BUCKET CYLINDER - ARM 2.4m BUCKET CYLINDER - ARM 3.5m BUCKET CYLINDER - ARM 6.2m BOOM CYLINDER - L.H (LOCK VALVE) BOOM CYLINDER - R.H (LOCK VALVE) ARM CYLINDER - LOCK VALVE GEAR PUMP-ROTATION TOOLS SPARE PARTS FUEL FILLER PUMP MAIN PIPING - ONE WAY ONE WAY PIPING - WITH FILTER MAIN PIPING - TWO WAY TWO WAY PIPING - WITH FILTER PILOT PIPING - ONE OR TWO WAY 5001 ~ 7754 PILOT PIPING - ONE OR TWO WAY 7755 ~ PILOT PIPING - ONE WAY PILOT PIPING - TWO WAY (1) PILOT PIPING - TWO WAY (2) BOOM PIPING - BOOM 5.7m (ONE & TWO WAY) ARM PIPING - ARM 2.9m (ONE & TWO WAY) MAIN PIPING - QUICK FIT ELECTRIC PARTS - QUICK CLAMP BOOM PIPING - BOOM 5.7m (QUICK CLAMP) ARM PIPING - ARM 2.9m(QUICK CLAMP) ALTERNATOR - 80A CD PLAYER SUN ROOF COVER RAIN SHIELD RAIN SHIELD & LAMP MOUNTING CABIN LOWER GUARD WINDOW GUARD FLOOR MAT - TWO WAY FLOOR MAT - ROTATING FLOOR MAT - TWO WAY & ROTATING FOGS GUARD ASSY TRACK SHOE ASSY - 700G (DX225LCA) TRACK SHOE ASSY - 800G (DX225LCA) TRACK SHOE ASSY - 800G (DX220A) TRACK SHOE ASSY - 900G (DX225LCA) SWING ALARM - NOT ONE OR TWO WAY SWING ALARM - ONE OR TWO WAY RADIO LOCK VALVE PIPING - BOOM BOOM PIPING - LOCK VALVE PILOT PIPING - ARM LOCK V/V ARM PIPING - LOCK VALVE ARM PIPING - ARM 2.9m(CLAMSHELL) MAIN PIPING-ROTATION PILOT PIPING (1) - ROTATING PILOT PIPING (2) - ROTATING BOOM PIPING - ROTATING (BOOM 5.7m) ARM PIPING - ROTATING (ARM 2.9m) BUCKET ASSY - 0.73mВі(36") - SIDE PIN BUCKET ASSY - 0.90mВі(42") - SIDE PIN BUCKET ASSY - 1.07mВі(48") - SIDE PIN BUCKET ASSY - 1.24mВі(54") - SIDE PIN BUCKET ASSY - 1.32mВі(57") - SIDE PIN BUCKET ASSY - 1.49mВі(63") - SIDE PIN ARM - 2.0m ARM PIPING - ARM 2.0m LUBRICATION PIPING - ARM 2.0m ARM PIPING - ARM 2.0m (ONE & TWO WAY) ARM PIPING - ARM 2.0m (QUICK CLAMP) ARM PIPING - ARM 2.0m (CLAMSHELL) ARM PIPING - ARM 2.0m (ROTATING) ARM - 2.4m ARM PIPING - ARM 2.4m LUBRICATION PIPING - ARM 2.4m ARM PIPING - ARM 2.4m (ONE & TWO WAY) ARM PIPING - ARM 2.4m (QUICK CLAMP) ARM PIPING - ARM 2.4m (CLAMSHELL) ARM PIPING - ARM 2.4m (ROTATING) ARM - 3.5m ARM PIPING - ARM 3.5m LUBRICATION PIPING - ARM 3.5m ARM PIPING - ARM 3.5m (ONE & TWO WAY) ARM PIPING - ARM 3.5m (QUICK CLAMP) ARM PIPING - ARM 3.5m (CLAMSHELL) ARM PIPING - ARM 3.5m (ROTATING) BUCKET ASSY - 0.51mВі BUCKET ASSY - 0.81mВі BUCKET ASSY - 1.05mВі BUCKET ASSY - 1.17mВі BUCKET ASSY - 1.28mВі BOOM - 5.2m BOOM PIPING - BOOM 5.2m LUBRICATION PIPING - BOOM 5.2m BOOM PIPING - BOOM 5.2m (ONE & TWO WAY) BOOM PIPING - BOOM 5.2m (QUICK FIT) BOOM PIPING - BOOM 5.2m (ROTATING) LOCK VALVE PIPING - BOOM 5.2m BOOM - 8.5m ARM - 6.2m COUNTER WEIGHT - SUPER LONG (DX225LCA) COUNTER WEIGHT - 5.3TON (NOISE KIT - DX225LCA) BUCKET ASSY - 0.39mВі BUCKET ASSY - 0.45mВі - DITCH CLEANING BUCKET ASSY - 0.54mВі - DITCH CLEANING BOOM PIPING - BOOM 8.5m LUBRICATION PIPING - BOOM 8.5m LOCK VALVE PIPING - BOOM 8.5m BOOM PIPING - BOOM 8.5m (ROTATING) ARM PIPING - ARM 6.2m LUBRICATION PIPING - ARM 6.2m ARM PIPING - ARM 6.2m (ROTATING) TRAVEL ALARM WORKING LAMP (2-LAMP) WORKING LAMP (4-LAMP) WORKING LAMP - REAR ROTATING BEACON ROTATING BEACON MOUNTING ROTATING BEACON(TELESCOPIC) WITH LAMP ROTATING BEACON(TELESCOPIC) W/O LAMP OVERLOAD WARNING LOWER WIPER WORKING LAMP (2-LAMP) WORKING LAMP (4-LAMP) ROTATING BEACON-WITH FOGS SIDE DOOR - L.H (TROPICAL) TROPICAL PARTS ACOUSTIC FOAM - NOISE KIT PATTERN CHANGE PIPING (1) PATTERN CHANGE PIPING (2) COUNTER WEIGHT - 3.8TON (NOISE KIT - DX220A) ALTERNATOR - 50A ALTERNATOR ELECTRIC PARTS - ENGINE (ALTERNATOR - 50A)

1

1-1

1-2

1-2

1-3

1-3

3

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	110925-00007		HANDLE ASSY, OUTER
1-1	172-00053В		HANDLE, OUTER
1-2	2120-2166D2		BOLT M10X1.5X25
1-3	2114-1898D15		Washer
3	К1004272		STAY, MIRROR
11	К1040606		MIRROR, SIDE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
