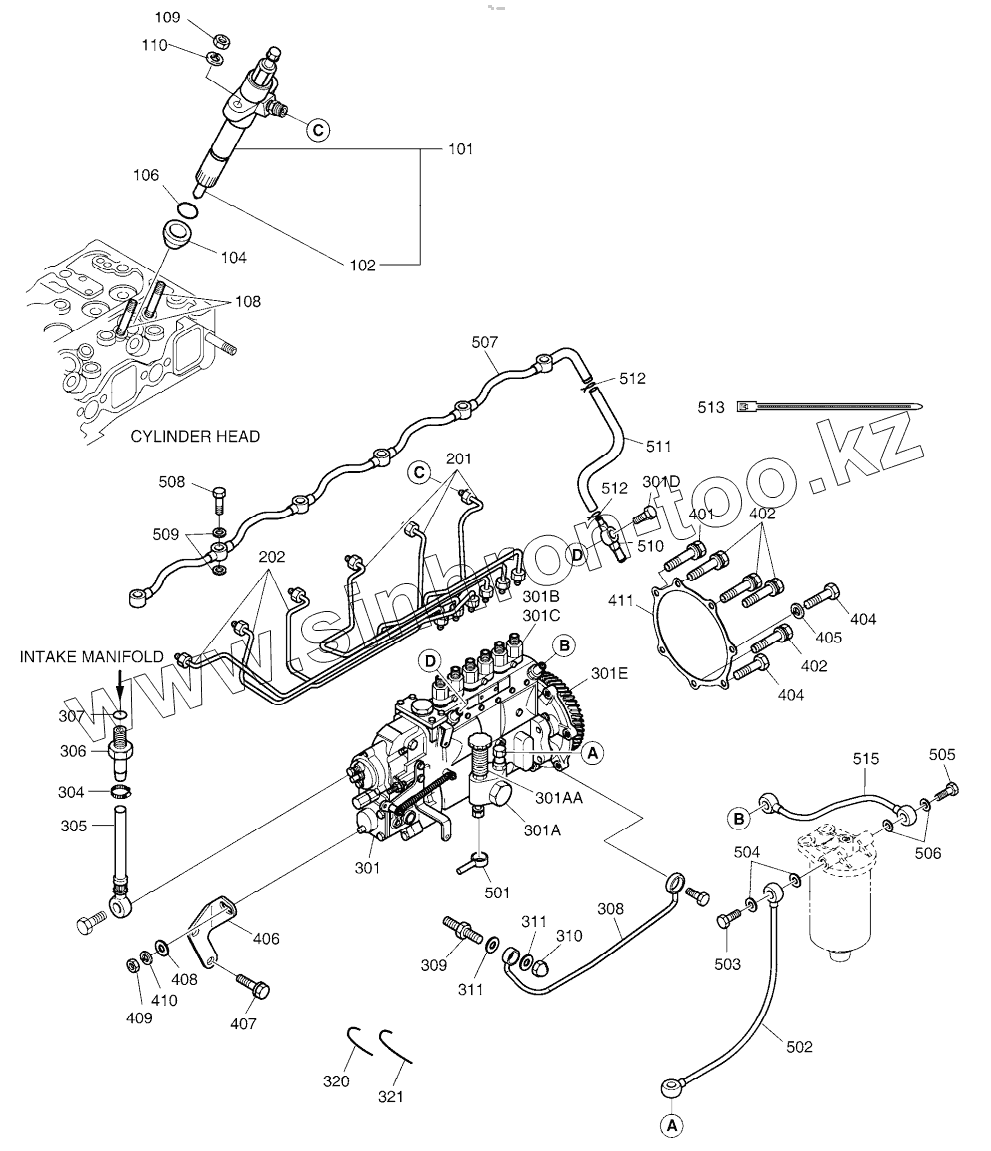

Каталог запасных частей к технике: Doosan DX225LCA. FUEL SYSTEM
101
102
104
106
108
109
110
201
202
301
301
301A
301A
301B
301C
301D
301E
304
305
306
307
308
309
310
311
311
320
321
401
402
402
404
404
405
406
407
408
409
410
411
501
502
503
504
505
506
507
508
509
510
511
512
512
513
515
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 101 | 6510101-7099A | NOZZLE HOLDER ASSY | |
| 102 | 6510102-6069 | NOZZLE | |
| 104 | 6596507-0044B | RING, SEAL | |
| 106 | 6596507-0050 | SEAL, RING | |
| 108 | 6590201-0099 | BOLT, STUD | |
| 109 | 0611063-8214 | NUT | |
| 110 | 0616731-2107 | WASHER | |
| 201 | 6510301-6088 | PRESSURE PIPE ASSY | |
| 202 | 6510301-6089 | PRESSURE PIPE ASSY | |
| 301 | 6511101-7420A | PUMP, INJECTION | |
| 301 | 400912-00071 | PUMP ASSY,INJECTION | |
| 301A | 105220-649A | Pump, feed | |
| 301A | 400908-00004 | Hand priming pump | |
| 301B | 131150-2620 | PLUNGER | |
| 301C | 6511108-6006S | VALVE,DELIVERY | |
| 301D | 131424-1520 | VALVE;OVERFLOW | |
| 301E | 156639-8820 | Coupling | |
| 304 | 0667020-0101 | CLAMP, HOSE | |
| 305 | 6508301-6008 | HOSE, AIR | |
| 306 | 6598131-0050 | CONN SCREW | |
| 307 | 0656180-0714 | RING, SEAL | |
| 308 | 6505701-5200 | PIPE, OIL | |
| 309 | 6598155-0011 | UNION, HOLLOW | |
| 310 | 0612172-9314 | NUT, CAP | |
| 311 | 0656180-0714 | RING, SEAL | |
| 320 | 6511596-0001 | WIRE, SEAL | |
| 321 | 6511596-0002 | WIRE, SEAL | |
| 401 | 0601913-3122 | BOLT ASSY M8X55 | |
| 402 | 0601913-3124 | BOLT ASSY M8X65 | |
| 404 | 0601283-7128 | BOLT, HEXM8X85 | |
| 405 | 0616731-2107 | WASHER | |
| 406 | 6511401-0002C | BRACKET, REAR | |
| 407 | 0601953-3213 | BOLT ASSY M10X125X20 | |
| 408 | 0615010-2312 | WASHER, PLAIN | |
| 409 | 0611063-9215 | NUT M10X125 | |
| 410 | 0616731-2108 | WASHER, SPRING | |
| 411 | 6511902A0001 | GASKET, INJECTION PUMP MOU | |
| 501 | 6512301-5022 | PIPE, FUEL | |
| 502 | 6596341-0100 | HOSE, FUEL | |
| 503 | 0678144-2204 | SCREW, HOLLOW | |
| 504 | 6596507-0043 | RING, SEAL A14X20 | |
| 505 | 0678144-2204 | SCREW, HOLLOW | |
| 506 | 6596507-0043 | RING, SEAL A14X20 | |
| 507 | 6512301-5824 | PIPE, FUEL | |
| 508 | 6598150-0015B | SCREW, HOLLOW | |
| 509 | 0656180-0712 | RING, SEAL | |
| 510 | 6512301-5825 | PIPE, FUEL | |
| 511 | 6596301-0176 | HOSE, RUBBER | |
| 512 | 6597401-0089 | CLIP | |
| 513 | 6597460-0002 | CABLE TIA | |
| 515 | 6596341-0100 | HOSE, FUEL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
