1
1
1А
1А
2
2
3
3
5
6
7
8
8
9
9
9
10

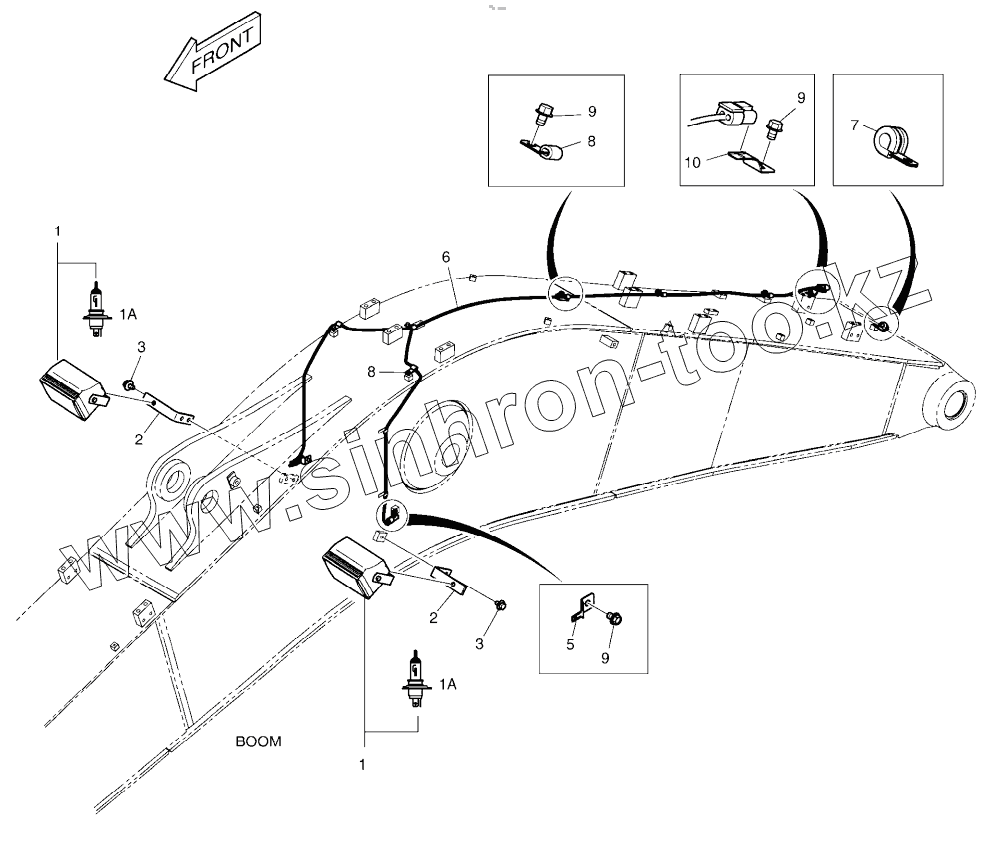

Позиция на иллюстрации
Заводской номер детали
Название детали
К1001329А
К1001329А
ELECTRIC PARTS, WORKING LA
1
534-00064
Lamp assy, working
1А
2515-1022D1
BULB;HALOGEN
2
2195-2394В
BRACKET
3
DS0025019
BOLT
5
2197-1661
BRACKET;HOUSING W9
6
530-00418D2
HARNESS, WORKING LAMP
7
124-00208D2
CLIP D14/M8
8
2124-1509D1
CLIP D12/M8
9
К1001029
BOLT
10
2197-1660
BRACKET;HOUSING W15
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
