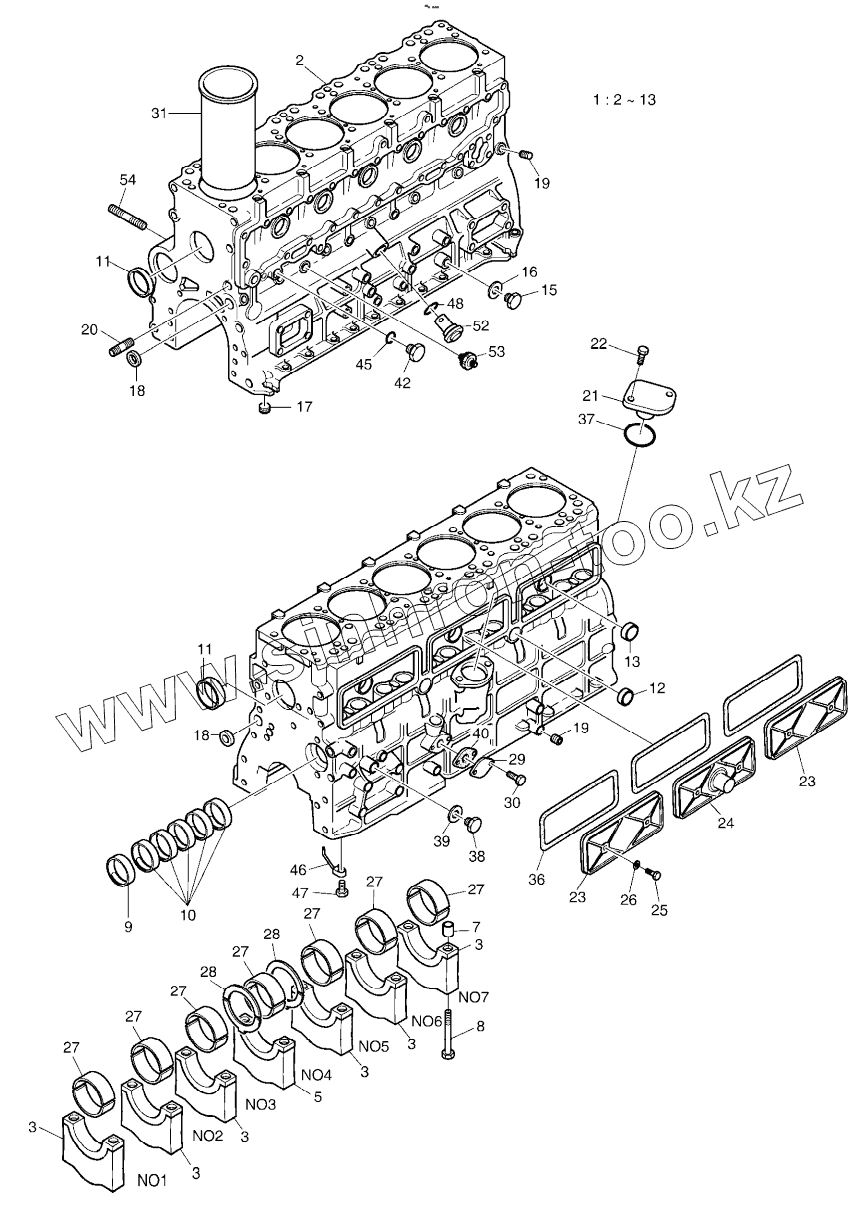

Каталог запасных частей к технике: Doosan DX225LCA. CYLINDER BLOCK
1
2
2
3
3
3
3
3
3
5
7
8
9
10
11
11
12
13
13
15
16
17
18
18
19
19
20
21
22
23
23
24
25
26
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
28
28
28
28
28
28
29
30
31
31
31
31
31
36
37
38
39
40
42
45
46
47
48
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6501101-6079D | CYLINDER BLOCK ASSY | |
| 2 | 6501101-0030I | BLOCK, CYLINDER | |
| 3 | 6501105-1048A | CAP, BEARING | |
| 5 | 6501105-1047A | CAP, BEARING | |
| 7 | 6591710-0001 | RING, STOPPER | |
| 8 | 6590020-0066A | BOLT, BRG CAP | |
| 9 | 6504410-0007C | BUSH, CAM SHAFT | |
| 10 | 6504410-0006C | BUSH, CAM SHAFT | |
| 11 | 6590302-0009 | PLUG, CORE | |
| 12 | 6590302-0041 | PLUG, CORE | |
| 13 | 6590302-0042 | PLUG, CORE | |
| 15 | 6590310-0030 | SCREW, PLUG M12X125 | |
| 16 | 0656190-0704 | RING, SEAL | |
| 17 | 6590320-0019 | PLUG SCREW PT3/8 | |
| 18 | 0615091-0313 | PLUG, CORE | |
| 19 | 6590320-0022 | PLUG SCREW PT1/8 | |
| 20 | 6590201-0058 | BOLT, STUD M14X125X45 | |
| 21 | 6591605-0001E | COVER | |
| 22 | 0601913-3113 | BOLT ASSY M8X20 | |
| 23 | 6501112-0021A | COVER, PUSH ROD CHAMBER | |
| 24 | 6501112-5018 | COVER, PUSH ROD CHAMBER | |
| 25 | 6590020-0049 | BOLT, HEX | |
| 26 | 6596507-0007 | PACKING, PUSH ROD CHAMBER | |
| 27 | 6501110-6092B | METAL, CRANK 050 | |
| 27 | 6501110-6091B | METAL, CRANK 025 | |
| 27 | 6501110-6090B | METAL, CRANK STD | |
| 28 | 6501150-6008 | WASHER, THRUST | |
| 28 | 6501150-6034A | WASHER, THRUST 025 | |
| 28 | 6501150-6035A | WASHER, THRUST 050 | |
| 29 | 6591615-0011 | COVER, BLIND | |
| 30 | 0601913-3113 | BOLT ASSY M8X20 | |
| 31 | 6501201-0067 | LINER, CYLINDER (ALTV) | |
| 31 | 6501201-0068 | LINER, CYLINDER (1A) | |
| 31 | 6501201-0069 | LINER, CYLINDER (1B) | |
| 31 | 6501201-0070 | LINER, CYLINDER (2A) | |
| 31 | 6501201-0071 | LINER, CYLINDER (2B) | |
| 36 | 6501901-0020 | GASKET, PUSH ROD CHAMBER | |
| 37 | 0656021-0106 | O-RING, O/P DRIVE FLANGE | |
| 38 | 6590310-0135 | PLUG, SCREW | |
| 39 | 0656190-0706 | SEAL RING A14X20 | |
| 40 | 6505903А0013 | GAS КЕТ, F LA NG Е | |
| 42 | 6590310-0122 | PLUG, DRAIN | |
| 45 | 0656190-0713 | RING, SEAL A18X24 | |
| 46 | 6501601-5010А | OIL JET PIPE | |
| 47 | 6505401-5023 | RELIEF VALVE ASSY | |
| 48 | 0656021-0102 | O-RING | |
| 52 | 6505401-5002F | RELIEF VALVE ASSY | |
| 53 | 6527441-7006 | SWITCH, OIL PRESS | |
| 54 | 6590201-0182 | BOLT, STUD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
