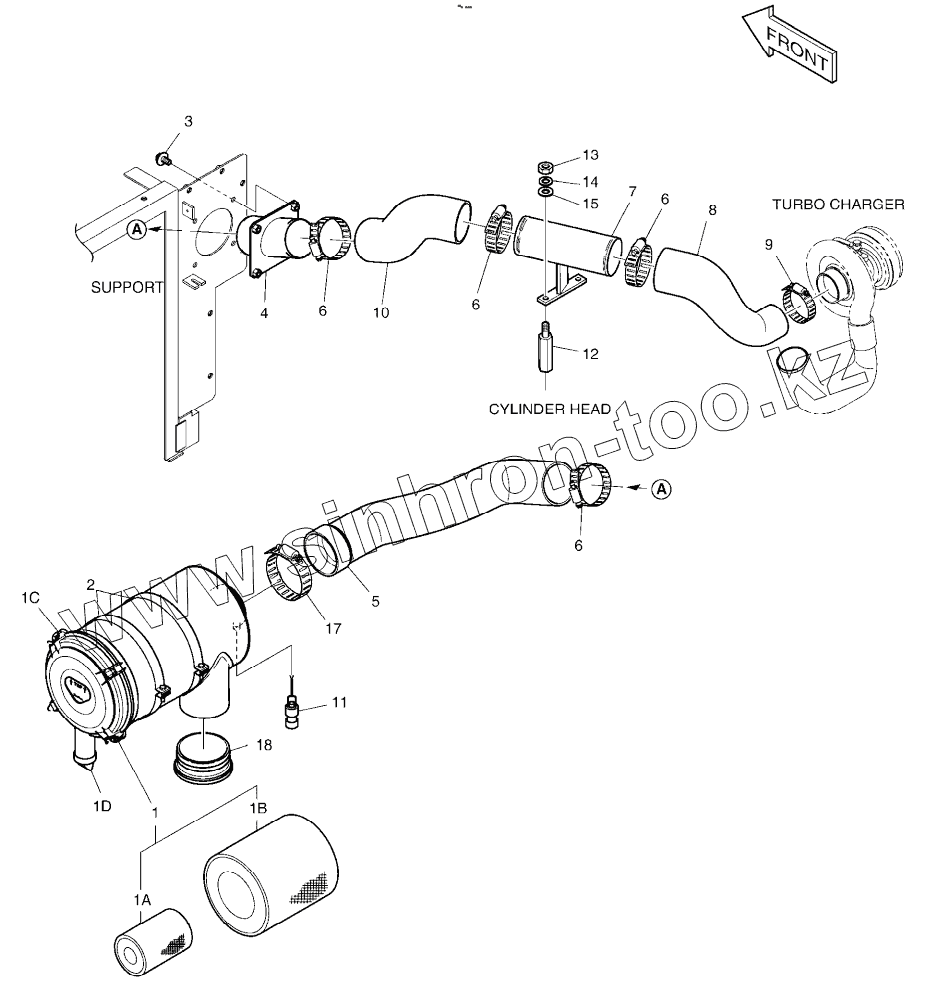

K1000965E
1
1A
1B
1C
1D
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
K1000965E
K1000965E
AIR CLEANER ASSY
1
204-00067
AIR CLEANER
1A
474-00039
ELEMENT, INNER
1B
474-00040
ELEMENT, OUTER
1C
204-00075
COVER
1D
204-00070
VALVE
2
124-00298B
BAND, AIR CLEANER
3
DS0025015
BOLT
4
193-00913A
PIPE, AIR
5
K1049854
HOSE, AIR
6
S8510118
CLAMP;HOSE
7
193-00912
PIPE, AIR
8
K1000562
HOSE, AIR
9
S8510092
CLAMP;HOSE
10
185-00410C
HOSE, AIR
11
170-00004
INDICATOR
12
2120-2165
BOLT
13
S4012633
NUT M10X1.5
14
S5102603
WASHER;SPRING M10
15
S5010613
WASHER;PLAIN
17
S8510143
Clamp
18
K1003618
CAP, RAIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
