ACOUSTIC FOAM - NOISE KIT
PATTERN CHANGE PIPING (1)
PATTERN CHANGE PIPING (2)
COUNTER WEIGHT - 3.8TON (NOISE KIT - DX220A)
ALTERNATOR - 50A
ALTERNATOR
ELECTRIC PARTS - ENGINE (ALTERNATOR - 50A)
К1045676А
К1045676В
160702-00049
1
1
1
2
3
4
5
5
6
6

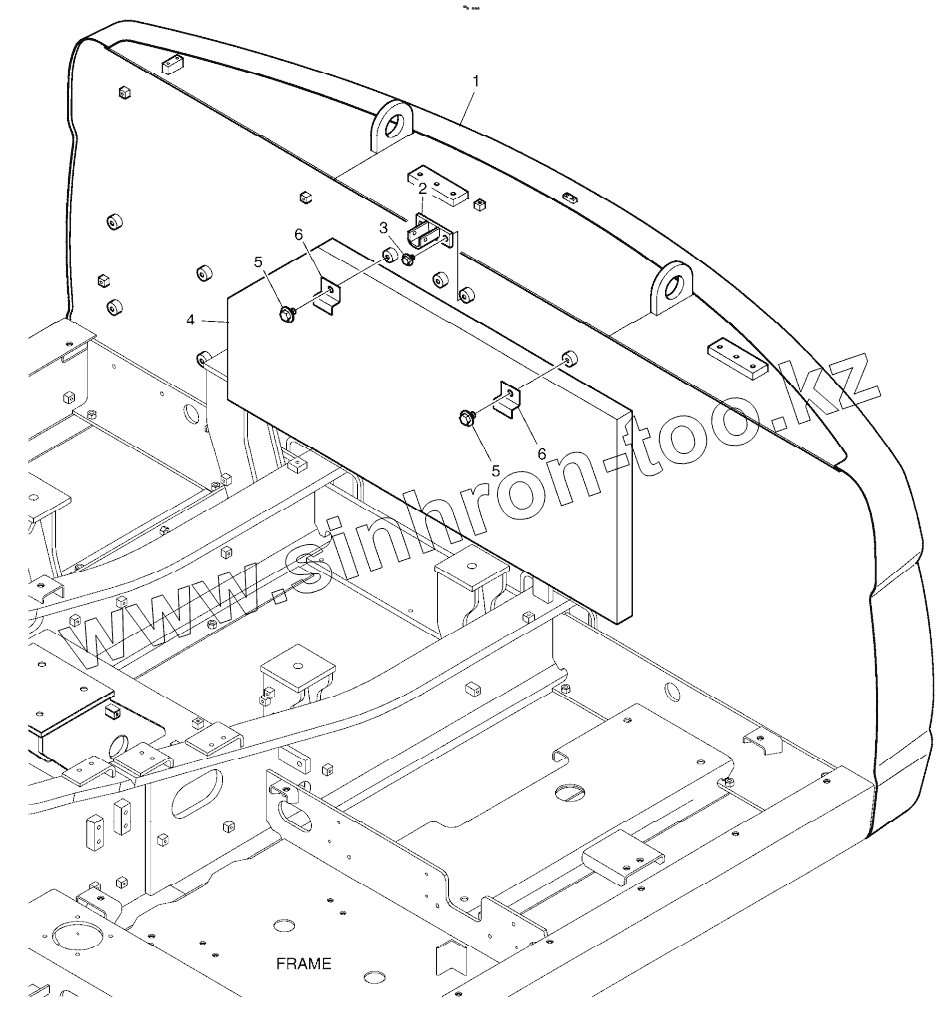

Позиция на иллюстрации
Заводской номер детали
Название детали
К1045676А
К1045676А
COUNTER WEIGHT ASSY
К1045676В
К1045676В
COUNTER WEIGHT ASSY
160702-00049
160702-00049
WEIGHT ASSY,COUNTER, 4.1ton
1
К1039183С
COUNTER WEIGHT, 41ton
1
К1039183Е
COUNTER WEIGHT, 41ton
1
160702-00046
WEIGHT,COUNTER, 41ton
2
К1002454В
BRACKET
3
DS0025015
BOLT
4
К1011304
FOAM
5
DS0025022
BOLT
6
621 -01572
PLATE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
