K1010236E
1
2
3
4
6
7
8
9
18
18
18
18
18
18
18
18
18
18
18
19
19
19
19
19
19
19
19
20
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
K1010236E
K1010236E

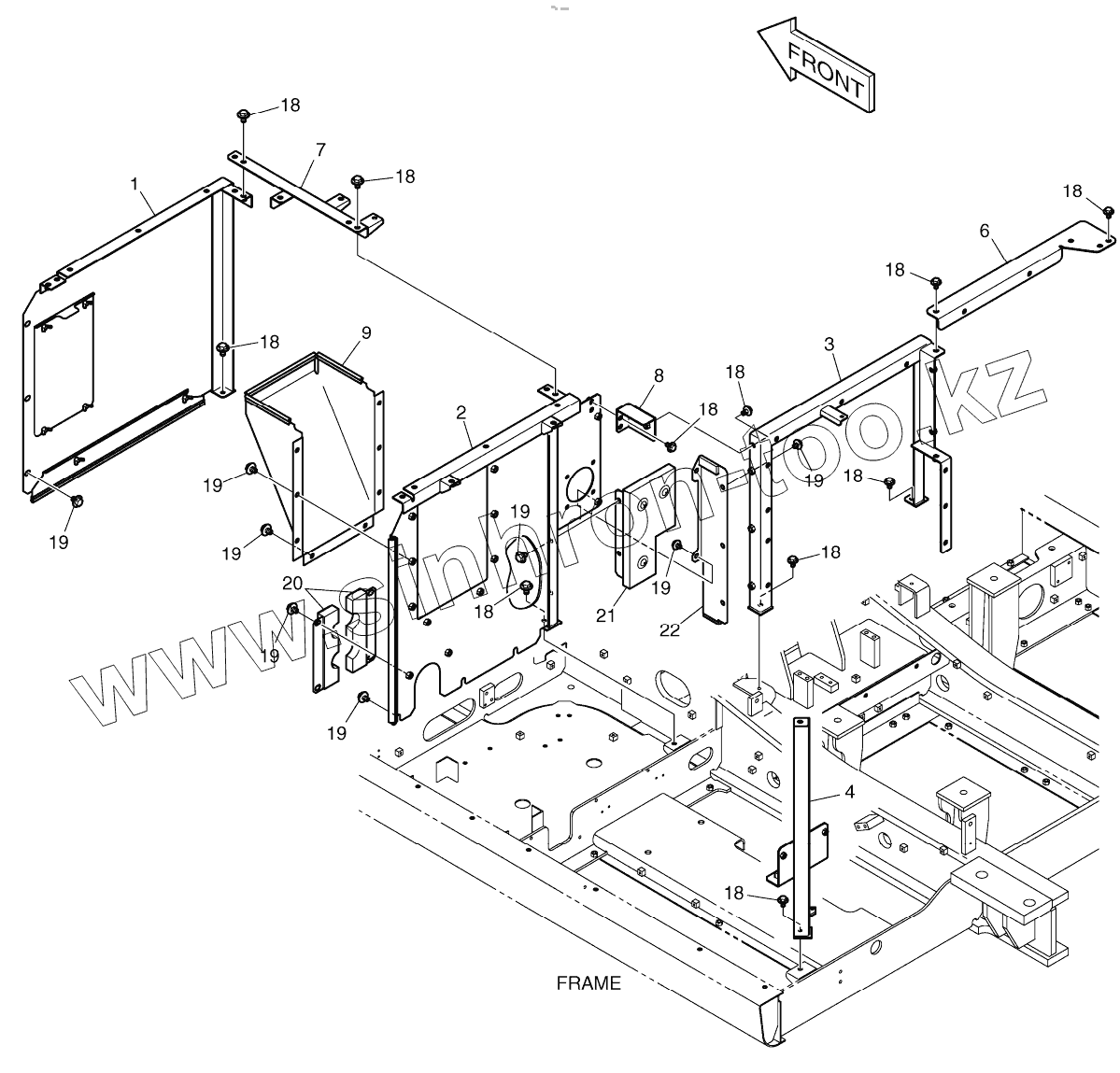

SUPPORT&BAFFLE
1
195-02742H
SUPPORT
2
K1010397C
SUPPORT
3
K1010398C
SUPPORT
4
K1011182A
SUPPORT
6
K1010400A
SUPPORT
7
K1010399B
SUPPORT
8
K1010421B
SUPPORT
9
621-03655A
COVER, BAFFLE
18
DS0025015
BOLT
19
DS0025022
BOLT
20
K1011137
COVER
21
K1010872
COVER, BAFFLE
22
K1010873A
COVER, BAFFLE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
