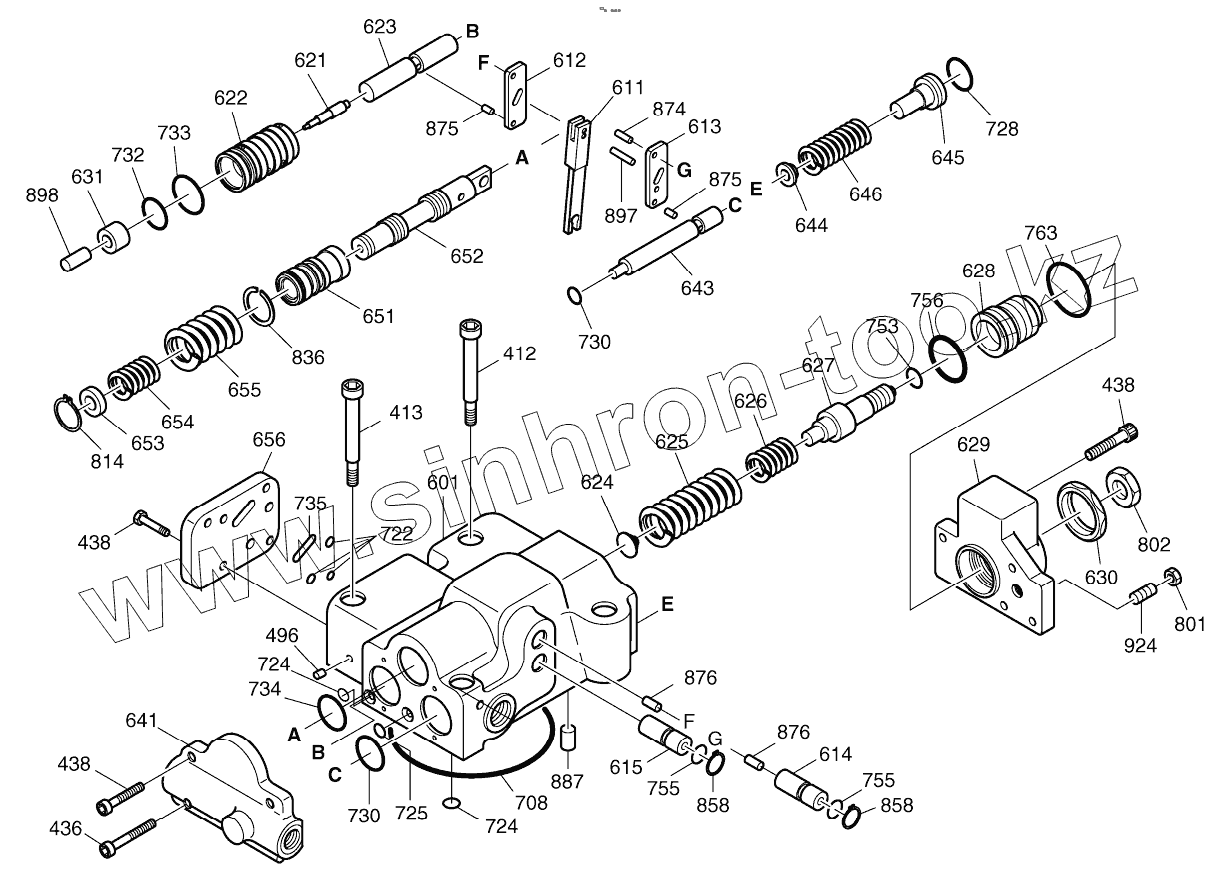

Каталог запасных частей к технике: Doosan DX225LC. REGULATOR
412
413
436
438
438
438
496
601
611
612
613
614
615
621
622
623
624
625
626
627
628
629
630
631
641
643
644
645
646
651
652
653
654
655
656
708
722
724
724
725
728
730
730
732
733
734
735
753
755
755
756
763
801
802
814
836
858
858
874
875
875
876
876
887
897
898
924
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| K9004877 | K9004877 | REGULATOR ASSY | |
| 412 | S2209661 | Bolt | |
| 413 | S2210071 | BOLT;SOCKET | |
| 436 | S2205261 | Bolt | |
| 438 | S2204861 | BOLT;SOCKET M6X60 | |
| 496 | 2.181-00214 | PLUG | |
| 601 | 1.402-00062 | CASING | |
| 611 | 1.357-00015 | LEVER, FEED BACK | |
| 612 | 1.357-00006 | LEVER | |
| 613 | 1.357-00009 | LEVER | |
| 614 | 1.181-00095 | PLUG, CENTER | |
| 615 | 1.181-00091 | PLUG, ADJUST | |
| 621 | 1.409-00190 | PISTON | |
| 622 | 1.402-00037 | CASE, PISTON | |
| 623 | 1.428-00209 | ROD | |
| 624 | 1.427-00016 | SEAT, SPRING | |
| 625 | K9004875 | SPRING, OUTER | |
| 626 | 2.131-00388 | SPRING, INNER | |
| 627 | K9004874 | STEM, ADJUST | |
| 628 | K9004794 | SCREW, ADJUST | |
| 629 | 1.430-00049 | COVER | |
| 630 | 1.121-00045 | NUT, LOCK | |
| 631 | K9004876 | SLEEVE, PF | |
| 641 | 1.430-00066 | COVER, PILOT | |
| 643 | 1.409-00205 | PISTON, PILOT | |
| 644 | 1.427-00017 | SEAT, SPRING | |
| 645 | 2.115-00441 | STEM, ADJUST | |
| 646 | 2.131-00401 | SPRING, PILOT | |
| 651 | 1.425-00005 | SLEEVE | |
| 652 | 1.424-00021 | SPOOL | |
| 653 | 1.131-00167 | SEAT, SPRING | |
| 654 | 1.131-00161 | SPRING, RETURN | |
| 655 | 1.131-00173 | SPRING, SET | |
| 656 | 1.430-00029 | COVER, BLOCK | |
| 708 | S8010755 | O-RING 1BG-75 | |
| 722 | S8000065 | O-RING P6 | |
| 724 | S8000085 | O-RING | |
| 725 | S8000105 | O-RING P10 | |
| 728 | S8000185 | O-RING | |
| 730 | S8000225 | O-RING P22 | |
| 732 | S8000165 | O-RING | |
| 733 | S8000205 | O-RING | |
| 734 | S8010255 | O-RING P25 | |
| 735 | S8002725 | O-RING P125 | |
| 753 | K9004878 | O-RING | |
| 755 | S8000115 | O-RING | |
| 756 | S8000265 | O-RING P26 | |
| 763 | S8010355 | O-RING | |
| 801 | S4012531 | NUT M8 | |
| 802 | K9004800 | NUT | |
| 814 | S6500100 | RING, SNAP | |
| 836 | 1.115-00111 | RING, SNAP | |
| 858 | S6510150 | RING, SNAP | |
| 874 | 1.123-00030 | PIN | |
| 875 | 1.123-00031 | PIN | |
| 876 | 1.123-00039 | PIN | |
| 887 | 1.123-00032 | PIN | |
| 897 | 1.123-00040 | PIN | |
| 898 | K9004881 | PIN | |
| 924 | S3524008 | SCREW, SET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
