K1000555H
2181-1702D5
2181-1702D5
2
15
15
17
17
20
20
24
25
26
26
27
32
32
35
40
48
49
81
81
82
82
83
83
83
83
84
84
84
93
93
94
94

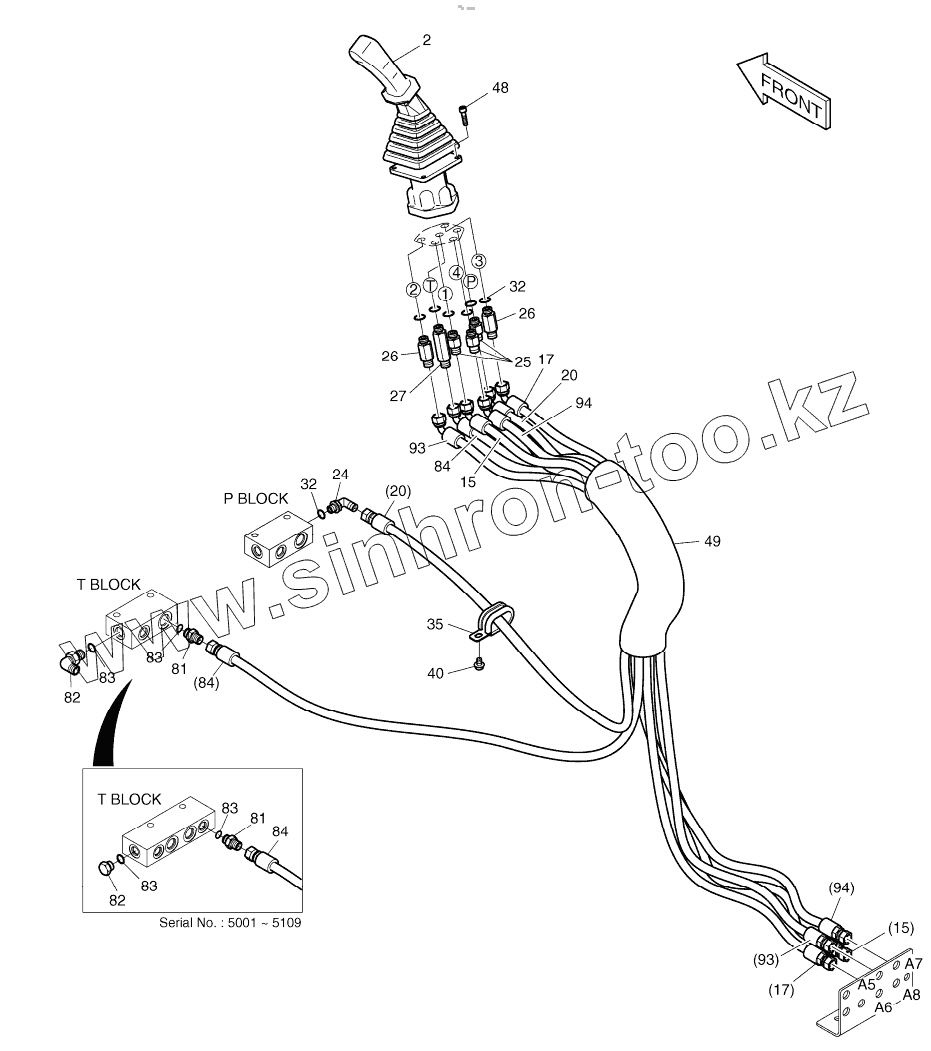

Позиция на иллюстрации
Заводской номер детали
Название детали
K1000555H
K1000555H
REMOTE CONTROL VALVE
K1009824C
K1009824C
PILOT PIPING
2181-1702D5
2181-1702D5
ELBOW PF3/8-PF3/8
2
K1000555G
VALVE, REMOCON
15
DS2095001
Hose
17
DS2095001
Hose
20
DS2095002
HOSE PF3/8-1750L
24
2181-1702D5
ELBOW PF3/8-PF3/8
25
DS2213165
ADAPTER
26
2181-1126D27
ADAPTER PFO3/8-PF3/8
27
2181-1126D28
Adapter
32
S8000141
O-RING
35
124-00209D2
CLIP
40
K1001029
BOLT
48
S2204866
BOLT, SOCKET
49
K1003945
PROTECTOR
81
2181-1126D7
ADAPTER PFO3/8-PF3/8
82
2181-1950D2
PLUG PFO1/2
83
S8000141
O-RING
84
DS2095003
HOSE
93
DS2095001
Hose
94
DS2095001
Hose
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
