Позиция на иллюстрации
Заводской номер детали
Название детали
K1009807E
K1009807E

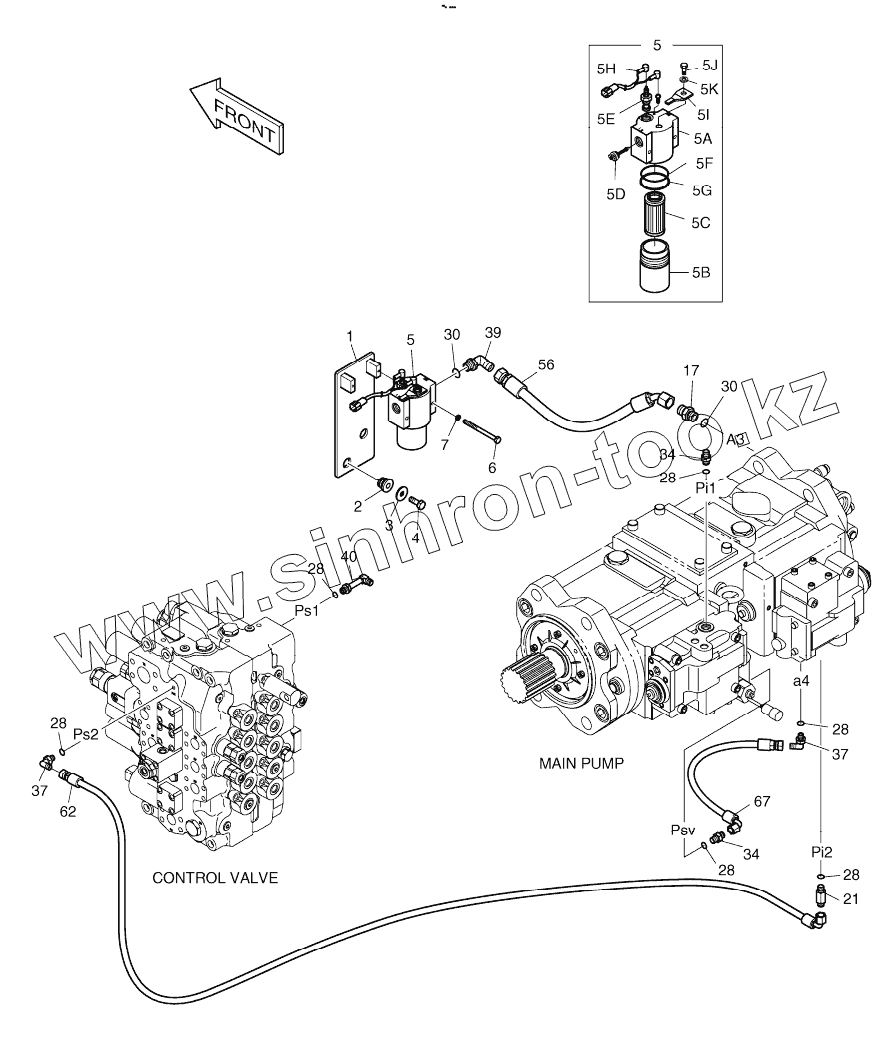

PILOT PIPING(1)
1
195-01601
Bracket
2
198-00016
RUBBER
3
2114-1058D10
WASHER
4
S0512266
BOLT
5
471-00075A
FILTER;PILOT
5A
HEAD
Head
5B
2472-7003
CASE
5C
2471-1154
ELEMENT;PILOT FILTER
5D
2426-1237
VALVE;BY-PASS
5E
2471-1155A
INDICATOR
5F
Y-3738-04
RING;BACK UP
5G
Y-3738-05
O-RING
5H
530-00236
HARNESS;PILOT FILTER
5I
2197-1661
BRACKET;HOUSING W9
5J
S0508653
BOLT M8X1.25X16
5K
S5102503
WASHER;SPRING
6
S0553766
BOLT
7
S5102303
WASHER;SPRING M6
17
2181-1126D6
ADAPTER
21
2181-1126D34
ADAPTER PFO1/4-PF1/4
28
S8000111
O-RING
30
S8000181
O-RING
34
2181-1126D14
ADAPTER;S PFO-PF1/4
37
2181-1702D4
ELBOW
39
2181-1702D2
ELBOW
40
2181-1702D56
ELBOW
56
DS2054341
HOSE
62
DS2093073
HOSE
67
DS2093180
HOSE PF1/4-450L
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
