Каталог запасных частей к технике: Doosan DX225LC. MAIN PIPING - TWO WAY (ARTI. BOOM)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING OIL SEAL BREATHER DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL FILTER AND OIL COOLER OIL PAN THERMOSTAT WATER PUMP COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBOCHARGER INJECTOR INJECTION PIPE INJECTION PUMP E.C.U FUEL SYSTEM ALTERNATOR MOUNTING LIFTING HOOK STARTER SENSOR WIRE HARNESS ENGINE MOUNTING AIR COMPRESSOR OVERHAUL GASKET KIT - ALL OVERHAUL GASKET KIT - TOP MAIN FRAME COUNTER WEIGHT ENGINE MOUNTING RADIATOR MOUNTING RADIATOR MUFFLER CAC PIPING AIR CLEANER PUMP MOUNTING SWING DEVICE FUEL TANK FUEL PIPING OIL TANK OIL COOLER PIPING OIL COOLER PIPING OIL COOLER PIPING MAIN PIPING MAIN PIPING PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) CONTROL STAND L.H. CONTROL STAND R.H. SEAT PLATE SEAT PLATE SEAT MOUNTING SEAT DUCT COVER HEATER COVER CABIN MOUNTING CABIN CABIN CABIN CABIN HANDLE - CABIN FLOOR MAT FLOOR PLATE HANDLE ASS`Y ROOF COVER FOOT REST (L.H) FOOT REST (R.H) SUPPORT BAFFLE SIDE DOOR (L.H) SIDE DOOR (R.H) BATTERY COVER ASSY COVER ENGINE COVER ACOUSTIC FOAM UNDER COVER LUBRICATION PIPING ELECTRIC BOX ASSY ELECTRIC PARTS-CONTROL STAND ELECTRIC PARTS-CABIN ELECTRIC PARTS;CHASSIS ELECTRIC PARTS;ENGINE ALTERNATOR ELECTRIC PARTS;WORKING LAMP ELECTRIC WIRING HEATER PIPING AIRCON UNIT AIR CONDITIONER TRACK FRAME TRAVEL DEVICE IDLER TRACK SPRING UPPER ROLLER LOWER ROLLER CENTER JOINT CENTER JOINT TRACK SHOE ASSY-600G TRACK SHOE ASSY-600G TRAVEL PIPING BOOM; 5.9m ARM - 3.0m BUCKET ASSY-0.95m3 BOOM PIPING LUBRICATION PIPING-BOOM ARM PIPING LUBRICATION PIPING-ARM - 3.0m LUBRICATION PIPING-ARM - 3.0m MAIN PUMP REGULATOR GEAR PUMP SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR TRAVEL REDUCTION GEAR CONTROL VALVE CONTROL VALVE CONTROL VALVE REMOTE CONTROL VALVE PEDAL VALVE PEDAL VALVE SOLENOID VALVE BOOM CYLINDER (L.H) BOOM CYLINDER (R.H) ARM CYLINDER BUCKET CYLINDER - ARM 3,0m/3,5m BUCKET CYLINDER - ARM 2,5m BUCKET CYLINDER - ARM 2,0m BOOM CYLINDER (L.H.) (LOCK VALVE) BOOM CYLINDER (R.H.) (LOCK VALVE) ARM CYLINDER - LOCK VALVE GEAR PUMP-ROTATION PEDAL VALVE - TWO WAY ARTI BOOM CYLINDER ARM CYLINDER-ARTI BOOM ARTI BOOM CYLINDRES - LOCK VALVE ARM CYLINDER - ARTI BOOM (LOCK V/V) CONTROL VALVE - ARTI BOOM TOOLS SPARE PARTS NAME PLATE - CABIN (EXPORT) DECAL - EXPORT NAME PLATE - CABIN (EUROPE) DECAL - EUROPE DECAL - LIFTING CAPA FUEL FILLER PUMP MAIN PIPING - ONE WAY ONE WAY PIPING-WITH FILTER MAIN PIPING - TWO WAY TWO WAY PIPING-WITH FILTER PILOT PIPING - TWO AND ONE WAY PILOT PIPING - TWO WAY PILOT PIPING-TWO WAY(2) BOOM PIPING - BOOM 5,9m (TWO AND ONE WAY) ARM PIPING-ONE & TWO WAY (ARM 3.0m) ARM PIPING - ARM 3,0m (CLAMSHELL) MAIN PIPING - QUICK CLAMP ELECTRIC PARTS - QUICK CLAMP BOOM PIPING - BOOM 5,9m (QUICK CLAMP) ARM PIPING - ARM 3,0m (QUICK CLAMP) SUN ROOF COVER RAIN SHIELD RAIN SHIELD & LAMP MOUNTING CABIN LOWER GUARD WINDOW GUARD FLOOR MAT - TWO WAY FLOOR MAT - ROTATING FLOOR MAT - TWO WAY AND ROTATING TRACK FRAME - NARROW TRAVEL PIPING - NARROW TRACK TRACK SHOE ASSY - 700G TRACK SHOE ASSY - 700G TRACK SHOE ASSY - 800G TRACK SHOE ASSY - 800G TRACK SHOE ASSY - 900G TRACK SHOE ASSY - 900G SWING ALARM PATTERN CHANGE PIPING PATTERN CHANGE PIPING LOCK VALVE PIPING-BOOM BOOM PIPING - LOCK VALVE PILOT PIPING-ARM LOCK V/V ARM PIPING - LOCK VALVE MAIN PIPING - ROTATING PILOT PIPING - ROTATING PILOT PIPING - ROTATING BOOM PIPING - BOOM 5.9M ROTATIONG ARM PIPING-ROTATIONG (ARM 3.0m) BUCKET ASSY-0.47 m3 BUCKET ASSY-0.72 m3 BUCKET ASSY-0.8 m3 BUCKET ASSY-0.92 m3 BUCKET ASSY-1.0 m3 BUCKET ASSY-1.1 m3 BUCKET ASSY-1.22 m3 BOOM - 5.3m BOOM PIPING - BOOM 5.3m LUBRICATION PIPING - BOOM 5.3m BOOM PIPING - BOOM 5.3m (ONE & TWO WAY) ARM PIPING - LOCK VALVE (BOOM 5.3m) BOOM PIPING - BOOM 5.3m (ROTATING) ARM - 2.0m ARM PIPING - ARM 2.0m LUBRICATION PIPING - ARM 2.0m LUBRICATION PIPING-ARM 2.0m ARM PIPING - ARM 2.0m (ONE & TWO WAY) ARM PIPING - ARM 2.0m (QUICK CLAMP) ARM PIPING - ARM 2.0m (CLAMSHELL) ARM PIPING - ARM 2.0m (ROTATING) ARM - 2.5m ARM PIPING - ARM 2.5m LUBRICATION PIPING-ARM 2.5m LUBRICATION PIPING-ARM 2.5m ARM PIPING - ARM 2.5m (ONE & TWO WAY) ARM PIPING - ARM 2.5m (QUICK CLAMP) ARM PIPING - ARM 2.5m (CLAMSHELL) ARM PIPING - ARM 2.5m (CLAMSHELL) ARM PIPING - ARM 2.5m (ROTATING) ARM - 3.5m ARM PIPING - ARM 3.5m LUBRICATION PIPING - ARM 3.5m LUBRICATION PIPING - ARM 3.5m ARM PIPING - ARM 3.5m (ONE & TWO WAY) ARM PIPING - ARM 3.5m (QUICK CLAMP) ARM PIPING - ARM 3.5m (CLAMSHELL) ARM PIPING - ARM 3.5m (ROTATING) BUCKET ASSY-0.67m3 (36") - SIDE PIN BUCKET ASSY-0.8m3 (42") - SIDE PIN BUCKET ASSY-0.95m3 (48") - SIDE PIN BUCKET ASSY-1.1m3 (54") - SIDE PIN BUCKET ASSY-1.17m3 (57") - SIDE PIN BUCKET ASSY-1.31m3 (63") - SIDE PIN ALTERNATOR - 80A CD PLAYER FUEL HEATER TRAVEL ALARM WORKING LAMP-2LAMP WORKING LAMP-4LAMP WORKING LAMP-REAR ROTATING BEACON ROTATING BEACON MOUNTING ROTATING BEACON (TELESCOPIC) WITH LAMP ROTATING BEACON (TELESCOPIC) W/O LAMP OVERLOAD WARNING LOWER WIPER WORKING LAMP (2-LAMP) WORKING LAMP (4-LAMP) ROTATING BEACON - WITH FOGS TROPICAL PARTS RADIO ACOUSTIC FOAM - NOISE KIT MAIN PIPING - ARTI.BOOM PILOT PIPING - ARTI BOOM PILOT PIPING - ARTI BOOM FLOOR MAT-THREE PEDAL ARTI. BOOM ARTI BOOM PIPING LUBRICATION PIPING - LOWER BOOM LUBRICATION PIPING - UPPER BOOM MAIN PIPING - ONE WAY (ARTI. BOOM) MAIN PIPING - TWO WAY (ARTI. BOOM) ARTI. BOOM PIPING - ONE & TWO WAY MAIN PIPING - ROTATING (ARTI. BOOM) PILOT PIPING - ARTI. AND ROTATING ARTI. BOOM PIPING - ROTATING MAIN PIPING - QUICK CLAMP (ARTI. BOOM) ARTI. BOOM PIPING - QUICK FIT LOCK VALVE PIPING - ARTI BOOM ARTI. BOOM PIPING - LOCK VALVE ARTI. ARM PIPING - LOCK VALVE WORKING LAMP - ARTI. BOOM

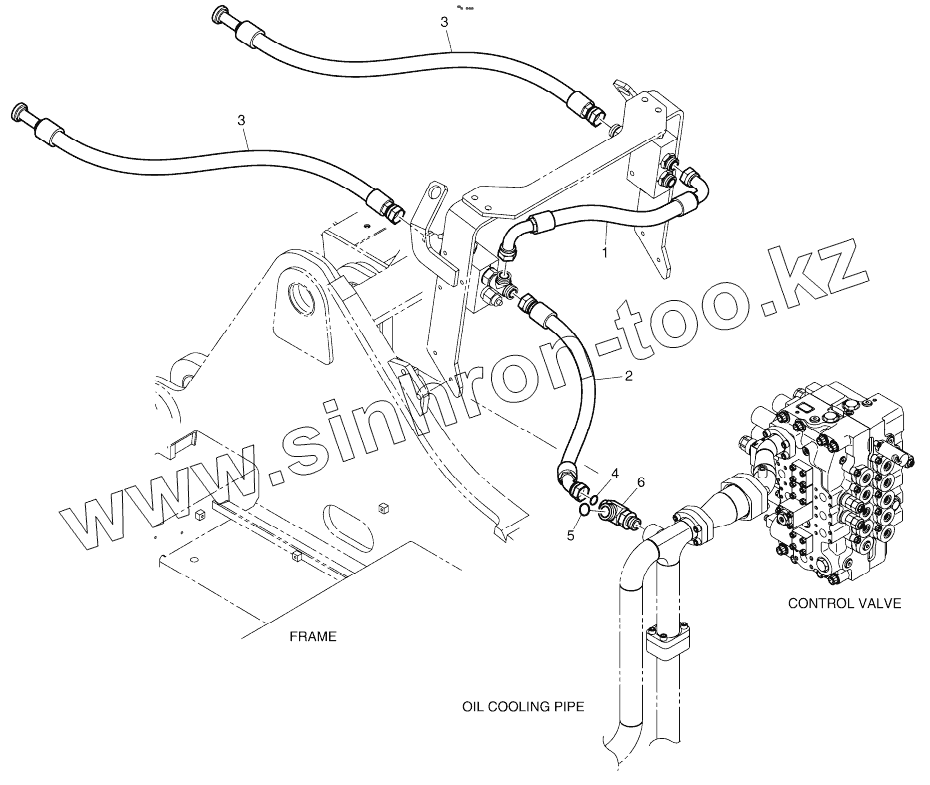

К1038588В

1

2

3

3

3

3

3

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
К1038588В	К1038588В		MAIN PIPING - TWO WAY
1	DS2023233		HOSE
2	DS2012442		HOSE
3	DS2016125		HOSE
3	DS2016050		HOSE
4	S8030161		O-RING
5	2180-1026D37		O-ring
6	DS2412024		TEE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
