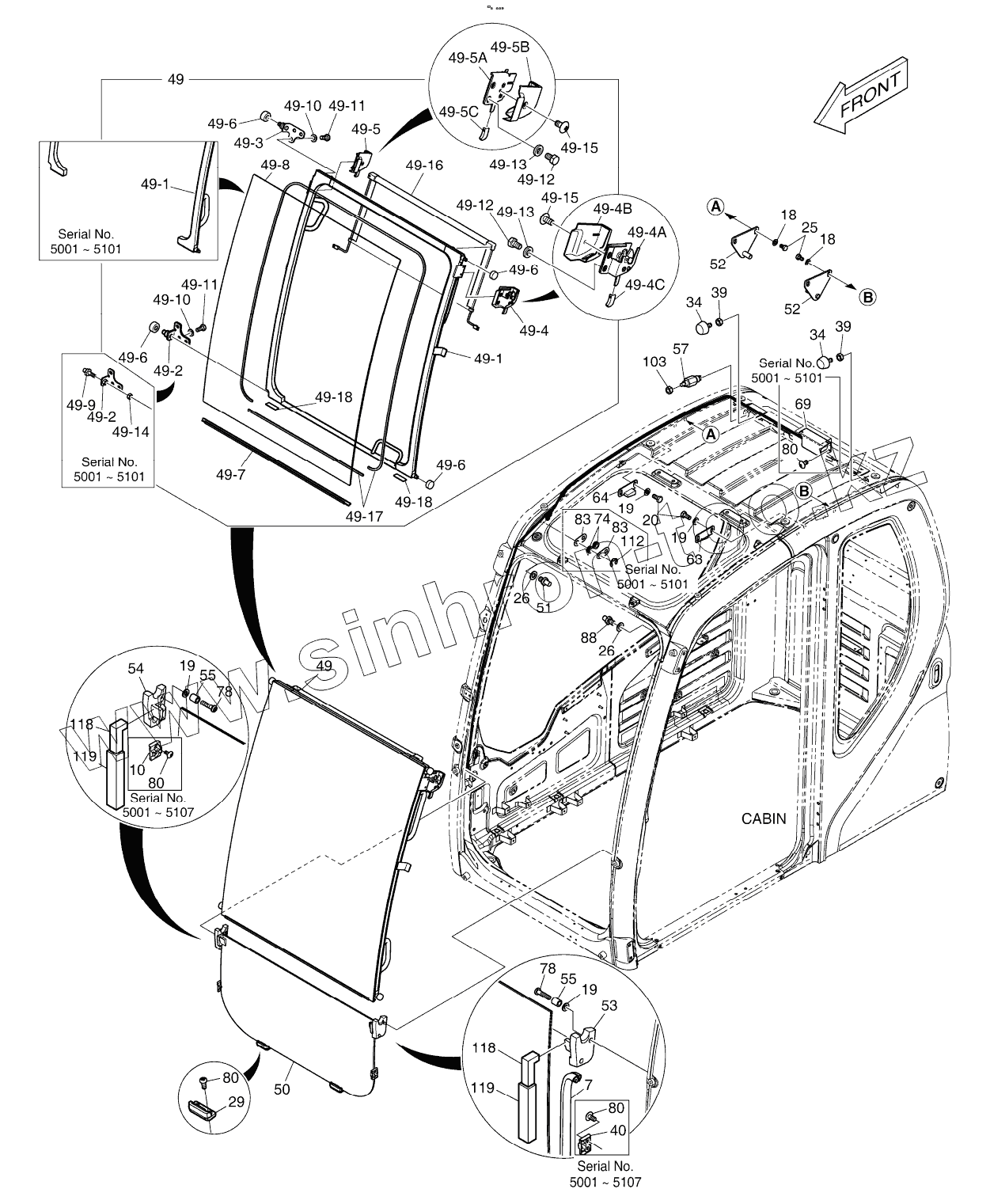

Каталог запасных частей к технике: Doosan DX225LC. CABIN
7
10
18
18
19
19
19
19
20
25
26
26
29
34
34
39
39
40
49
49
49
49
49
49
49-1
49-1
49-1
49-1
49-1
49-1
49-2
49-2
49-2
49-2
49-3
49-3
49-4
49-4A
49-4B
49-4C
49-5
49-5A
49-5B
49-5C
49-6
49-6
49-6
49-6
49-7
49-7
49-8
49-8
49-9
49-10
49-10
49-11
49-11
49-12
49-12
49-13
49-13
49-14
49-15
49-15
49-16
49-17
49-17
49-18
49-18
50
51
52
52
53
54
55
55
57
63
64
69
74
78
78
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
83
83
88
103
112
118
118
119
119
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 622-00351H | 622-00351H | CABIN ASSY | |
| 622-00351J | 622-00351J | CABIN ASSY | |
| 622-00351K | 622-00351K | CABIN ASS`Y | |
| 622-00351M | 622-00351M | CABIN ASS`Y | |
| 7 | 162-00034B | STRIP, WEATHER | |
| 10 | 416-00018A | STOPPER, GLASS LOWER RH | |
| 18 | 2114-1898D14 | WASHER | |
| 19 | 2114-1898D3 | WASHER | |
| 20 | 2120-2166D28 | BOLT | |
| 25 | 2120-2166D12 | Bolt | |
| 26 | 2114-1898D6 | Washer | |
| 29 | 416-00019B | STOPPER, LOWER | |
| 34 | 161-00195 | STOPPER | |
| 39 | 2121-1311D4 | NUT | |
| 40 | 416-00020 | STOPPER, GLASS LOWER LH | |
| 49 | 622-00359H | DOOR, SLIDE | |
| 49 | 622-00359J | DOOR, SLIDE | |
| 49 | 622-00359K | DOOR, SLIDE | |
| 49-1 | 622-00360G | PANEL ASSY | |
| 49-1 | 622-00360H | PANEL ASSY | |
| 49-1 | K1033991 | PANEL ASSY | |
| 49-2 | 195-02739B | BRACKET, RH LOWER ROLLER | |
| 49-2 | 195-02739C | BRACKET | |
| 49-3 | 195-02740C | BRACKET, RH ROLLER UPPER | |
| 49-3 | 195-02740E | BRACKET | |
| 49-4 | 125-00096A | CATCH ASSY, SLIDE DOOR | |
| 49-4A | 125-00073B | CATCH, LH | |
| 49-4B | 621-03724 | COVER, CATCH | |
| 49-4C | 133-00248 | KNOB, SLIDE DOOR CATCH | |
| 49-5 | 125-00097A | CATCH ASSY, SLIDE DOOR | |
| 49-5A | 125-00074B | CATCH, RH | |
| 49-5B | 621-03725 | COVER, CATCH | |
| 49-5C | 133-00248 | KNOB, SLIDE DOOR CATCH | |
| 49-6 | 270-00054B | ROLLER | |
| 49-7 | 505-00016B | BAR | |
| 49-7 | K1036331 | BAR | |
| 49-8 | 903-00076B | GLASS, FRONT UPPER | |
| 49-8 | K1033880 | GLASS, FRONT UPPER | |
| 49-9 | 123-00522B | PIN, SLIDE ROLLER RH LOWER | |
| 49-10 | 2114-1898D3 | WASHER | |
| 49-11 | 2120-2166D28 | BOLT | |
| 49-12 | 2120-2166D12 | Bolt | |
| 49-13 | 2114-1898D2 | WASHER M8 | |
| 49-14 | 2121-1311D2 | NUT M8X1.25 | |
| 49-15 | 2120-2166D52 | BOLT | |
| 49-16 | 474-00044A | SUN SCREEN, FRONT | |
| 49-17 | K1002638A | DAMPER | |
| 49-17 | K1036967 | DAMPER | |
| 49-18 | K1006368 | RUBBER | |
| 50 | 903-00074A | GLASS, FRONT LOWER | |
| 51 | 142-00128B | STRIKER | |
| 52 | 142-00127C | STRIKER | |
| 53 | 116-00089B | STOPPER, RUBBER | |
| 54 | 116-00090B | STOPPER, RUBBER | |
| 55 | 2140-1338 | PIPE;SPACER | |
| 57 | 549-00086 | SWITCH | |
| 63 | 161-00618B | STOPPER | |
| 64 | 161-00619B | STOPPER | |
| 69 | 129-00155 | SPRING, ASSIST | |
| 74 | 270-00062A | ROLLER, ASSIST CABLE | |
| 78 | S3450993 | SCREW M6X1.0X25 | |
| 80 | 2120-2166D52 | BOLT | |
| 80 | 2120-2166D52 | BOLT | |
| 80 | 2120-2166D52 | BOLT | |
| 83 | 191-03734A | PLATE, WASHER | |
| 88 | K1003284 | STRIKER | |
| 103 | S4034833 | NUT | |
| 112 | S6540600 | RING;RETAINING | |
| 118 | K1027768 | FOAM | |
| 119 | K1027769 | FOAM |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
