K1000321A
K1000321A
K1000321B
K1000321B
K1000321C
K1000321C
K1000321G
K1000321G
1
1
1
1
1
1
1
1
1A
1A
2
2
2
2
3
4
5
6
7
7
8
8
9
9

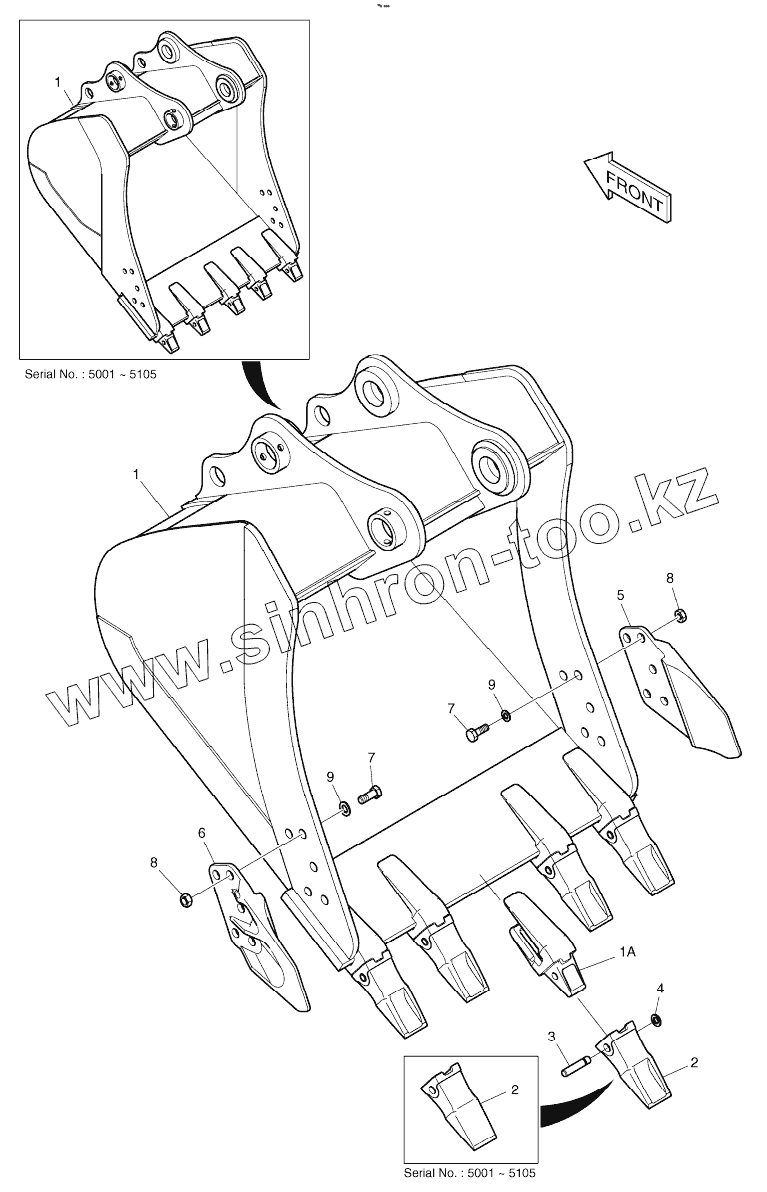

Позиция на иллюстрации
Заводской номер детали
Название детали
K1000321A
K1000321A
BUCKET ASSY
K1000321B
K1000321B
BUCKET ASSY
K1000321C
K1000321C
BUCKET ASSY
K1000321G
K1000321G
BUCKET ASSY-092m3
1
K1000322A
BUCKET
1
K1000322B
BUCKET
1
K1000322C
BUCKET
1
K1000322G
BUCKET-092m3
1A
2713-1218
ADAPTER;TOOTH
1A
2713-1218A
ADAPTER, TOOTH
2
K1000344
POINT;TOOTH
2
K1038006A
TOOTH
3
2705-1020
PIN;LOCKING
4
2114-1848A
WASHER;LOCKING
5
2713-1059A
CUTTER;SIDE(R.H)
6
2713-1060A
CUTTER;SIDE(L.H)
7
S0574861
BOLT M24X3.0X75
8
S4013333
NUT M24
9
2114-1831A
WASHER;HARDEN
