Позиция на иллюстрации
Заводской номер детали
Название детали

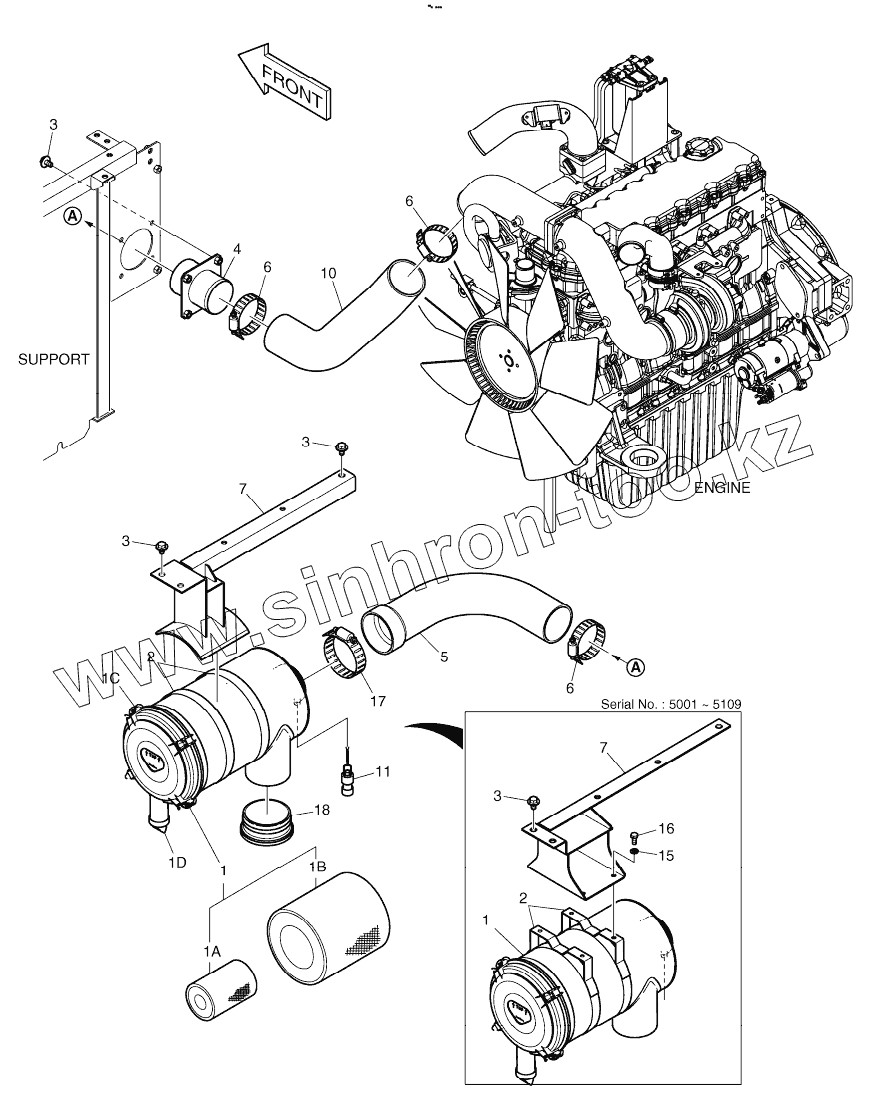

K1010224B
K1010224B
AIR CLEANER
1
204-00067
AIR CLEANER
1A
474-00039
ELEMENT, INNER
1B
474-00040
ELEMENT, OUTER
1C
204-00075
COVER
1D
204-00070
VALVE
2
124-00298A
BAND
2
124-00298B
BAND, AIR CLEANER
3
DS0025015
BOLT
4
K1010415A
PIPE, AIR
5
K1010388A
HOSE, AIR
6
S8510118
CLAMP;HOSE
7
195-03434B
SUPPORT
7
195-03434E
SUPPORT
10
K1010396A
HOSE, AIR
11
170-00004
INDICATOR
15
S5010613
WASHER;PLAIN
16
S0512066
BOLT
17
S8510143
Clamp
18
K1003618
CAP, RAIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
