Каталог запасных частей к технике: Doosan DX140W. ROOF COVER - STEEL

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD BREATHER PIPE VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT-TOP OVER HAUL GASKET KIT - ALL MAIN FRAME COUNTER WEIGHT MOUNTING COUNTER WEIGHT ENGINE MOUNTING RADIATOR AND RESERVE TANK RADIATOR (5001 ~ 7986) RADIATOR (7987 ~ ) MUFFLER AIR CLEANER ASSY AIR CLEANER PUMP INSTALLATION FUEL TANK OIL TANK SWING DEVICE ENGINE CONTROL ASSY LEVER ASSY OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (1) - PUMP, SWING MAIN PIPING (2) - TRAVEL MAIN PIPING (3) - BOOM MAIN PIPING (4) - ARM, BUCKET PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) BRAKE PIPING (1) BRAKE PIPING (2) STEERING PIPING STEERING WHEEL ASSY STEERING COLUMN ASSY COLUMN ASSY CONTROL STAND - L.H. CONTROL STAND - R.H SEAT SLIDING PLATE SEAT PLATE SEAT MOUNTING SEAT DUCT COVER HEATER COVER CABIN MOUNTING CABIN (1) CABIN (2) CABIN (3) CABIN (4) HANDLE - CABIN FLOOR MAT FLOOR PLATE HANDLE ASSY SUN ROOF COVER FOOT REST (L.H) ROOM MIRROR SUPPORT SIDE DOOR - L.H. SIDE DOOR - R.H. BATTERY COVER ENGINE COVER COVER HANDRAIL BAFFLE ASSY (1) BAFFLE ASSY (2) FOAM ASSY UNDER COVER (5001 ~ 8191) UNDER COVER (8192 ~) LUBRICATOR PIPING ELECTRIC BOX ASSY EPOS (7604 ~ ) ELECTRIC PARTS - CABIN ELECTRIC PARTS - CONTROL ELECTRIC PARTS - RELATED (1) ELECTRIC PARTS - ENGINE (5001-7580) ELECTRIC PARTS - ENGINE (7581-) ELECTRIC PARTS-WORKING ELECTRIC PARTS - WIRING ALTERNATOR ASSY AIR CONDITIONER (1) AIRCON UNIT AIR CONDITIONER (2) CHASSIS FRAME CRADLE POWER TRAIN - AXLE POWER TRAIN - TIRE POWER TRAIN - SHAFT CHASSIS COMPONENTS (1) CHASSIS COMPONENTS (2) BRAKE PIPING STEER AND CHOCKING PIPING PROPELLING PIPING PROPELLING PIPING - SWIVEL JOINT BLADE BALDE PIPING BLADE PIPING - REAR DOZER ONLY BOOM - 4.3M ARM 2.1M BUCKET ASSY- 0.59M3 BOOM PIPING - 4.3M LUBRICATION PIPING - BOOM ARM PIPING - 2.1M MAIN PUMP MAIN PUMP - ROTARY GROUP MAIN PUMP - CONTROL MAIN PUMP - COVER SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR TRAVEL MOTOR - ROTARY GROUP TRAVEL MOTOR - CONROL TRAVEL MOTOR - CONROL PART TRAVEL MOTOR - STROKE LIMITER TRAVEL MOTOR - COUNTER BALANCE CONTROL VALVE SOLENOID VALVE JOYSTICK VALVE JOYSTICK VALVE - DOZER BRAKE SUPPLY VALVE SOLENOID VALVE QUICK CLAMP VALVE CENTER JOINT - NOT INDE. CENTER JOINT - INDEPENDENT ATTACH BOOM CYLINDER - L.H. (5001 ~ 8191) BOOM CYLINDER - L.H. (8192 ~ ) BOOM CYLINDER - R.H. (5001 ~ 8191) BOOM CYLINDER - R.H. (8192 ~ ) ARM CYLINDER - ARM 2.1M (5001 ~ 8191) ARM CYLINDER - ARM 2.1M (8192-) ARM CYLINDER-2.5m (5001 ~ 8191) ARM CYLINDER - ARM 2.5M (8192 ~) BUCKET CYLINDER (55001 ~ 8191) BUCKET CYLINDER (8192 ~) DOZER CYLINDER (L.H.) DOZER CYLINDER (R.H.) CHOCKING CYLINDER - L.H. (5001-7572) CHOCKING CYLINDER - L.H. (7573-) CHOCKING CYLINDER - R.H. (5001-7572) CHOCKING CYLINDER - R.H. (7573-) OUTRIGGER CYLINDER (L.H.) OUTRIGGER CYLINDER (R.H.) BOOM CYLINDER - L.H. (LOCK VALVE) (55001 ~ 8191) BOOM CYLINDER - L.H. (LOCK VALVE) (8192 ~) BOOM CYLINDER - R.H. (LOCK VALVE) (55001 ~ 8191) BOOM CYLINDER - R.H. (LOCK VALVE) (8192 ~) ARM CYLINDER - ARM 2.1M (LOCK VALVE) (55001 ~ 8191) ARM CYLINDER - ARM 2.1M (LOCK VALVE) (8192 ~) ARM CYLINDER - ARM 2.5M (LOCK VALVE) (55001 ~ 8191) ARM CYLINDER - ARM 2.5M (LOCK VALVE) (8192 ~) GEAR PUMP-ROTATION PEDAL VALVE INPUT - FRONT AXLE (5001 ~7504) INPUT - FRONT AXLE (7505 ~8165) INPUT - FRONT AXLE DIFFERENTIAL GEAR - FRONT AXLE (5001~7504) DIFFERENTIAL GEAR - FRONT AXLE (7505~8165) DIFFERENTIAL GEAR - FRONT AXLE (8166~) AXLE CASING - FRONT AXLE (5001~8165) AXLE CASING - FRONT AXLE (8166~) JOINT HOUSING - FRONT AXLE (5001~8165) JOINT HOUSING - FRONT AXLE (8166~) STEERING CYLINDER - FRONT (5001~8165) STEERING CYLINDER - FRONT (8166~) OUTPUT - FRONT AXLE (5001~7504) OUTPUT - FRONT AXLE (7505 ~8165) OUTPUT - FRONT AXLE (8166 ~ ) DIFFERENTIAL GEAR - REAR AXLE (5001~7504) DIFFERENTIAL GEAR - REAR AXLE (7505~) AXLE CASING - REAR AXLE HUB CARRIER - REAR AXLE OUTPUT - REAR AXLE (5001~7504) OUTPUT - REAR AXLE (7505 ~ ) INPUT - MISSION HOUSING - MISSION MIDDLE DISC - MISSION COUPLING - MISSION PLANETARY GEAR - MISSION OUTPUT - MISSION GEAR SHIFT SYSTEM - MISSION OIL PIPE - MISSION GEAR PUMP - STEERING TOOLS SPARE PARTS SEAT MOUNTING - HEATER SEAT - HEATER FUEL FILLER PUMP ROOF COVER - STEEL RAIN SHIELD RAIN SHIELD AND LAMP MOUNTING CABIN LOW GUARD WINDOW GUARD FOGS GUARD SINGLE TIRE TIRE 10.0x16PR ALTERNATOR 80A CD PLAYER CASSETTE PLAYER (5001 ~ 7558) WORKING LAMP SWITCH WORKING LAMP-2LAMP WORKING LAMP-4LAMP WORKING LAMP-REAR LAMP ROTATING BEACON ROTATING BEACON MOUNTING ROTATING BEACON (TELESCOPIC) WITH LAMP ROTATING BEACON (TELESCOPIC) W/O LAMP OVER LOAD WARNING LOWER WIPER WORKING LAMP-2LAMP WORKING LAMP-4LAMP ROTATING BEACON - WITH FOGS FLOOR MAT - ONE AND TWO WAY MAIN PIPING - ONE WAY (BREAKER) PILOT PIPING (1) - ONE WAY PILOT PIPING (2) - ONE WAY MAIN PIPING-TWO WAY PILOT PIPING (1) - TWO WAY PILOT PIPING (2) - TWO WAY BOOM PIPING ONE AND TWO WAY (BOOM-4.3M) ARM PIPING-ONE AND TWO WAY (ARM-2.1M) ARM PIPING - ARM 2.1 (CLAMSHELL) MAIN PIPING - QUICK CLAMP ELECTRIC PARTS - QUICK CLAMP BOOM PIPING-QUICK CLAMP (BOOM-4.3M) ARM PIPING-QUICK CLAMP (ARM-2.1M) MAIN PIPING-ROTATING PILOT PIPING-ROTATING (1) PILOT PIPING - ROTATING +QUICK CLAMP PILOT PIPING-ROTATING (2) PILOT PIPING TWO WAY + ROTATING FLOOR MAT TWO WAY + ROTATING BOOM PIPING - BOOM 4.3M ARM PIPING ARM 2.1m ROTATING MAIN PIPING LOCK VALVE PILOT PIPING LOCK VALVE BOOM PIPING LOCK VALVE ARM LOCK VALVE PIPING - BOOM 4.3M BOOM - 4.6M BOOM PIPING - BOOM 4.6M LUBRICATION PIPING - BOOM 4.6M BOOM PIPING-ONE AND TWO WAY (BOOM 4.6M) BOOM PIPING-QUICK CLAMP (BOOM 4.6M) BOOM PIPING - BOOM 4.6M ROTATING ARM LOCK VALVE PIPING - BOOM 4.6M ARM - 2.5M ARM PIPING - ARM 2.5M ARM PIPING-ONE AND TWO WAY (ARM 2.5M) ARM PIPING - ARM 2.5M (CLAMSHELL) ARM PIPING-QUICK CLAMP (ARM 2.5M) ARM PIPING 2.5m ROTATING BUCKET 0.24m3 (460mm) BUCKET 0.39m3 BUCKET 0.45m3 BUCKET 0.51m3 BUCKET 0.64m3 BUCKET 0.76m3 BUCKET ASSY - 0.38m3 (30") - SIDE PIN BUCKET ASSY - 0.44m3 (33") - SIDE PIN BUCKET ASSY - 0.48m3 (36") - SIDE PIN PILOT PIPING - FRONT ATTACH UNDER CARRIAGE PIPING - NOT INDE FRONT DOZER FRONT DOZER PIPING SWITCH - FRONT DOZER REAR OUTRIGGER (5001 ~ 7632) REAR OUTRIGGER (7633 ~) FRONT/REAR OUTRIGGER PIPING SWITCH - FRONT OUTRIGGER (NOT INDE) FRONT OUTRIGGER (5001 ~ 7632) FRONT OUTRIGGER (7633 ~ ) PILOT PIPING - INDEPENDENT ELECTRIC PARTS - INDEPENDENT OUTRIGGER FRONT DOZER AND REAR OUTRI.PIPING (INDE) SLIP RING (5001 ~ 8072) SLIP RING (8073~) FRONT OUTRI. AND REAR DOZER PIPING (INDE) 4 OUTRIGGER PIPING - INDE FRONT / REAR OUTRIGGER PIPING - INDE SWITCH - FRONT OUTRIGGER (INDE) SWITCH - REAR OUTRIGGER (INDE) TROPICAL PARTS - ENGINE PARTS TROPICAL PARTS - COVER COUNTER WEIGHT - 2.2TON COUNTER WEIGHT - 2.5TON TIRE - 10.0X20X14PR CONTROL STAND - L.H. (ROPS) CONTROL STAND - R.H. (ROPS) SEAT PLATE - ROPS SEAT BASE - ROPS SUSPENSION - ROPS SEAT MOUNTING - ROPS SEAT - ROPS DUCT COVER - ROPS HEATER COVER - ROPS CABIN MOUNT - ROPS CABIN (1) - ROPS CABIN (2) - ROPS CABIN (3) - ROPS CABIN (4) - ROPS HANDLE - CABIN ROPS HANDLE - INNER (CABIN) MIRROR - ADDITIONAL (CABIN) ROOM MIRROR ROOF COVER - PC (ROPS) ROOF COVER - STEEL (ROPS) FLOOR PLATE - ROPS FOOT REST - L.H (ROPS) FLOOR MAT - ROPS FLOOR MAT - TWO PEDAL (ROPS) FLOOR MAT - THREE PEDAL (ROPS) RAIN SHIELD - ROPS CABIN LOW GUARD - ROPS WINDOW GUARD - ROPS FOGS GUARD - ROPS PILOT PIPING (1) - ROPS PILOT PIPING (2) - ROPS PILOT PIPING (3) - ROPS PILOT PIPING (4) - ROPS PILOT PIPING (5) - ROPS PILOT PIPING - TWO WAY (ROPS) PILOT PIPING - ROTATING (ROPS) PILOT PIPING - TWO WAY + ROTATIONG ROPS ELECTRIC PARTS - CABIN (ROPS) ELECTRIC PARTS - CONTROL STAND ROPS AUDIO - ROPS WORKING LAMP (2-LAMP) - ROPS WORKING LAMP (6-LAMP) - ROPS WORKING LAMP (2-LAMP) - ROPS GUARD WORKING LAMP (2-LAMP) - ROPS GUARD ROTATING BEACON - ROPS ROTATING BEACON - WITH LAMP ROPS ROTATING BEACON - WITH GUAR DROPS ROTATING BEACON - WITH LAMP AND GUAR ROPS TELESCOPIC BEACON - ROPS TELESCOPIC BEACON - WITH LAMP ROPS VENTILATION - ROPS AIRCONDITIONER - ROPS QUICK CLAMP SWITCH - ROPS LOWER WIPER - ROPS SWITCH - FRONT OUTRIGGER (NOT INDE) SWITCH - FRONT DOZER SWITCH - FRONT OUTRIGGER (NOT INDE) SWITCH - REAR DOZER SWITCH - REAR OUTRIGGER (INDE) ELECTRIC WIRING - ROPS BUCKET ASSY - 0.21M - H CLASS (5001-8183) BUCKET ASSY - 0.31M - H CLASS BUCKET ASSY - 0.42M - H CLASS BUCKET ASSY - 0.52M - H CLASS BUCKET ASSY - 0.60M - H CLASS BUCKET ASSY - 0.67M - H CLASS BUCKET ASSY - 0.74M - H CLASS STEERING PIPING (1) - EMR STEERING PIPING (2) - EMR STEERING WHEEL ASSY - EMR (NON ROPS) (8044-) STEERING WHEEL ASSY- EMR (ROPS) (8044-) TMS - NA (8065 ~) TMS - EU (8065 ~) TMS (ROPS) (8065 ~) BUCKET ASSY - 0.39M - G CLASS BUCKET ASSY - 0.45M - G CLASS BUCKET ASSY - 0.51M - G CLASS BUCKET ASSY - 0.59M - G CLASS BUCKET ASSY - 0.64M - G CLASS BUCKET ASSY - 0.76M - G CLASS

1

2

3

4

5

5

6

6

7

7

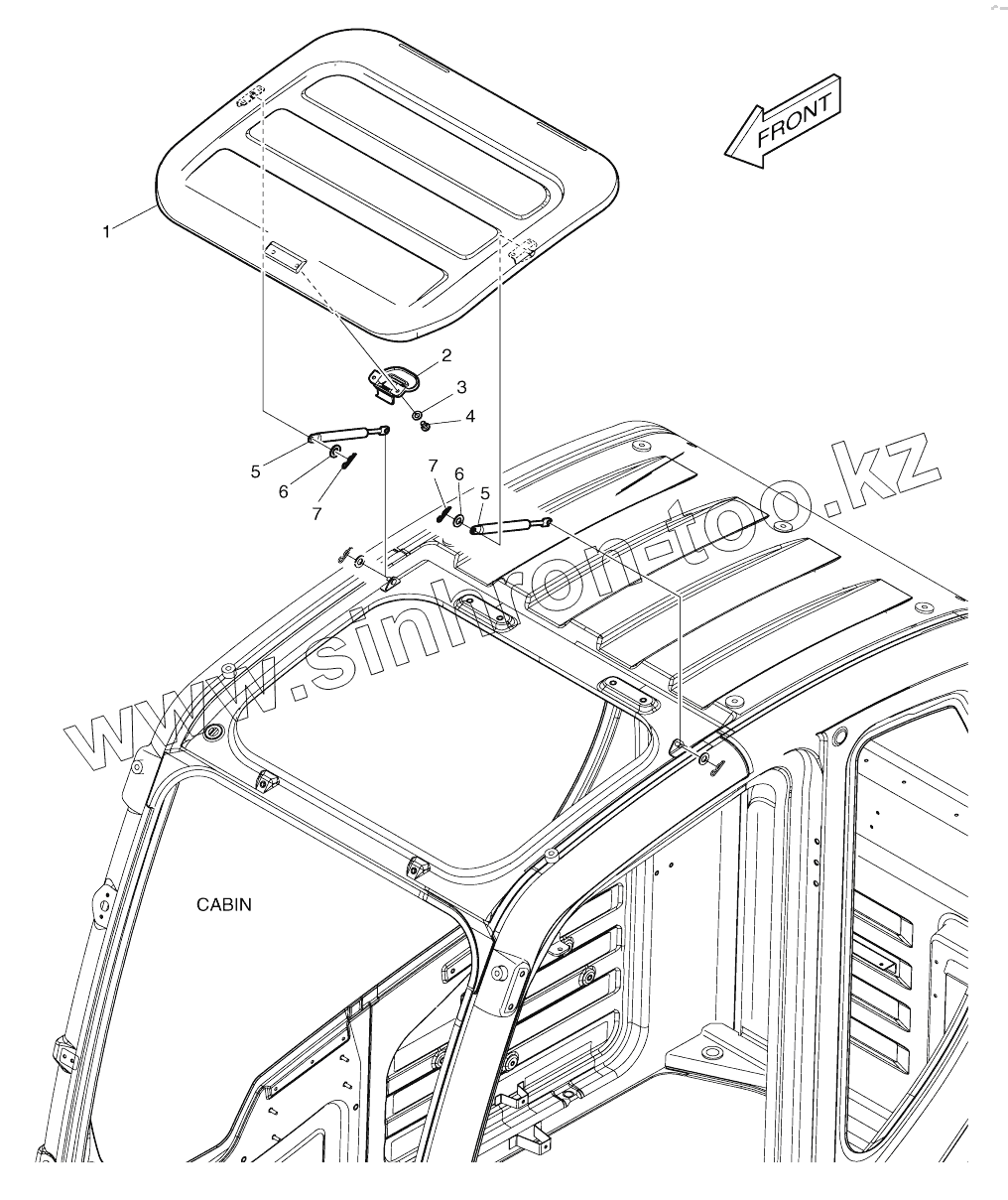

Позиция на иллюстрации	Заводской номер детали		Название детали
621-03732C	621-03732C		ROOF COVER ASSY
1	621-03727B		COVER, ROOF
2	123-00516B		LOCK ASSY
3	2114-1898D3		WASHER
4	2120-2166D9		Screw
5	DS1003009		GAS-SPRING
6	2114-1898D14		WASHER
7	123-00523		PIN, GAS-SPRING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
