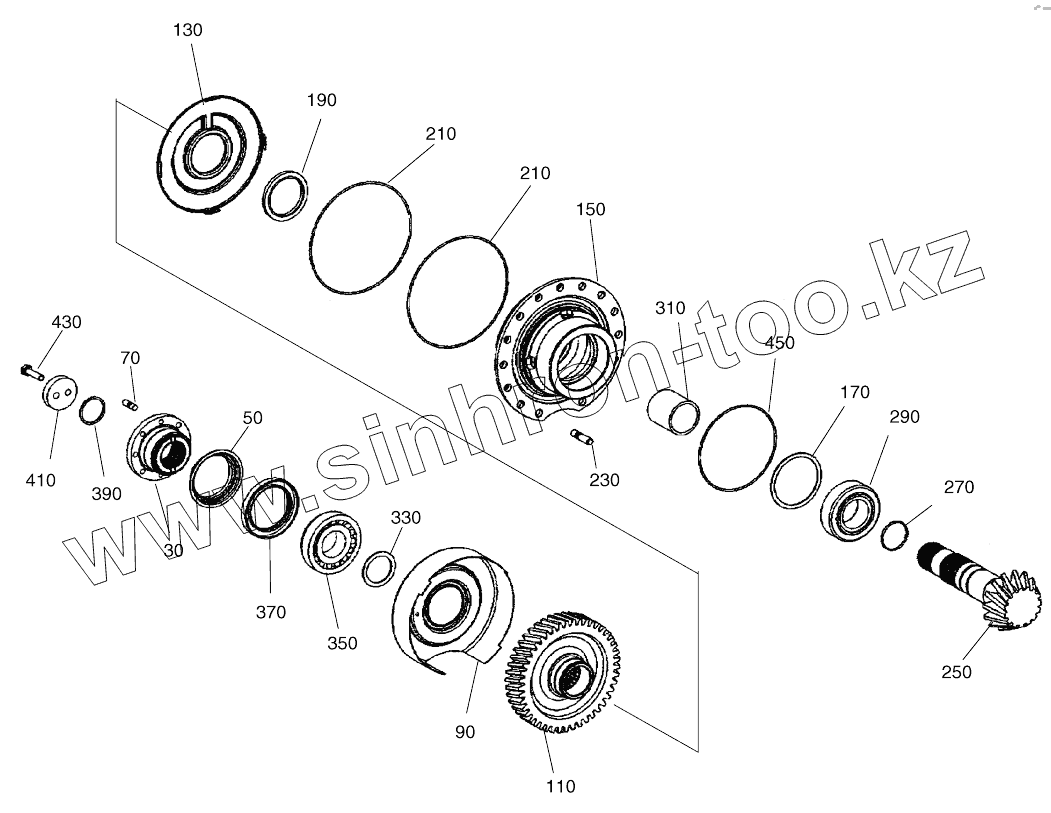

Каталог запасных частей к технике: Doosan DX140W. OUTPUT - MISSION
30
50
70
90
110
130
150
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
170
190
210
210
230
250
250
270
290
310
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
330
350
370
390
410
430
450
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 30 | 2.181-00075 | Flange, output | |
| 50 | K9001658 | Sheet | |
| 70 | 2.120-00328 | STUD | |
| 90 | K9001610 | Sheet, screen | |
| 110 | K9001611 | GEAR, OUTPUT | |
| 130 | K9001612 | Deflector, oil | |
| 150 | K9001613 | COVER, BEARING | |
| 170 | K9001620 | Washer | |
| 170 | K9001631 | Washer | |
| 170 | K9001621 | Washer | |
| 170 | K9001622 | Washer | |
| 170 | K9001623 | Washer | |
| 170 | K9001624 | Washer | |
| 170 | K9001625 | Washer | |
| 170 | K9001626 | Washer | |
| 170 | K9001627 | Washer | |
| 170 | K9001628 | Washer | |
| 170 | K9001629 | Washer | |
| 170 | K9001630 | Washer | |
| 170 | K9001632 | Washer | |
| 170 | 1.114-00159 | Washer | |
| 170 | 2.114-00677 | Washer | |
| 170 | 2.114-00671 | Washer | |
| 170 | K9001619 | Washer | |
| 170 | 2.114-00662 | Washer | |
| 170 | 1.114-00190 | Washer | |
| 170 | 1.114-00158 | Washer | |
| 170 | 1.114-00160 | Washer | |
| 170 | 1.114-00161 | Washer | |
| 170 | K9001614 | Washer | |
| 170 | K9001615 | Washer | |
| 170 | K9001616 | Washer | |
| 170 | K9001617 | Washer | |
| 170 | K9001618 | Washer | |
| 190 | 1.180-00538 | SEAL, SHAFT | |
| 210 | 2.180-00436 | O-ring | |
| 230 | K9001633 | STUD | |
| 250 | K9001659 | GEAR, PINION | |
| 250 | 130419-00117 | GEAR, PINION | |
| 270 | 1.180-00132 | O-RING | |
| 290 | 1.109-00074 | BEARING, ROLLER | |
| 310 | K9001634 | BUSH | |
| 330 | K9001642 | RING | |
| 330 | K9001643 | RING | |
| 330 | K9001644 | RING | |
| 330 | K9001645 | RING | |
| 330 | K9001641 | RING | |
| 330 | K9001646 | RING | |
| 330 | K9001647 | RING | |
| 330 | K9001648 | RING | |
| 330 | K9001649 | RING | |
| 330 | K9001650 | RING | |
| 330 | K9001651 | RING | |
| 330 | K9001652 | RING | |
| 330 | K9001653 | RING | |
| 330 | K9001654 | RING | |
| 330 | K9001655 | RING | |
| 330 | 401003-00714 | RING | |
| 330 | 401003-00715 | RING | |
| 330 | 401003-00716 | RING | |
| 330 | 401003-00717 | RING | |
| 330 | 401003-00718 | RING | |
| 330 | 401003-00719 | RING | |
| 330 | 401003-00720 | RING | |
| 330 | 1.114-00397 | RING | |
| 330 | K9001639 | RING | |
| 330 | 1.114-00393 | RING | |
| 330 | 1.114-00394 | RING | |
| 330 | 1.114-00395 | RING | |
| 330 | 1.114-00396 | RING | |
| 330 | 1.114-00398 | RING | |
| 330 | 1.114-00399 | RING | |
| 330 | 1.114-00400 | RING | |
| 330 | 1.114-00401 | RING | |
| 330 | 1.114-00402 | RING | |
| 330 | 1.114-00403 | RING | |
| 330 | 1.114-00405 | RING | |
| 330 | K9001640 | RING | |
| 330 | K9001638 | RING | |
| 330 | K9001637 | RING | |
| 330 | K9001636 | RING | |
| 330 | K9001635 | RING | |
| 330 | 1.114-00390 | RING | |
| 330 | 1.114-00389 | RING | |
| 330 | 1.114-00388 | RING | |
| 330 | 1.114-00406 | RING | |
| 330 | 1.114-00404 | RING | |
| 350 | 1.109-00091 | BEARING, ROLLER | |
| 370 | K9001656 | Seal, shaft | |
| 390 | 1.180-00131 | O-RING | |
| 410 | 2.114-00871 | Washer | |
| 430 | 1.120-00142 | SCREW | |
| 450 | K9001657 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
