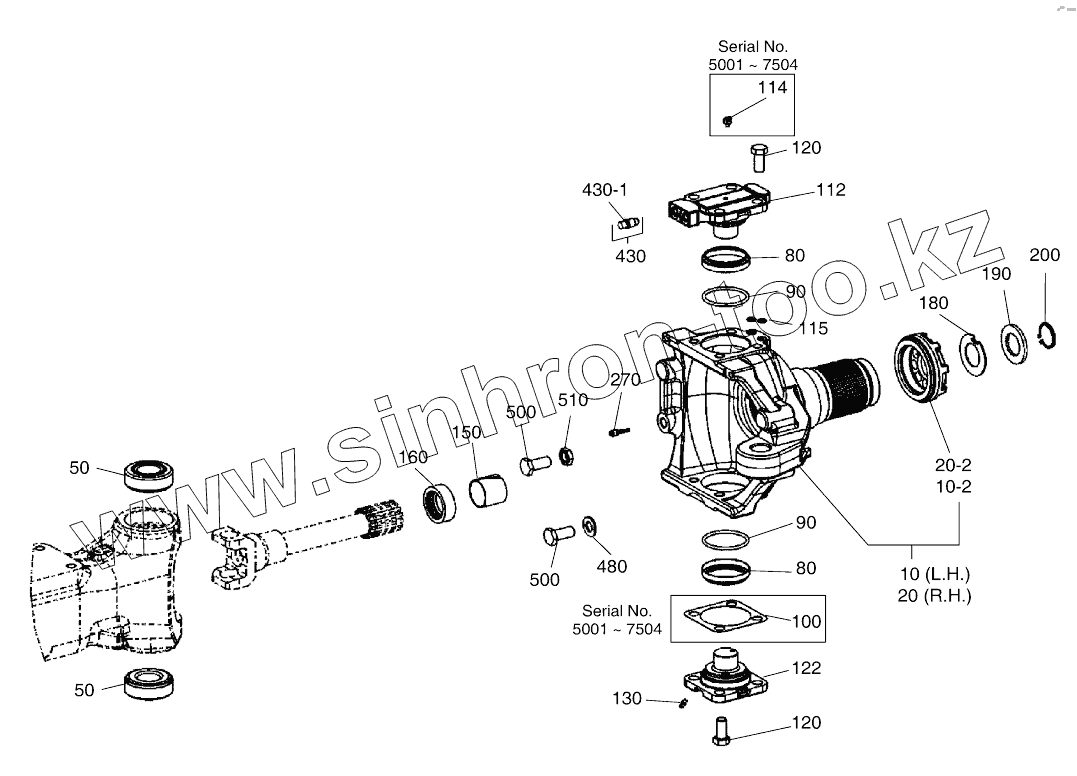

Каталог запасных частей к технике: Doosan DX140W. JOINT HOUSING - FRONT AXLE (5001~8165)

Тип техники

Марка

Модель

Схема

10

10

10-2

20

20

20-2

50

50

50

50

80

80

80

80

90

90

90

90

90

90

100

100

100

112

112

114

115

120

120

122

122

130

130

150

160

180

190

200

270

430

430-1

480

480

480

480

480

480

480

480

480

480

480

480

480

480

480

500

500

510

510

Позиция на иллюстрации	Заводской номер детали		Название детали
10	K9001496		HOUSING, JOINT
10	110931-00169		HOUSING, JOINT
10-2	K9001497		NUT, SLOTTED
20	K9001498		HOUSING, JOINT(R.H)
20	110931-00170		HOUSING, JOINT(R.H)
20-2	K9001497		NUT, SLOTTED
50	K9001499		BEARING, ROLLER
50	140107-00104		BEARING, ROLLER
80	K9001500		CAP, SEALING
80	110910-00120		CAP, SEALING
90	K9001501		O-RING
90	401002-00309		RING, O
100	K9001502		SHIM A=0.6
100	K9001503		SHIM A=0.8
100	K9001504		SHIM A=1.0
112	K9001510		PIN, BEARING
112	120501-00580		PIN, BEARING, UPPER
114	1.181-00013		NIPPLE, GREASE
115	K9001511		O-ring
120	K9006476		BOLT
122	K9001512		PIN, BEARING
122	120501-00581		PIN, BEARING, LOWER
130	1.181-00014		NIPPLE, LUBRIC.
130	K9004085		Nipple
150	1.110-00039		BUSH
160	K9001482		SEAL
180	K9001513		WASHER, THRUST
190	K9001514		WASHER, THRUST
200	K9001515		RING, RETAINING
270	K9001516		Plug
430	1.420-00157		Valve, vent
430-1	K9000167		Cap, dust
480	2.114-01131		Washer, stop
480	2.114-01132		Washer, stop
480	2.114-01127		Washer, stop
480	2.114-01129		Washer, stop
480	2.114-01130		Washer, stop
480	2.114-01128		Washer, stop
480	2.114-01126		Washer, stop
480	1.114-00481		Washer, stop
480	1.114-00482		Washer, stop
480	1.114-00483		Washer, stop
480	1.114-00476		Washer, stop
480	1.114-00477		Washer, stop
480	1.114-00478		Washer, stop
480	1.114-00479		Washer, stop
480	1.114-00480		Washer, stop
500	K9001517		Screw, stop
510	K9001518		Nut
510	K9007269		Nut, hex

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
