Каталог запасных частей к технике: Doosan DX140W. HEATER COVER
1
1
1
1
2
2
2
2
2
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
15
15
15
15
16
17
17
18
18
19
19
20
20
20
20
21
21
22
22
23
24
24
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
28
28
29
30
30
30
30
30
30
30
30
30
30
30
30
31
31
31
31
31
31
31
31
31
31
31
31
32
32
33
34
34
35
36
38
38
38
38
38
38

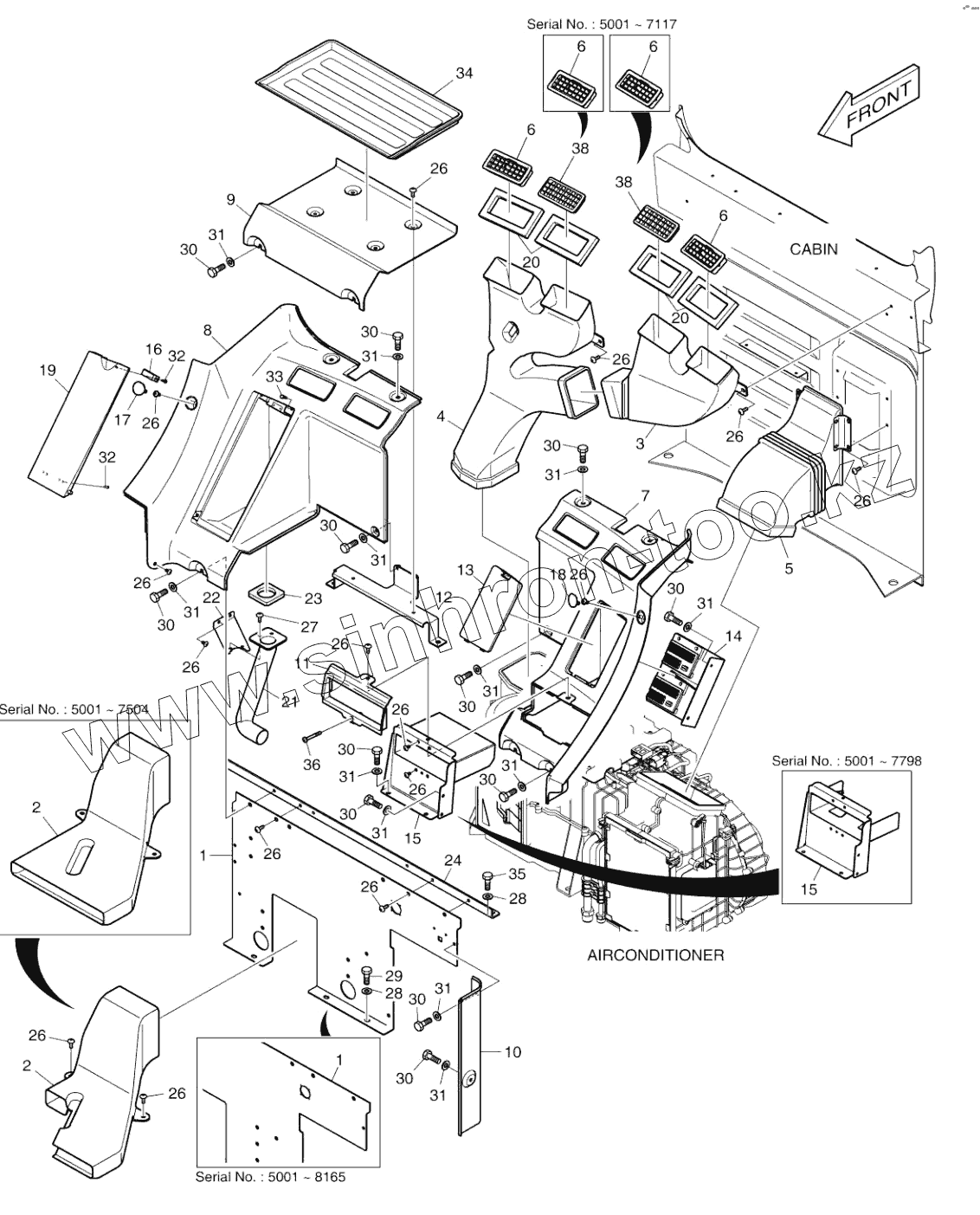

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 650103-00002 | 650103-00002 | REAR ASSY, COVER | |
| 621-02896K | 621-02896K | HEATER COVER | |
| 650103-00002G | 650103-00002G | REAR ASSY, COVER | |
| 650103-00002C | 650103-00002C | REAR ASSY, COVER | |
| 650103-00002A | 650103-00002A | REAR ASSY, COVER | |
| 650103-00002B | 650103-00002B | REAR ASSY, COVER | |
| 1 | 621-02894G | COVER, REAR LOWER | |
| 1 | 250120-00220 | PLATE, REAR, MAIN | |
| 2 | 213-00036B | DUCT, FOOT | |
| 2 | 460103-00039 | DUCT, FOOT | |
| 2 | 460103-00039B | DUCT, FOOT | |
| 3 | 213-00037B | DUCT, REAR | |
| 3 | 460103-00829 | DUCT, REAR | |
| 4 | 213-00038B | DUCT, REAR | |
| 4 | 460103-00830 | DUCT, REAR | |
| 5 | 213-00039B | DUCT, AIR INLET | |
| 5 | 460103-00831 | DUCT, AIR INLET | |
| 6 | 101546-00015 | NOZZLE, REAR | |
| 6 | 415-00043B | NOZZLE, REAR | |
| 6 | 415-00043B | NOZZLE, REAR | |
| 7 | 621-02913C | COVER, REAR | |
| 7 | 110508-16004 | COVER, REAR | |
| 8 | 621-02914C | COVER, REAR | |
| 8 | 110508-16005 | COVER, REAR | |
| 9 | 621-02915B | COVER, REAR CENTER | |
| 9 | 110508-16006 | COVER, REAR CENTER | |
| 10 | 621-02907B | COVER, SIDE REAR | |
| 10 | 110517-00802 | COVER, SIDE, REAR | |
| 11 | 621-02917C | COVER, STEREO UP | |
| 11 | 110508-16007 | COVER, STEREO UP | |
| 12 | K1001295A | PLATE | |
| 12 | K1001295B | PLATE | |
| 13 | 621-02919B | COVER, FUSE | |
| 13 | 110508-16008 | COVER | |
| 14 | 195-02771B | BRACKET, FUSE BOX | |
| 14 | 195-02771C | BRACKET, FUSE BOX | |
| 15 | 195-02772E | BRACKET, STEREO | |
| 15 | 110406-02099 | BRACKET, STEREO | |
| 15 | 195-02772G | BRACKET, STEREO | |
| 16 | 2125-1095A | CATCH;MAGNETIC | |
| 17 | K1005344A | COVER | |
| 17 | 110508-19912 | COVER | |
| 18 | K1005345A | COVER, HOLE | |
| 18 | 110508-19913 | COVER | |
| 19 | 621-02920C | COVER, BOX | |
| 19 | 110508-16009 | COVER | |
| 20 | K1001310 | FOAM | |
| 20 | 180102-00915 | FOAM | |
| 21 | 213-00040A | DUCT, AIR BOX | |
| 21 | 460103-00832 | DUCT, AIR BOX | |
| 22 | 195-02774 | BRACKET, AIR DUCT MOUNT | |
| 22 | 195-02774A | BRACKET, AIR DUCT MOUNT | |
| 23 | 161-00622 | FOAM, AIR SEAL | |
| 24 | 195-02785C | BRACKET, CROSS BAR | |
| 24 | 195-02785E | BRACKET, CROSS BAR | |
| 26 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 27 | 2120-2166D53 | SCREW | |
| 28 | 2114-1898D14 | WASHER | |
| 29 | 2120-2166D12 | Bolt | |
| 30 | 2120-2166D36 | BOLT M6X1.0X20 | |
| 31 | 2114-1898D5 | WASHER;PLAIN M6 | |
| 32 | S3644163 | Screw | |
| 33 | K1002385 | STOPPER | |
| 34 | 161-00624 | PAD, FOAM | |
| 34 | 101555-00255 | PAD | |
| 35 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 36 | 2120-2166D58 | BOLT | |
| 38 | K1043726 | NOZZLE, REAR | |
| 38 | 101546-00011 | LOUVER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
