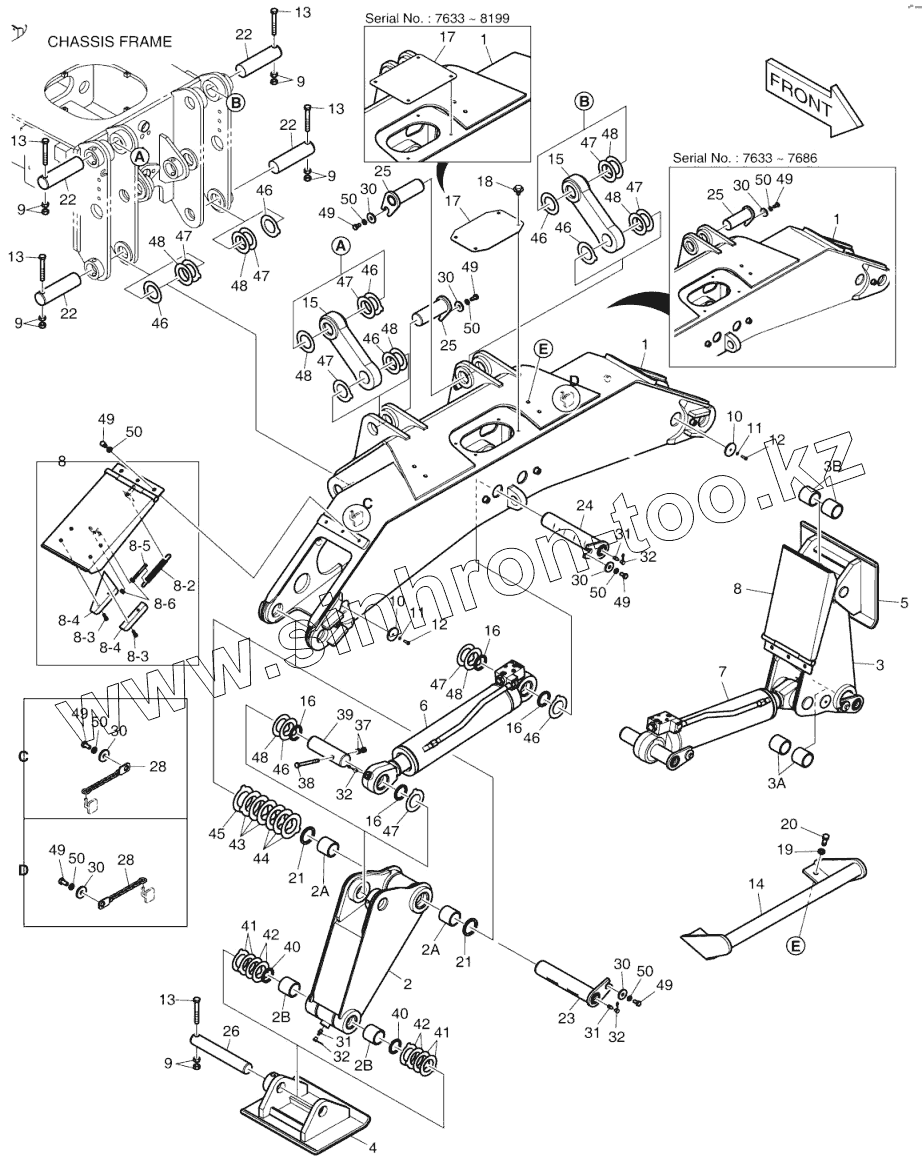

Каталог запасных частей к технике: Doosan DX140W. FRONT OUTRIGGER (7633 ~ )
1
1
1
1
1
1
1
1
1
2
2
2A
2A
2B
2B
3
3
3A
3B
4
5
6
7
8
8
8-2
8-3
8-3
8-4
8-4
8-5
8-6
9
9
9
9
9
10
10
11
11
12
12
13
13
13
13
13
14
15
15
16
16
16
16
16
16
16
16
16
16
17
17
17
17
18
19
20
21
21
21
21
22
22
22
22
23
24
25
25
25
25
25
25
26
28
28
30
30
30
30
30
30
30
31
31
31
32
32
32
32
37
38
39
40
40
40
40
41
41
42
42
43
44
45
46
46
46
46
46
46
46
46
47
47
47
47
47
47
47
47
48
48
48
48
48
48
48
48
49
49
49
49
49
49
49
49
50
50
50
50
50
50
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 101554-00021 | 101554-00021 | OUTRIGGER ASSY | |
| 1 | 160624-00005C | FRAME, OUTRIGGER | |
| 1 | 160624-00005E | FRAME, OUTRIGGER | |
| 1 | 160624-00005G | FRAME, OUTRIGGER | |
| 2 | 101534-00210 | LEG, OUTRIGGER | |
| 2 | 101534-00210A | LEG, OUTRIGGER | |
| 2A | 110-00267 | BUSH | |
| 2B | 110-00268 | BUSH | |
| 3 | 101534-00211 | LEG, OUTRIGGER | |
| 3 | 101534-00211A | LEG, OUTRIGGER | |
| 3A | 110-00267 | BUSH | |
| 3B | 110-00268 | BUSH | |
| 4 | 195-02712B | FOOT, STABILIZER | |
| 5 | 195-02713B | FOOT, STABILIZER | |
| 6 | 440-00450C | CYLINDER, OUTRIGGER | |
| 7 | 440-00451C | CYLINDER, OUTRIGGER | |
| 8 | 110508-00760A | COVER | |
| 8 | COVER | Cover | |
| 8-2 | 111601-00127 | SPRING | |
| 8-3 | S2209266 | Bolt | |
| 8-4 | K1026710 | STOPPER | |
| 8-5 | 2136-1362A | Rod | |
| 8-6 | S4012633 | NUT M10X1.5 | |
| 9 | S4012933 | NUT | |
| 10 | K1002629 | REFLECTOR | |
| 11 | S5102203 | WASHER SPRING M5 | |
| 12 | S3450853 | SCREW M5X0.8X16 | |
| 13 | S0566666 | BOLT M16X2.0X120 | |
| 14 | 110965-00005 | CRADLE, BUCKET | |
| 15 | 101539-00131 | LINK | |
| 16 | 2180-1106BD9 | SEAL, DUST | |
| 16 | DS5501009 | SEAL, DUST | |
| 17 | 621-02830C | COVER | |
| 17 | 110508-27625 | COVER | |
| 18 | DS0025014 | BOLT | |
| 19 | S5102903 | WASHER;SPRING | |
| 20 | S0521666 | BOLT M16X2.0X50 | |
| 21 | 2180-1106BD3 | SEAL;DUST | |
| 21 | DS5501003 | SEAL, DUST | |
| 22 | 120501-00996 | PIN | |
| 23 | 120501-00531B | PIN | |
| 24 | 120501-00533B | PIN | |
| 25 | 120501-00454B | PIN | |
| 25 | 120501-00454C | PIN | |
| 26 | 120501-01002 | PIN | |
| 28 | K1018780A | CHAIN, OUTRIGGER | |
| 30 | 4114-4078A | Washer | |
| 31 | S6710043 | NIPPLE;GREASE(PT1/8) | |
| 32 | 160-00020 | CAP;GREASE NIPPLE | |
| 37 | S4012733 | NUT M12 | |
| 38 | S0562366 | BOLT | |
| 39 | 120501-00896A | PIN | |
| 40 | 2180-1106BD1 | SEAL, DUST | |
| 40 | DS5501001 | SEAL, DUST | |
| 41 | 2114-1058D19 | Washer | |
| 42 | 2114-1058D18 | Washer | |
| 43 | DS7752002 | SHIM | |
| 44 | DS7752001 | SHIM | |
| 45 | DS7752080 | SHIM | |
| 46 | DS7752079 | SHIM | |
| 47 | DS7752041 | SHIM | |
| 48 | DS7752040 | SHIM | |
| 49 | S0515066 | Bolt | |
| 50 | S5102703 | WASHER;SPRING M10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
