Каталог запасных частей к технике: Doosan DX140W. ELECTRIC PARTS - WIRING
500-00328E
300619-01049
1
1
1
1
1
1-1
1-2
1-3
1-4
2
2
3
3
4
4
5
5
6
7
8
9
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
12
13
13
13
13
14
14-1
14-2
14-3
14-4
14-5
14-6
14-7
14-8
15
15
16
16
17
17
19
19
19
19
19
19
20
20
20
20
21
21
21
21
22
22
22
22
22
22
22
22
23
23
23
24
24
24
25
25
26
27
28
28
28
33
33

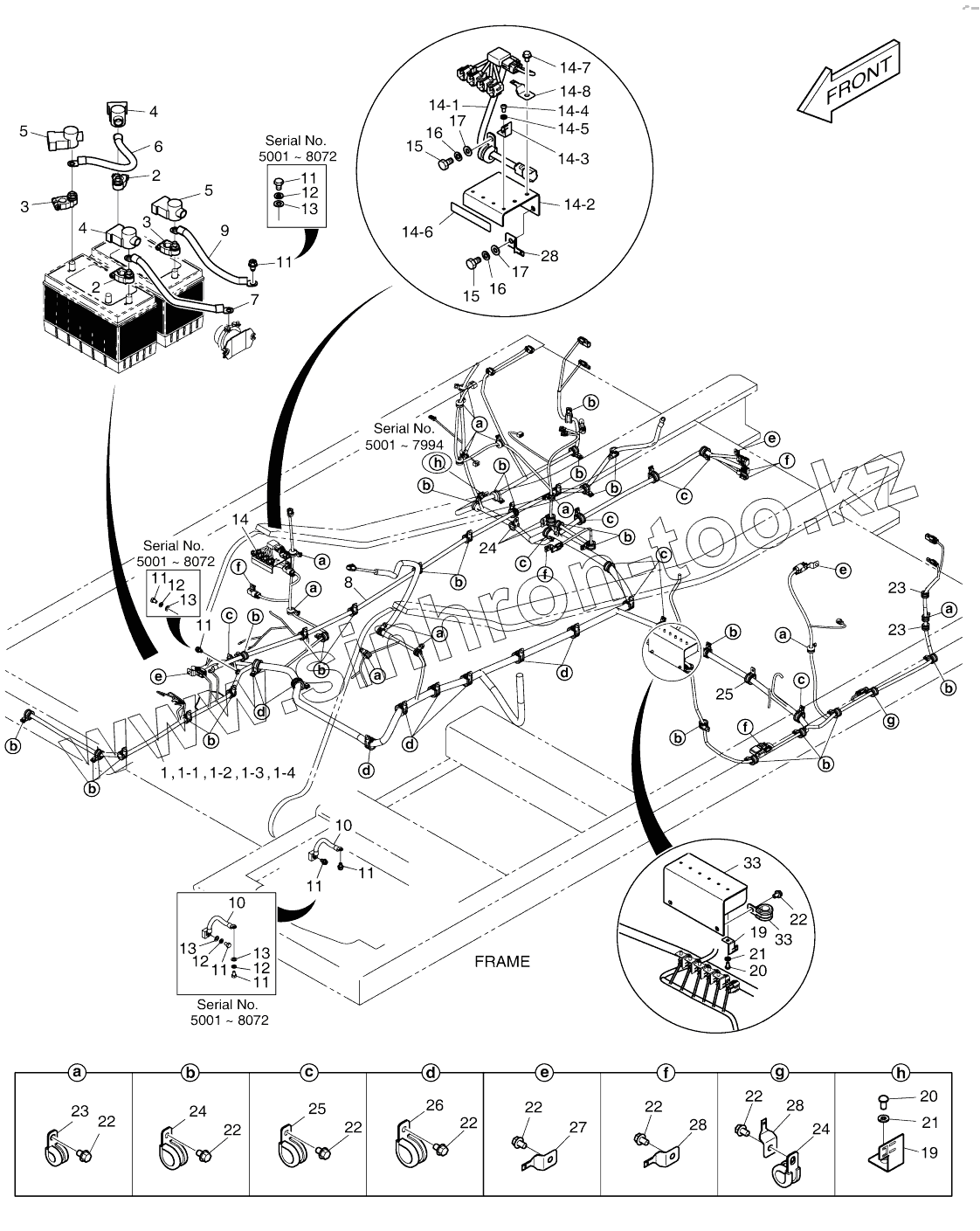

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 500-00328E | 500-00328E | ELECTRIC ASSY-WIRING HARNESS | |
| 300619-01049 | 300619-01049 | ELECTRIC ASSY, WIRING | |
| 1 | 530-00426J | HARNESS, MAIN | |
| 1 | 310207-01085 | HARNESS, MAIN | |
| 1 | 310207-01085A | HARNESS, MAIN | |
| 1 | 310207-01085B | HARNESS, MAIN | |
| 1 | 310207-01085E | HARNESS, MAIN | |
| 1-1 | 2548-1027 | DIODE ASS'Y 3A | |
| 1-2 | 548-00003A | DIODE ASS'Y 3A | |
| 1-3 | K1000815 | DIODE, 8 PIN | |
| 1-4 | K1000814 | DIODE | |
| 2 | 2550-1014D1 | TERMINAL;BATTERY(+) | |
| 3 | 2550-1014D2 | TERMINAL;BATTERY(-) | |
| 4 | 2160-1212 | CAP;BATTTML (+) | |
| 5 | 2160-1213 | CAP;BATTTML (-) | |
| 6 | 2553-1275D6 | CABLE;BATT-BATT 60R-250L | |
| 7 | 2553-1275D69 | CABLE;BATT-BATT RELAY 60R-300L | |
| 8 | 2553-1275D8 | CABLE, BATT RY-STARTER | |
| 9 | 2553-1275D82 | Cable, batt earth | |
| 10 | 2553-1275D5 | CABLE;FL PLATE-EARTH 60B-300L | |
| 10 | 2553-1275D39 | CABLE, EARTH | |
| 11 | S0511653 | BOLT M10X1.5X16 | |
| 11 | 120106-00701 | BOLT | |
| 12 | S5102603 | WASHER;SPRING M10 | |
| 13 | S5010613 | WASHER;PLAIN | |
| 14 | 500-00405B | SOL V/V ELECTRIC ASSY | |
| 14-1 | K1007428B | HARNESS, JOINT | |
| 14-2 | K1003652 | PLATE | |
| 14-3 | 2195-3500 | BRACKET;HOUSING | |
| 14-4 | S3450953 | SCREW M6X1.0X12 | |
| 14-5 | S5102303 | WASHER;SPRING M6 | |
| 14-6 | K1011186 | DECAL | |
| 14-7 | 2197-1661 | BRACKET;HOUSING W9 | |
| 14-8 | K1001029 | BOLT | |
| 15 | S0508653 | BOLT M8X1.25X16 | |
| 16 | S5102503 | WASHER;SPRING | |
| 17 | S5010513 | WASHER;PLAIN M8 | |
| 19 | 2195-3500 | BRACKET;HOUSING | |
| 19 | 2195-3500 | BRACKET;HOUSING | |
| 20 | S3450953 | SCREW M6X1.0X12 | |
| 20 | S3450953 | SCREW M6X1.0X12 | |
| 21 | S5102303 | WASHER;SPRING M6 | |
| 21 | S5102303 | WASHER;SPRING M6 | |
| 22 | K1001029 | BOLT | |
| 23 | 124-00208D2 | CLIP D14/M8 | |
| 24 | 124-00208D3 | CLIP D20/M8 | |
| 25 | 124-00208D4 | CLIP D26/M8 | |
| 26 | 124-00208D5 | CLIP D32/M8 | |
| 27 | 2197-1660 | BRACKET;HOUSING W15 | |
| 28 | 2197-1661 | BRACKET;HOUSING W9 | |
| 33 | K1007437A | COVER | |
| 101 | 310207-04414 | HARNESS, JOINT |
