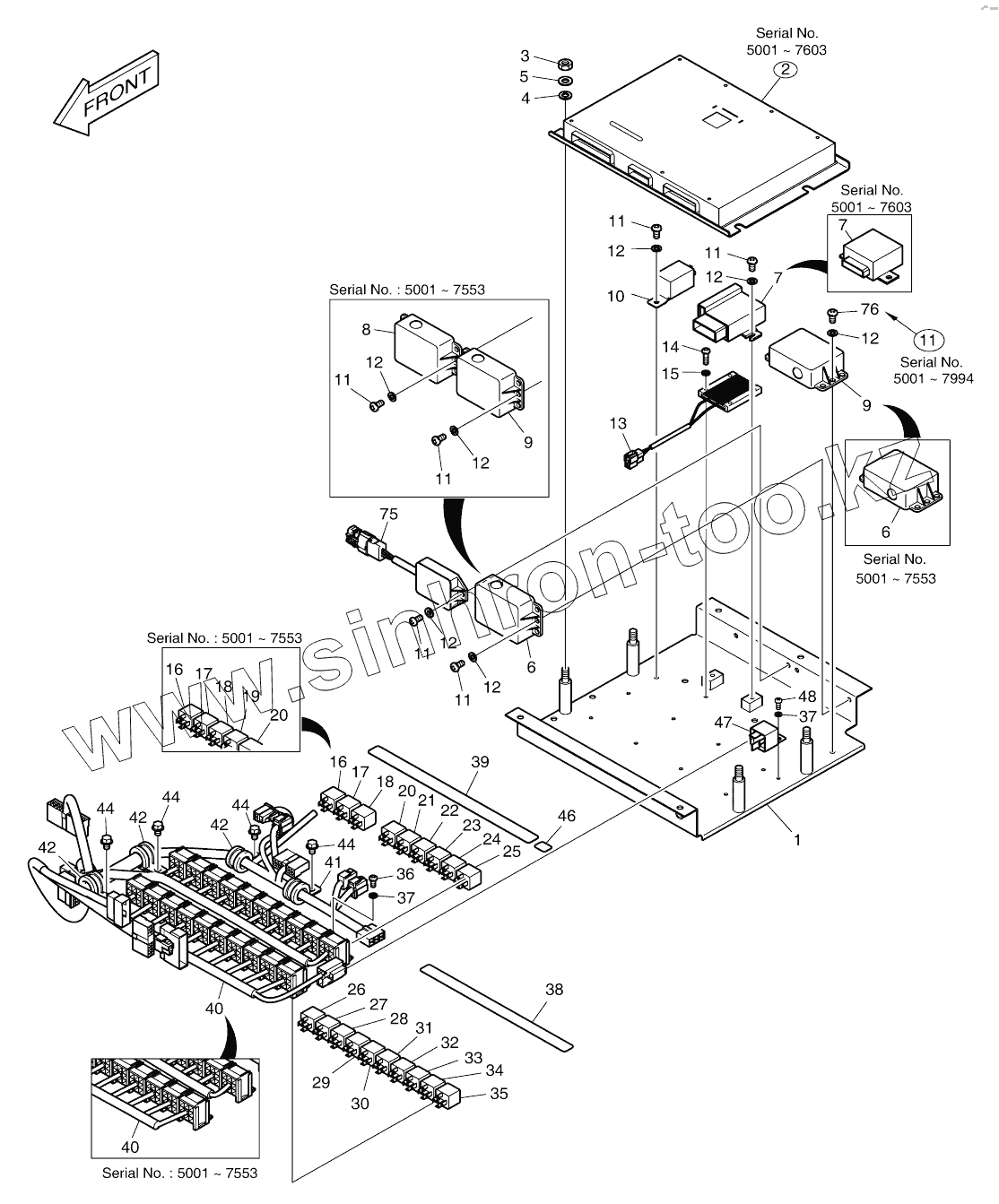

Каталог запасных частей к технике: Doosan DX140W. ELECTRIC BOX ASSY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
500-00320K
500-00320J
300619-02578C
300619-02578A
300619-02578
300619-00318E
300619-00318B
300619-00318C
300619-00318
300619-00318A
1
2
2
2
3
4
5
6
6
6
6
7
7
7
7
7
7
8
9
9
9
9
9
9
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
14
15
16
16
17
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
37
37
37
37
38
39
39
40
40
40
40
40
40
40
40
41
42
42
42
44
44
44
44
46
46
47
48
75
76
Позиция на иллюстрации Заводской номер детали Название детали
500-00320K 500-00320K ELECTRIC ASSY-ELEC BOX
500-00320J 500-00320J ELECTRIC ASSY-ELEC BOX
300619-02578C 300619-02578C ELECTRIC ASSY, E-BOX, MECH
300619-02578A 300619-02578A ELECTRIC ASSY, ELEC BOX
300619-02578 300619-02578 ELECTRIC ASSY, ELEC BOX
300619-00318E 300619-00318E ELECTRIC ASSY, ELEC BOX
300619-00318B 300619-00318B ELECTRIC ASSY, ELEC BOX
300619-00318C 300619-00318C ELECTRIC ASSY, ELEC BOX
300619-00318 300619-00318 ELECTRIC ASSY, ELEC BOX
300619-00318A 300619-00318A ELECTRIC ASSY, ELEC BOX
1 K1002280B PLATE, ELECTRIC BOX
2 543-00110A CONTROLLER, e-EPOS
2 543-00110B CONTROLLER, e-EPOS
2 300611-00043 CONTROLLER, EPOS
3 S4012633 NUT M10X1.5
4 S5102603 WASHER;SPRING M10
5 S5010613 WASHER;PLAIN
6 2543-9015 STARTER;CONTROLLER
6 300611-00704 Controller, starter
7 543-00106 CONTROLLER, WIPER
7 300611-00271 CONTROLLER, WIPER MOTOR
7 300611-00271A CONTROLLER, WIPER
8 2531-1003 CONVERTER;DC-DC (2)
9 2531-1003 CONVERTER;DC-DC (2)
9 300612-00001A CONVERTER, DC
9 300612-00001B CONVERTER, DC
10 2525-1011 Unit, blinker
10 300609-00030 Control unit, blinker
11 S3450953 SCREW M6X1.0X12
11 S3450953 SCREW M6X1.0X12
11 S3450953 SCREW M6X1.0X12
11 S3450953 SCREW M6X1.0X12
12 S5102303 WASHER;SPRING M6
12 S5102303 WASHER;SPRING M6
12 S5102303 WASHER;SPRING M6
13 545-00011 RESISTOR, AUXILIARY
14 S3450863 SCREW
15 S5100203 WASHER;SPRING
16 2544-9033 RELAY
17 2544-9033 RELAY
18 2544-9033 RELAY
19 2544-9033 RELAY
20 2544-9033 RELAY
21 2544-9033 RELAY
22 2544-9033 RELAY
23 2544-9033 RELAY
24 2544-9033 RELAY
25 2544-9033 RELAY
26 2544-9033 RELAY
27 2544-9033 RELAY
28 2544-9033 RELAY
29 2544-9033 RELAY
30 2544-9033 RELAY
31 2544-9033 RELAY
32 2544-9033 RELAY
33 2544-9033 RELAY
34 2544-9033 RELAY
35 2544-9033 RELAY
36 S3450823 SCREW M5X0.8X10
37 S5100203 WASHER;SPRING
37 S5100203 WASHER;SPRING
38 190-01198D1 PLATE, NAME
39 190-01198D3 PLATE, NAME
39 190-01198D16 PLATE, NAME, RELAY
40 530-00423G HARNESS, ELECTRIC BOX
40 310207-01080 HARNESS, ELECTRIC BOX
40 310207-01080A HARNESS, ELECTRIC BOX
40 310207-01080C HARNESS, ELECTRIC BOX
41 124-00208D2 CLIP D14/M8
42 124-00208D3 CLIP D20/M8
44 K1001029 BOLT
46 190-01192D8 PLATE, NAME
46 K1052850D22 PLATE, NAME, RELAY
47 301202-00042 Relay
48 S3450833 SCREW M5X0.8X12
75 300619-02309A ELECTRIC UNIT, TIME DELAY
76 S3450973 SCREW M6X1.0X16
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
