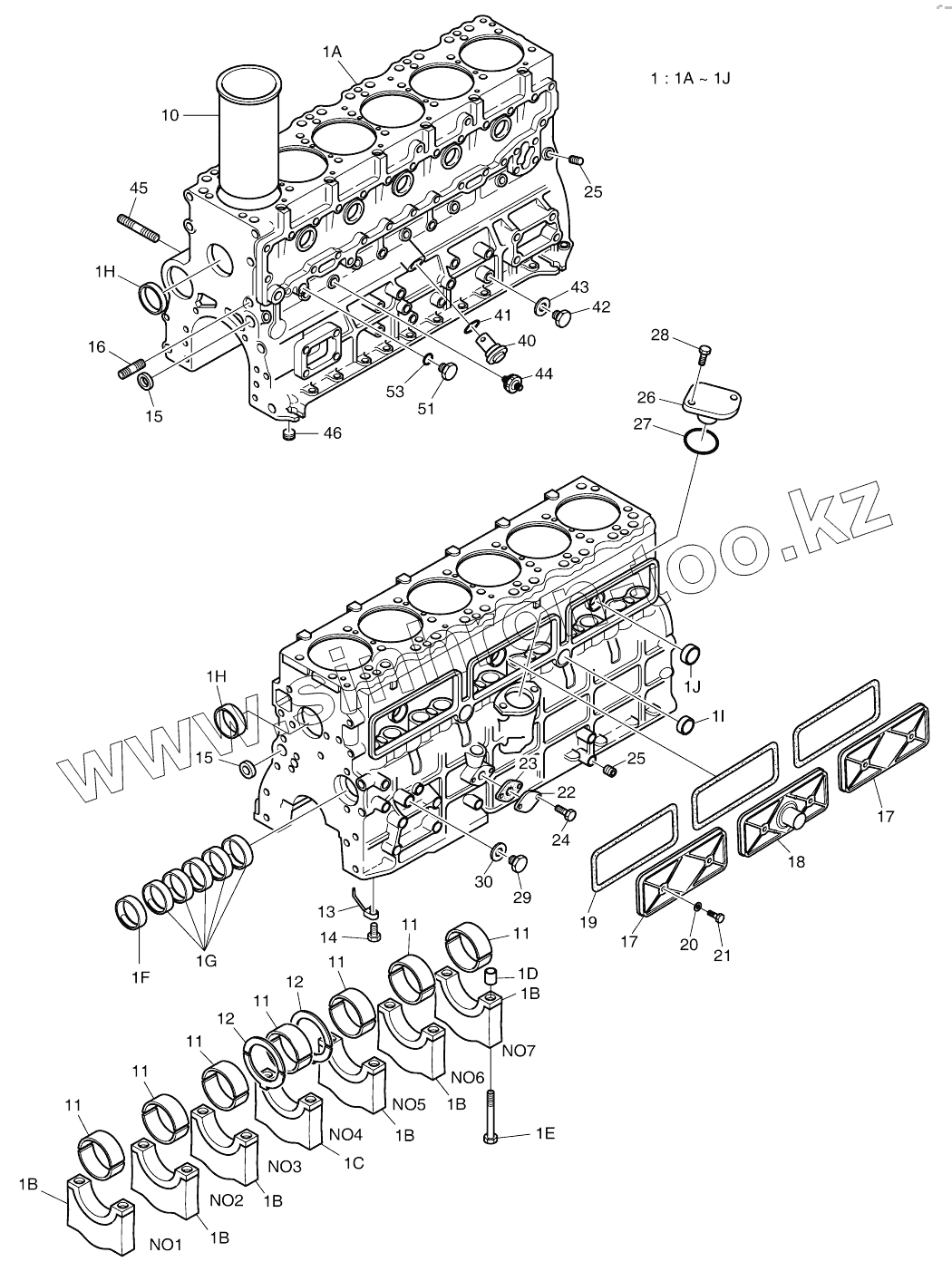

Каталог запасных частей к технике: Doosan DX140W. CYLINDER BLOCK

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1A
1A
1B
1B
1B
1B
1B
1B
1C
1D
1E
1E
1F
1F
1G
1H
1H
1I
1J
1J
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
13
14
15
15
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
40
40
41
42
43
44
45
46
51
53
Позиция на иллюстрации Заводской номер детали Название детали
1 65.01101-6079D Cylinder block assy
1 150102-00483A Cylinder block assy
1A 65.01101-0030I Block, cylinder
1B 65.01105-1048A Cap, bearing
1C 65.01105-1047A Cap, bearing
1D 65.91710-0001 RING;STOPPER
1E 65.90020-0066A BOLT;HEX.
1E 120112-01340 Bolt
1F 65.04410-0007C BUSH;CAM SHAFT
1F 65.04410-0007D Bush, cam shaft
1G 65.04410-0006C BUSH;CAM SHAFT
1H 65.90302-0009 PLUG;CORE
1I 65.90302-0041 Plug
1J 65.90302-0042 PLUG;CORE
10 65.01201-0067 LINER;CYLINDER (ALTV.)
10 65.01201-0068 LINER;CYLINDER(1A)
10 65.01201-0069 LINER;CYLINDER(1B)
10 65.01201-0070 LINER;CYLINDER(2A)
10 65.01201-0071 LINER;CYLINDER(2B)
11 65.01110-6090B METAL;CRANK STD
11 65.01110-6091B METAL;CRANK 0.25
11 65.01110-6092B METAL;CRANK 0.50
12 65.01150-6008 Washer, thrust
12 65.01150-6034A WASHER;THRUST 0.25
12 65.01150-6035A WASHER;THRUST 0.50
13 65.01601-5010A OIL JET PIPE
14 65.05401-5023 RELIEF VALVE ASS'Y
15 06.15091-0313 PLUG;CORE
16 65.90201-0058 BOLT;STUD M14X12.5X45
17 65.01112-0021A COVER;PUSH ROD CHAMBER
18 65.01112-5018 COVER;PUSH ROD CHAMBER
19 65.01901-0020 GASKET;PUSH ROD CHAMBER
20 65.96507-0007 PACKING;PUSH ROD CHAMBER
21 65.90020-0049 BOLT;HEX.
22 65.91615-0011 COVER;BLIND
23 65.05903A0013 GASKET;FLANGE
24 06.01913-3113 Bolt
25 65.90320-0022 Screw
26 65.91605-0001E COVER
27 06.56021-0106 O-RING;O/P DRIVE FLANGE
28 06.01913-3113 Bolt
29 65.90310-0135 Screw
30 06.56190-0706 Ring
40 65.05401-5002F RELIEF VALVE ASS'Y
40 65.05401-5002G Relief valve
41 06.56021-0102 O-RING;RELIEF VALVE
42 65.90310-0030 SCREW;PLUG M12X1.25
43 06.56190-0704 Ring
44 65.27441-7006 SWITCH;OIL PRESS.
45 65.90201-0182 BOLT;STUD
46 65.90320-0019 PLUG;SCREW
51 65.90310-0122 Plug, drain
53 06.56190-0713 Ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
