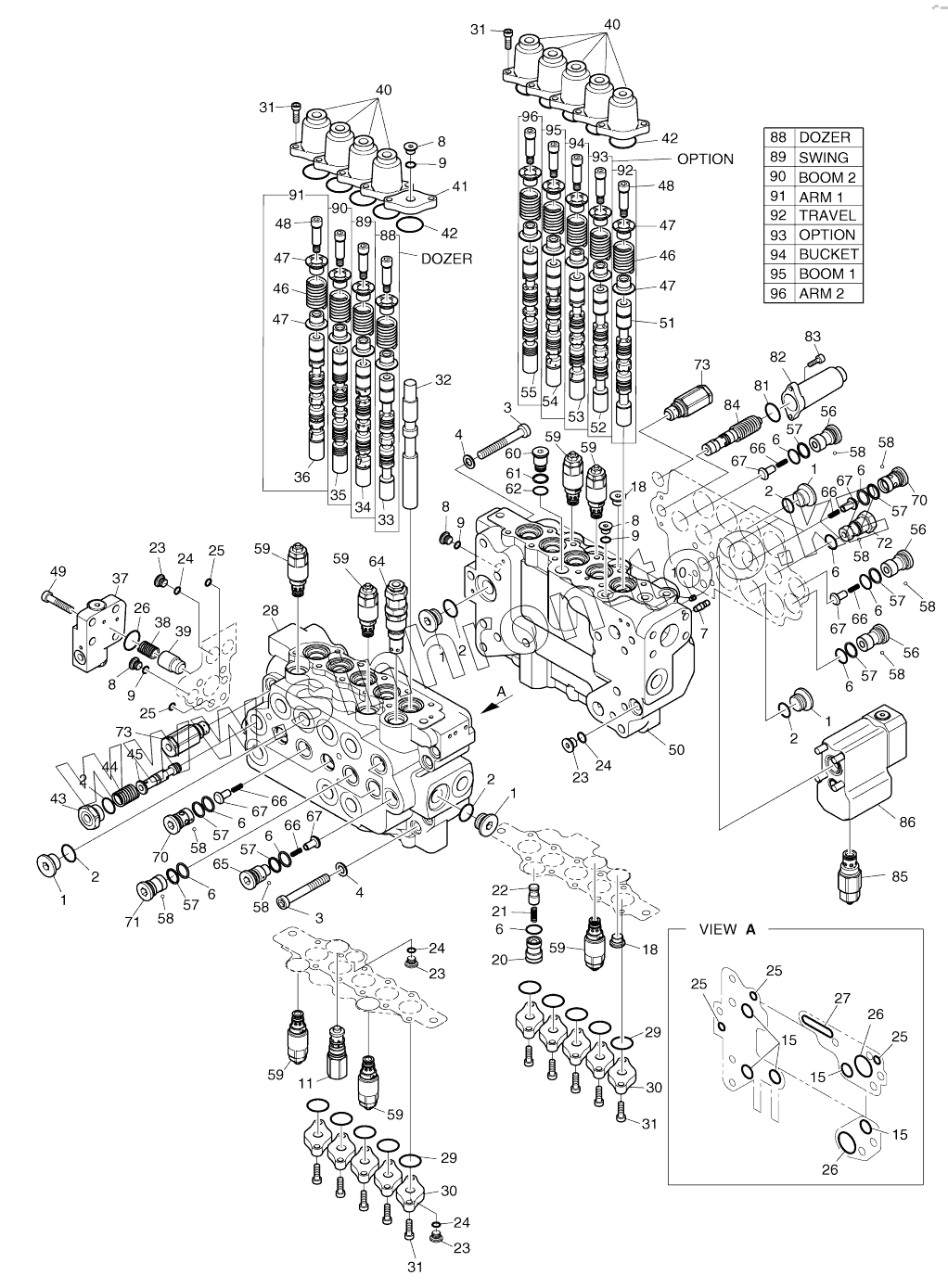

Каталог запасных частей к технике: Doosan DX140W. CONTROL VALVE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
410105-00077
K1003637G
410105-00077A
1
1
1
1
1
2
2
2
2
2
2
3
3
4
4
6
6
6
6
6
6
6
6
6
7
8
8
8
8
9
9
9
9
10
11
15
15
15
18
18
20
21
22
23
23
23
23
23
24
24
24
25
25
25
25
25
26
26
26
27
28
29
29
30
30
31
31
31
31
32
33
34
35
36
37
38
39
40
40
41
42
42
43
44
45
46
46
47
47
47
47
48
48
49
50
51
52
53
54
55
56
56
56
57
57
57
57
57
57
57
58
58
58
58
58
58
58
58
59
59
59
59
59
59
59
60
61
62
64
65
66
66
66
66
66
67
67
67
67
67
70
70
71
72
73
73
81
82
83
84
84
85
86
86
88
89
90
91
92
93
94
95
96
Позиция на иллюстрации Заводской номер детали Название детали
410105-00077 410105-00077 CONTROL VALVE ASSY
K1003637G K1003637G VALVE, CONTROL
410105-00077A 410105-00077A CONTROL VALVE ASSY
1 2430-1067 CAP
2 S8000231 O-RING
3 S2266461 BOLT;SOCKET
4 S5110701 WASHER;SPRING
6 S8000211 O-RING
7 2415-1012A ORIFICE
8 2430-1051 CAP
9 S8000111 O-RING
10 2181-2432 Expander
11 2420-1229 Regeneration valve assy, arm
15 S8000181 O-RING
18 181-00111 PLUG ASS'Y
20 2430-1083 CAP
21 2129-1373 SPRING
22 2420-1175 CHECK
23 2430-1058 CAP
24 S8000141 O-RING
25 S8000101 O-RING
26 S8000291 O-RING
27 2180-1223 O-RING
28 423-00124A HOUSING, LEFT
29 2180-1222 O-RING
30 2229-1065 RETAINER
31 S2209061 BOLT;SOCKET
32 2424-1139 Spool
33 K1027246 PLUNGER, D
34 424-00136 Plunger, swing
35 K1003725 SPOOL, BOOM 2
36 K1030229 SPOOL, ARM 1
37 2430-1064A AM HOLDING VALVE
38 2129-1397 SPRING
39 2426-1173 POPPET
40 2430-1107 COVER
41 2229-1031 Retainer
42 2180-1217D63 O-RING
43 2430-1081 CAP
44 2129-1401 SPRING
45 2424-1170A SPOOL;BC
46 2129-1469 SPRING;PLAIN
47 2429-1047 GUIDE;SP
48 2430-1106 CAP;PL
49 S2215261 BOLT;SOCKET
50 2423-1529B HOUSING, RIGHT
51 2424-1351A PLUNGER;M51 TRAVEL
52 2424-1135 PLUNGER;D
53 2424-1257 Plunger, c7
54 K1003721 SPOOL ASSY, BOOM 1
55 424-00209 Plunger
56 2430-1040A CAP
57 S8060211 RING;BACK UP
58 2420-1138 CHIP;NYLON
59 2420-1220 O/l relief assy
60 2430-1059 CAP
61 S8000121 O-RING
62 S8060121 RING;BACK UP
64 2420-1225A MAIN RELIEF ASS'Y
65 2430-1085A CAP
66 2129-1374 SPRING
67 K1003726 CHECK, LOAD
70 2430-1086A CAP
71 2430-1084 CAP
72 K1012206 CAP
73 2420-1131 FOOT RELIEF ASS'Y
81 2180-1217D24 O-ring
82 2430-1056A CAP
83 S2204861 BOLT;SOCKET M6X60
84 K1003716 VALVE, BOOM PRIORITY
84 K1003716A VALVE, BOOM PRIORITY
85 2420-1226 OVER LOAD RELIEF ASS'Y
86 410111-00261 BM HOLDING VALVE ASSY
86 2420-1209A BM HOLDING VALVE
88 K1027247 PLUNGER ASSY
89 2424-1281B Plunger
90 2424-1277E PLUNGER
91 K1030230 PLUNGER
92 2424-1283 Plunger, m3 assy
93 2424-1282 PLUNGER;D ASS'Y
94 2424-1280 Plunger, c7 assy
95 2424-1276F PLUNGER
96 2424-1279C Plunger
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
