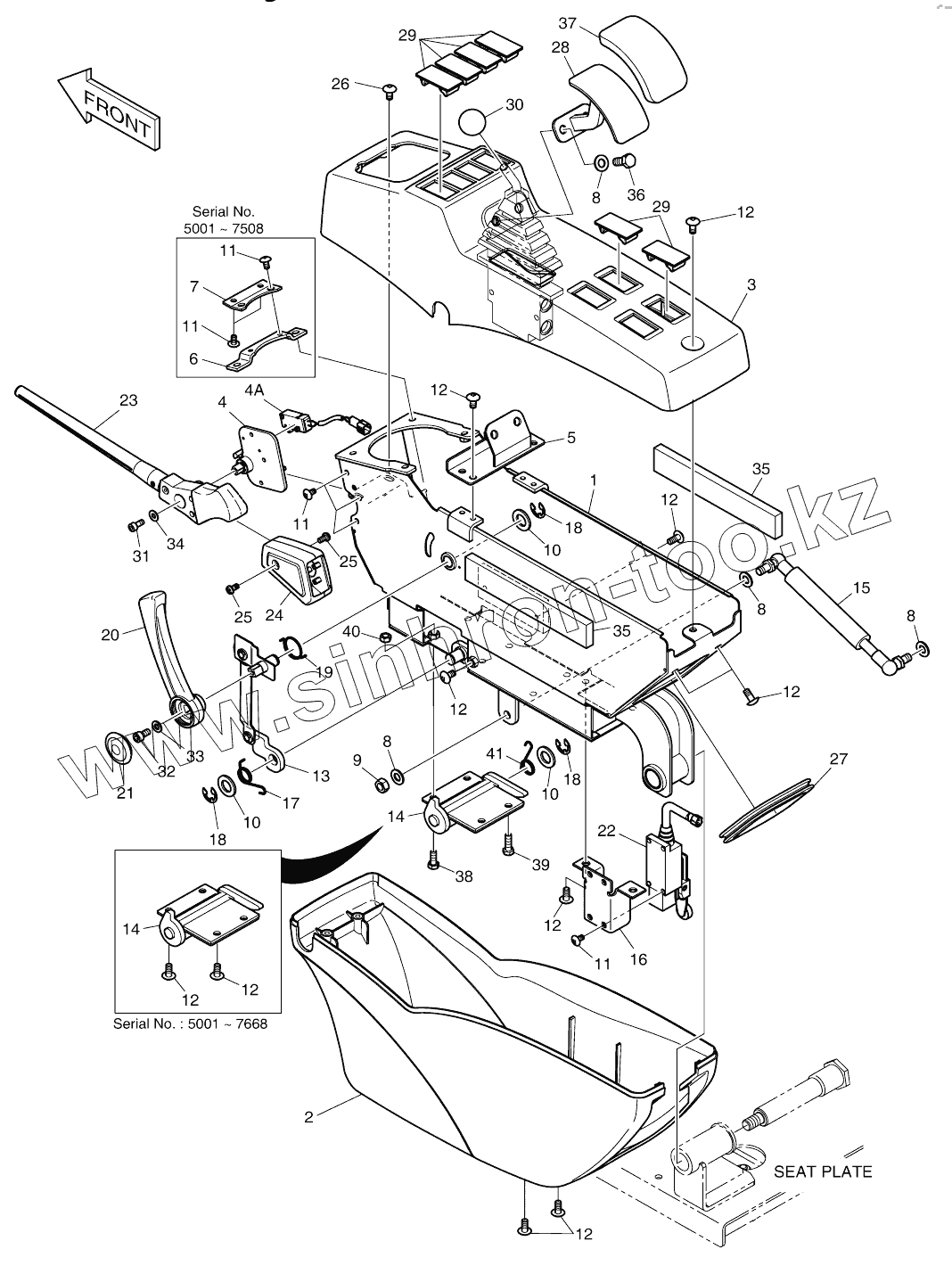

Каталог запасных частей к технике: Doosan DX140W. CONTROL STAND - L.H.
110953-00001
110953-00001B
110953-00001C
110953-00001E
110953-00001G
110953-00001H
1
1
2
2
3
3
3
4
4A
5
6
6
7
7
8
8
8
8
9
10
10
10
11
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
14
14
15
16
17
18
18
18
19
20
20
21
22
22
23
23
23
24
24
25
25
26
27
28
29
29
30
31
32
33
34
35
35
35
35
35
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 110953-00001 | 110953-00001 | STAND ASSY | |
| 110953-00001B | 110953-00001B | STAND ASSY | |
| 110953-00001C | 110953-00001C | STAND ASSY | |
| 110953-00001E | 110953-00001E | STAND ASSY | |
| 110953-00001G | 110953-00001G | STAND ASSY | |
| 110953-00001H | 110953-00001H | STAND ASSY | |
| 1 | K1017689 | BRACKET, L.H. | |
| 1 | 110431-00026A | BRACKET, STAND | |
| 2 | 621-03013C | COVER | |
| 2 | 220204-00279 | COVER, STAND | |
| 3 | K1023602A | COVER | |
| 3 | 110508-00833 | COVER | |
| 3 | 110508-00833A | COVER | |
| 4 | 195-02868C | BRACKET, SAFETY | |
| 4A | 549-00089 | SWITCH, MICRO | |
| 5 | K1017770 | BRACKET | |
| 6 | 159-00290A | PLATE | |
| 6 | 159-00290B | PLATE | |
| 7 | 159-00287A | PLATE, COVER MOUNT | |
| 7 | 159-00287B | PLATE, COVER MOUNT | |
| 8 | 2114-1898D14 | WASHER | |
| 9 | 2121-1311D2 | NUT M8X1.25 | |
| 10 | 2114-1898D6 | Washer | |
| 11 | 2120-2166D53 | SCREW | |
| 11 | 2120-2166D53 | SCREW | |
| 12 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 12 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 13 | 195-02921G | BRACKET, LOCKER | |
| 14 | 195-02920B | BRACKET, LOCKER | |
| 15 | DS1001045 | SPRING;GAS | |
| 16 | 621-01951 | COVER;MICRO SWITCH | |
| 17 | 111601-00511 | SPRING, COIL | |
| 18 | S6541000 | RING, RETAINING | |
| 19 | K1001437A | SPRING | |
| 20 | K1000839A | LEVER | |
| 20 | 101101-00291 | LEVER | |
| 21 | K1000841 | COVER | |
| 22 | 549-00046 | SWITCH;MICRO | |
| 22 | 301411-00030 | SWITCH, LIMIT, PILOT CUT OFF | |
| 23 | K1000840 | LEVER | |
| 23 | K1000840A | LEVER | |
| 23 | 101101-00289 | LEVER | |
| 24 | K1000842A | COVER | |
| 24 | 110508-15900 | COVER | |
| 25 | S3450823 | SCREW M5X0.8X10 | |
| 26 | 2120-2166D52 | BOLT | |
| 27 | K1001023 | STRIP, WEATHER | |
| 28 | K1017771 | BRACKET | |
| 29 | 621-02801 | COVER, SWITCH | |
| 30 | 132-00021 | Grip | |
| 31 | S2202966 | BOLT, SOCKET | |
| 32 | S2204466 | BOLT | |
| 33 | 2114-1898D3 | WASHER | |
| 34 | 2114-1898D4 | WASHER;PLAIN M5 | |
| 35 | K1010466 | FOAM | |
| 35 | 180102-00908 | FOAM | |
| 36 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 37 | K1023960 | RUBBER | |
| 38 | 2120-2166D6 | BOLT M6X1.0X16 | |
| 39 | 2120-2166D36 | BOLT M6X1.0X20 | |
| 40 | S4012333 | NUT M6X1.0 | |
| 41 | 111601-00562 | SPRING, COIL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
