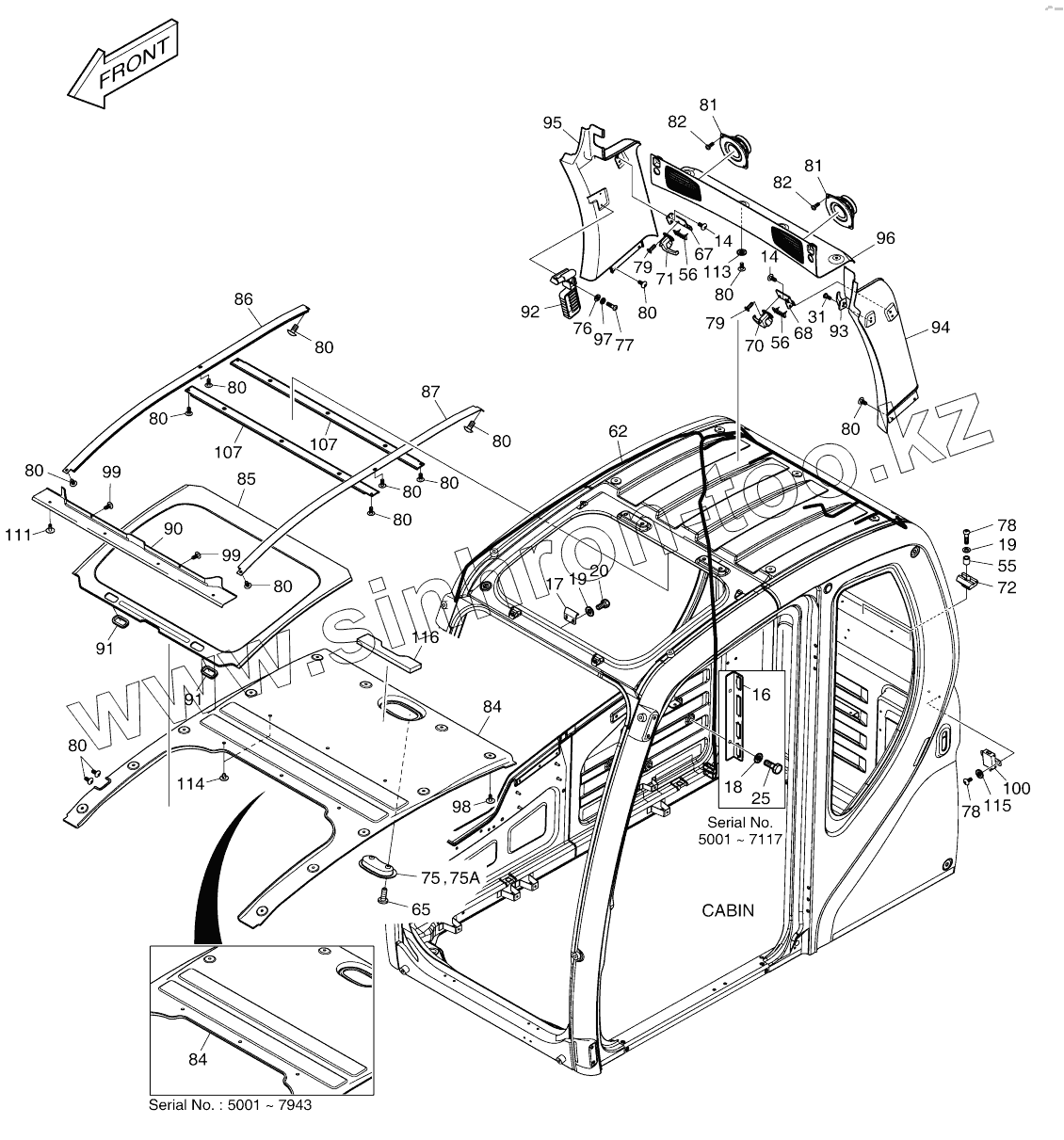

Каталог запасных частей к технике: Doosan DX140W. CABIN (3)
14
14
16
17
18
19
19
20
25
31
55
56
56
62
62
65
67
68
70
71
72
75
75A
76
77
78
78
79
79
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
81
81
81
81
82
82
84
84
84
84
84
84
85
85
86
86
87
87
90
90
90
91
91
92
93
94
94
95
95
96
96
97
98
99
99
100
107
107
107
107
107
107
111
113
114
114
115
116
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 622-00351K | 622-00351K | CABIN ASS`Y | |
| 622-00351M | 622-00351M | CABIN ASS`Y | |
| 220101-00192A | 220101-00192A | CABIN ASSY | |
| 220101-00192B | 220101-00192B | CABIN ASSY | |
| 220101-00192G | 220101-00192G | CABIN ASSY | |
| 220101-00192H | 220101-00192H | CABIN ASSY | |
| 220101-00192K | 220101-00192K | CABIN ASSY | |
| 220101-00192L | 220101-00192L | CABIN ASSY | |
| 220101-00192M | 220101-00192M | CABIN ASSY | |
| 220101-00201N | 220101-00201N | CABIN ASSY | |
| 220101-00201P | 220101-00201P | CABIN ASSY | |
| 220101-00201R | 220101-00201R | CABIN ASSY | |
| 14 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 16 | 191-03179A | PLATE, CONNECTOR | |
| 17 | 191-03166C | STRIKER PLATE ROOF | |
| 18 | 2114-1898D14 | WASHER | |
| 19 | 2114-1898D3 | WASHER | |
| 20 | 2120-2166D28 | BOLT | |
| 25 | 2120-2166D12 | Bolt | |
| 31 | 2120-2166D7 | SCREW M6X1.0X14 | |
| 55 | 2140-1338 | PIPE;SPACER | |
| 56 | K1000794 | STOPPER, RUBBER | |
| 62 | 530-00417B | HARNESS, CABIN | |
| 62 | 310207-03423 | HARNESS, CABIN SUB | |
| 65 | S3458843 | SCREW | |
| 67 | 621-03113B | PLATE, STOPPER | |
| 68 | 621-03114B | PLATE, STOPPER | |
| 70 | 125-00077 | LOCK, REAR GLASS | |
| 71 | 125-00078 | LOCK, REAR GLASS | |
| 72 | 2161-2212 | STOPPER;RUBBER | |
| 75 | 534-00079 | ROOM LAMP | |
| 75A | 2515-1021D1 | Bulb | |
| 76 | 2114-1898D13 | Washer | |
| 77 | 2120-2166D26 | SCREW | |
| 78 | S3450993 | SCREW M6X1.0X25 | |
| 79 | S3452853 | SCREW M5X0.8X16 | |
| 80 | 2120-2166D52 | BOLT | |
| 80 | 2120-2166D52 | BOLT | |
| 81 | 2541-9020 | SPEAKER | |
| 81 | 300652-00014 | Speaker | |
| 82 | S3450833 | SCREW M5X0.8X12 | |
| 84 | 161-00609E | PAD, ROOF REAR | |
| 84 | 101555-00246 | PAD, ROOF | |
| 84 | 101555-00246A | PAD, ROOF | |
| 85 | 161-00610E | PAD, ROOF CENTER | |
| 85 | 101555-00247 | PAD, ROOF | |
| 86 | 359-00022A | RAIL, ROOF PANEL | |
| 86 | 150120-00035 | RAIL, ROOF | |
| 87 | 359-00021A | RAIL, ROOF PANEL | |
| 87 | 150120-00034 | RAIL, ROOF | |
| 90 | 161-00613B | PAD, ROOF FRONT | |
| 90 | 161-00613C | PAD, ROOF FRONT | |
| 90 | 101555-00248 | PAD, ROOF FRONT | |
| 91 | 172-00055A | HANDLE, ROOF | |
| 92 | 2199-9058 | HAMMER | |
| 93 | 2150-1133 | HOOK;COAT | |
| 94 | 621-02910C | COVER, PILLAR | |
| 94 | 110508-15914 | COVER, PILLAR | |
| 95 | 621-02911C | COVER, PILLAR | |
| 95 | 110508-15916 | COVER, PILLAR | |
| 96 | 621-02912B | COVER, REAR UPPER | |
| 96 | 110508-15917 | COVER, SPEAKER | |
| 97 | 2114-2031D1 | WASHER | |
| 98 | K1006936 | SCRIVET | |
| 99 | 2120-2166D18 | SCREW M5X0.8X10 | |
| 100 | K1002641 | MODULE ASSY | |
| 107 | K1003676B | PLATE | |
| 107 | 250201-02874 | PLATE, ROOF | |
| 111 | 2120-2166D53 | SCREW | |
| 113 | 2114-1898D5 | WASHER;PLAIN M6 | |
| 114 | K1006933 | SCRIVET | |
| 114 | K1006933 | SCRIVET | |
| 115 | S5010313 | WASHER;PLAIN | |
| 116 | K1010839 | FORM |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
