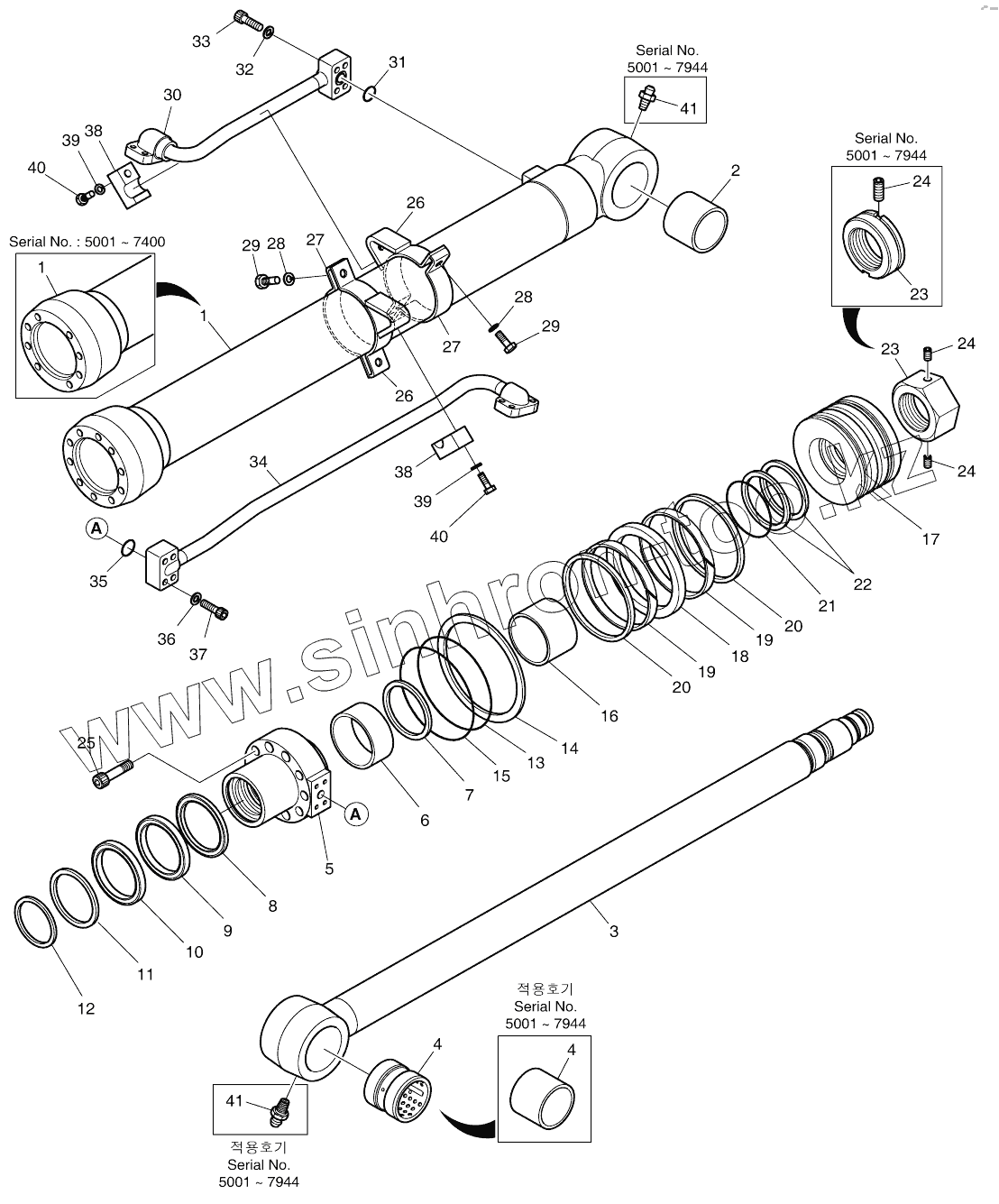

Каталог запасных частей к технике: Doosan DX140W. BUCKET CYLINDER (55001 ~ 8191)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
K9002307
K9002307
1
1
2
3
3
4
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
23
23
23
23
23
24
24
24
24
24
24
24
24
25
25
26
26
27
27
28
28
29
29
30
31
32
33
34
35
36
37
38
38
39
39
40
40
41
41
Позиция на иллюстрации Заводской номер детали Название детали
440-00411C 440-00411C CYLINDER, BUCKET
K9002307 K9002307 SEAL KIT, BUCKET
400310-00388 400310-00388 CYLINDER, BUCKET
440-00411B 440-00411B CYLINDER, BUCKET
1 K9001419 TUBE ASSY
1 420406-00063 TUBE ASSY
2 K1004106 BUSH, ROLLED
3 K9001421A ROD ASSY
3 400337-00635 ROD, CYLINDER
4 131004-00022A BUSHING, CARBURIZING
4 K1004106 BUSH, ROLLED
5 110508-00314 COVER, ROD
5 K9001423 COVER, ROD
6 1.110-00068 DD-BUSH
7 1.115-00032 RING, RETAINING
8 K9001424 SEAL, BUFFER
9 K9001425 U-PACKING
10 K9001426 RING, BACK UP
11 1.180-00496 WIPER, DUST
12 115-00052 RING, RETAINING
13 S8010901 O-RING
14 K9001427 RING, BACK UP
15 S8010951 O-RING
16 K9001428 RING, CUSHION
17 K9001429 PISTON
18 K9001430 SEAL, SLIPPER
19 1.180-00415 RING, WEAR
20 K9001431 RING, DUST
21 1.180-00117 O-RING
22 K9001374 BACK UP RING
23 120312-00267A NUT, PISTON
23 K9001375 NUT, PISTON
24 S3523836 Screw, set
24 S3523836 Screw, set
25 S2218961 BOLT
25 S2218961 BOLT
26 K9001432 PIPE BAND ASSY
27 1.124-00010 BAND, PIPE
28 S5100603 WASHER;SPRING
29 S0558153 BOLT M10X1.5X30
30 K9001433 PIPE ASSY-H
31 S8000201 O-RING
32 S5100503 WASHER
33 S2209561 BOLT
34 K9001434 PIPE ASSY-R
35 S8000201 O-RING
36 S5100503 WASHER
37 S2209561 BOLT
38 K9001435 CLAMP, PIPE
39 S5100603 WASHER;SPRING
40 S0558553 BOLT, HEX.
41 S6710032 NIPPLE;GREASE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
