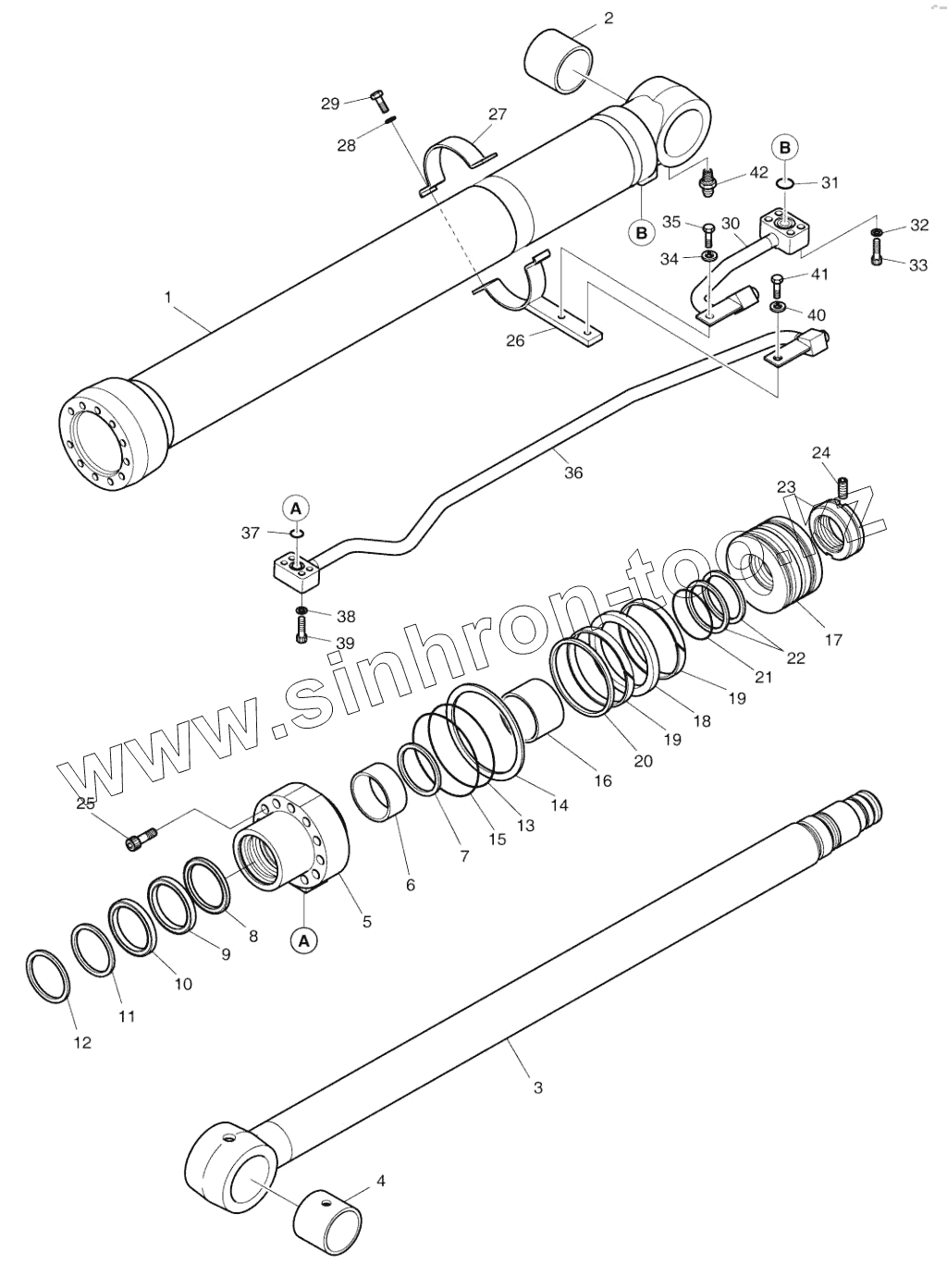

  5. BOOM CYLINDER - R.H. (8192 ~ )

Каталог запасных частей к технике: Doosan DX140W. BOOM CYLINDER - R.H. (8192 ~ )

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
400309-01167
K9002306
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Позиция на иллюстрации Заводской номер детали Название детали
400309-01167 400309-01167 CYLINDER, BOOM, RH
K9002306 K9002306 SEAL KIT
1 K9001381-DG TUBE ASSY, CYLINDER
2 110-00244 BUSH
3 K9001383-DG ROD, CYLINDER
4 110-00244 BUSH
5 110508-23664A-DG COVER, ROD
6 110-00082 DD-BUSH
7 115-00052 RING, RETAINING
8 SEAL, BUFFER SEAL, BUFFER
9 U-PACKING U-packing
10 RING, BACK UP Ring, back up
11 WIPER, DUST WIPER, DUST
12 115-00050 RING, RETAINING
13 O-RING O-ring
14 RING, BACK UP Ring, back up
15 O-RING O-ring
16 K9001387 RING, CUSHION
17 K9001388 PISTON
18 SEAL, SLIPPER Seal, slipper
19 RING, WEAR RING, WEAR
20 RING, DUST RING, DUST
21 O-RING O-ring
22 RING, BACK UP Ring, back up
23 121-00043 NUT, PISTON
24 S3523836 Screw, set
25 S2219071 BOLT, HEX. SOCKET
26 K9001391-DG BAND, PIPE
27 124-00055-DG BAND, PIPE
28 S5100603 WASHER;SPRING
29 S0558153 BOLT M10X1.5X30
30 420210-02680-DG PIPE ASSY
31 S8000281 O-RING
32 S5100603 WASHER;SPRING
33 S2212761 BOLT;SOCKET
34 S5100603 WASHER;SPRING
35 S0511863 BOLT;HEX.
36 420210-02682-DG PIPE ASSY
37 S8000321 O-ring
38 S4012633 NUT M10X1.5
39 S2209561 BOLT
40 S5100603 WASHER;SPRING
41 S0511863 BOLT;HEX.
42 S6710032 NIPPLE;GREASE
