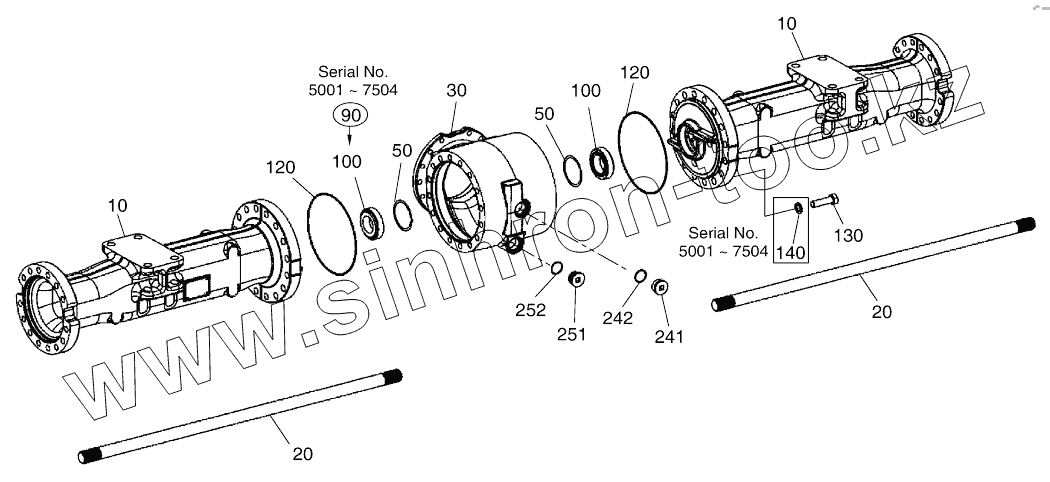

Каталог запасных частей к технике: Doosan DX140W. AXLE CASING - REAR AXLE
10
10
10
10
20
20
20
20
30
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
90
100
100
100
100
120
120
130
130
140
241
242
251
252
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 110913-00081 | CASE, AXLE | |
| 10 | K9001549 | CASING, AXLE | |
| 20 | K9001550 | SHAFT, STUB | |
| 20 | 130712-00277 | SHAFT, STUB | |
| 30 | K9001551 | HOUSING, AXLE | |
| 50 | 1.114-00085 | SHIM | |
| 50 | 1.114-00091 | SHIM | |
| 50 | 2.114-00580 | SHIM | |
| 50 | 1.114-00095 | SHIM | |
| 50 | 1.114-00097 | SHIM | |
| 50 | 1.114-00101 | SHIM | |
| 50 | 1.114-00103 | SHIM | |
| 50 | 1.114-00108 | SHIM | |
| 50 | 1.114-00110 | SHIM | |
| 50 | 1.114-00113 | SHIM | |
| 50 | 1.114-00114 | SHIM | |
| 50 | 1.114-00125 | SHIM | |
| 50 | 1.114-00198 | SHIM | |
| 50 | 1.114-00202 | SHIM | |
| 50 | 1.114-00204 | SHIM | |
| 50 | 1.114-00203 | SHIM | |
| 50 | 1.114-00207 | SHIM | |
| 50 | 1.114-00208 | SHIM | |
| 50 | 1.114-00209 | SHIM | |
| 50 | 1.114-00057 | SHIM | |
| 50 | 1.114-00079 | SHIM | |
| 50 | 1.114-00060 | SHIM | |
| 50 | 1.114-00061 | SHIM | |
| 50 | 2.114-00571 | SHIM | |
| 50 | 1.114-00063 | SHIM | |
| 50 | 1.114-00065 | SHIM | |
| 50 | 1.114-00066 | SHIM | |
| 50 | 2.114-00572 | SHIM | |
| 50 | 2.114-00573 | SHIM | |
| 50 | 2.114-00574 | SHIM | |
| 50 | 2.114-00575 | SHIM | |
| 50 | 1.114-00068 | SHIM | |
| 50 | 1.114-00069 | SHIM | |
| 50 | 1.114-00070 | SHIM | |
| 50 | 2.114-00577 | SHIM | |
| 50 | 1.114-00071 | SHIM | |
| 50 | 1.114-00073 | SHIM | |
| 50 | 1.114-00074 | SHIM | |
| 50 | 2.114-00579 | SHIM | |
| 50 | 1.114-00083 | SHIM | |
| 50 | 2.114-00576 | SHIM | |
| 90 | K9001476 | BEARING, TA.ROLL. | |
| 100 | K9000114 | BEARING, ROLLER | |
| 100 | K9000114 | BEARING, ROLLER | |
| 120 | 2.180-00450 | O-ring | |
| 130 | K9001477 | SCREW | |
| 130 | 1.120-00134 | SCREW, HEXAGON | |
| 140 | 2.114-00867 | Washer | |
| 241 | K9001478 | Plug, screw | |
| 242 | 1.180-00135 | O-ring | |
| 251 | K9001479 | Plug, screw | |
| 252 | 1.180-00135 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
