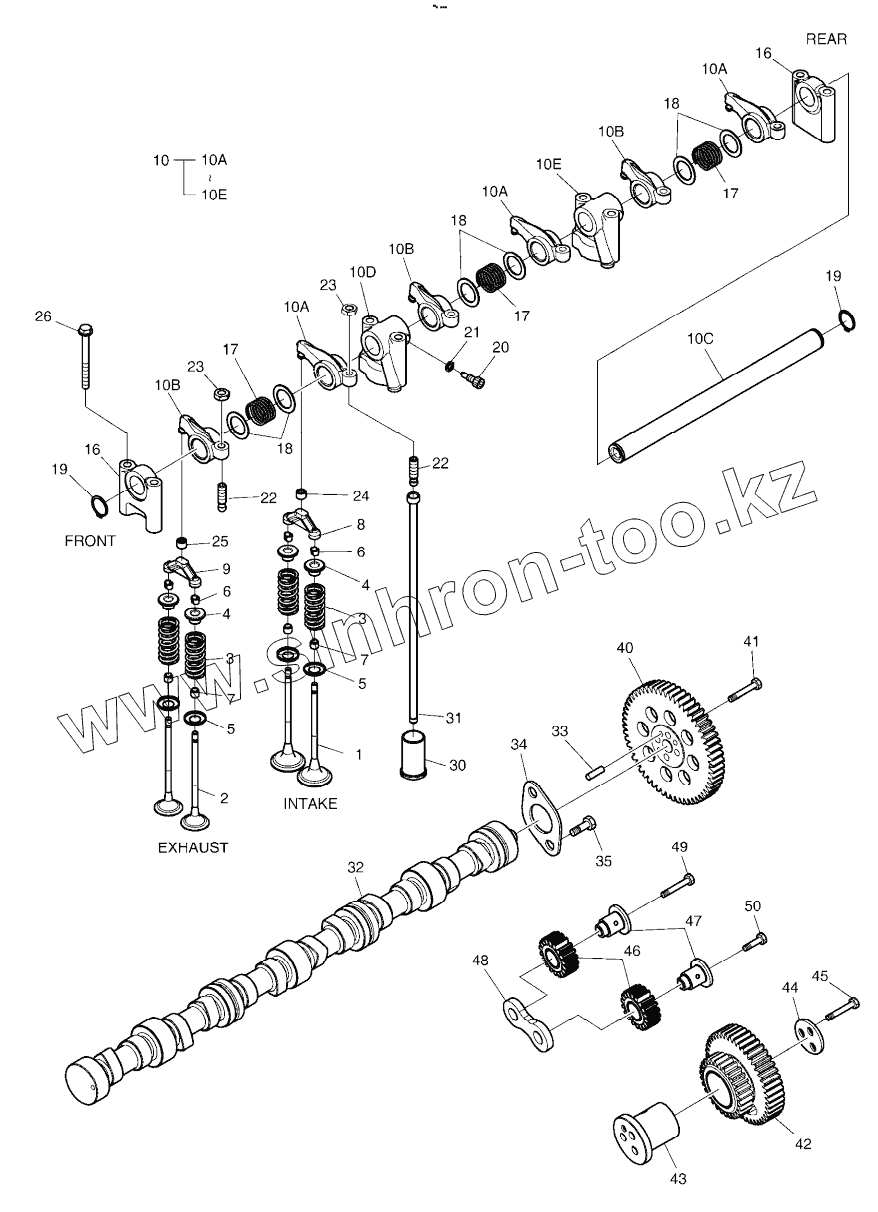

Каталог запасных частей к технике: Doosan DL220. TIMING SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
4
5
5
6
6
7
7
8
9
10
10A
10A
10A
10A
10B
10B
10B
10C
10D
10E
10E
16
16
17
17
17
18
18
18
19
19
20
21
22
22
23
23
24
25
26
30
31
32
33
34
35
40
41
42
43
44
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
1 65.04101-0065B VALVE, INTAKE
2 65.04101-0066B VALVE, EXHAUST
3 65.04102-0024 SPRING, VALVE
4 65.04103-0018 PLATE, VALVE SPRING
5 65.90701-0098 WASHER
6 65.04104-0009 COTTER, VALVE
7 65.04902-0016 SEAL, VALVE STEM
8 65.04130-0009A CALIPER, INTAKE
9 65.04130-0011 CALIPER, EXHAUST
10 65.04200-6038D ROCKER ARM S/F ASSY
10A 65.04201-5042C ROCKER ARM, INTAKE
10B 65.04201-5043C ROCKER ARM, EXHAUST
10C 65.04203-5020A SHAFT, ROCKER ARM
10D 65.04202-0033 BRACKET, ROCKER ARM
10E 65.04202-0034 BRACKET, ROCKER ARM
16 65.04202-0035 BRACKET, ROCKER ARM
17 65.97601-0124 SPRING, COMPESSION
18 65.90701-0136B Washer
19 06.29010-0120 Ring
20 65.90030-0018 BOLT, SOCKET
21 06.16110-0106 Washer
22 65.04205-0014 SCREW, ADJUST
23 65.90501-0003 NUT
24 65.04209-5002 CAP, INTAKE
25 65.04209-0006 CAP, EXHAUST
26 65.90020-0120 BOLT, COLLARED HEX.
30 65.04301-5003C TAPPET, VALVE
31 65.04302-5015 ROD, PUSH
32 150103-00013 CAMSHAFT
33 06.22022-1016 PIN, DOWEL
34 65.90720-0032 WASHER, THRUST
35 06.01913-2911 BOLT;HEXM6X16
40 65.04501-0017 GEAR, CAM SHAFT
41 65.90020-0117 BOLT, COLLARED HEX.
42 65.04505-5018 GEAR, IDLE
43 65.04506-0016 PIN, IDLE GEAR
44 65.90720-0034B WASHER, THRUST
45 65.90020-0118 BOLT, COLLARED HEX.
46 65.11301-5002 GEAR, DRIVE, INJECTION
47 65.04506-0015 PIN, IDLE GEAR
48 65.90720-0033А WASHER, THRUST
49 65.90020-0118 BOLT, COLLARED HEX.
50 65.90020-0119 BOLT, COLLARED HEX.
